Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B220H00S01

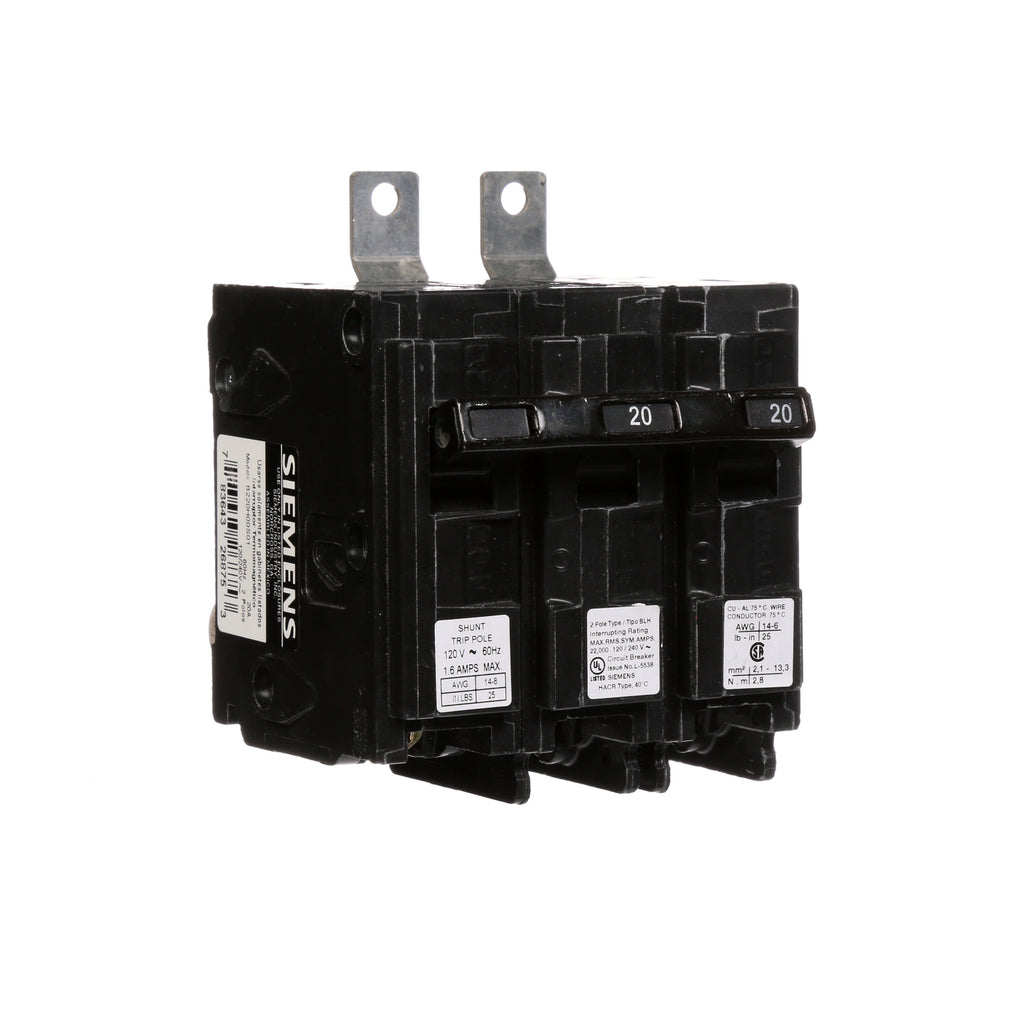

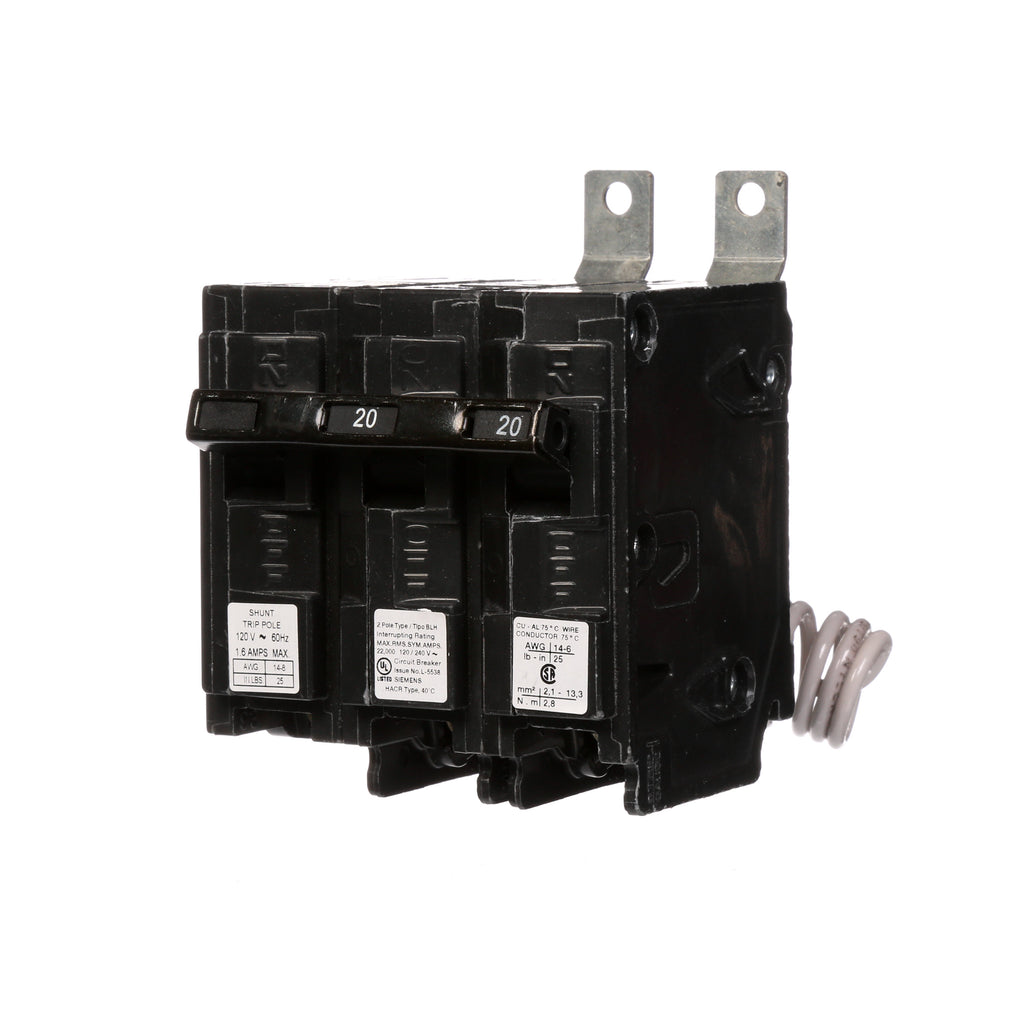

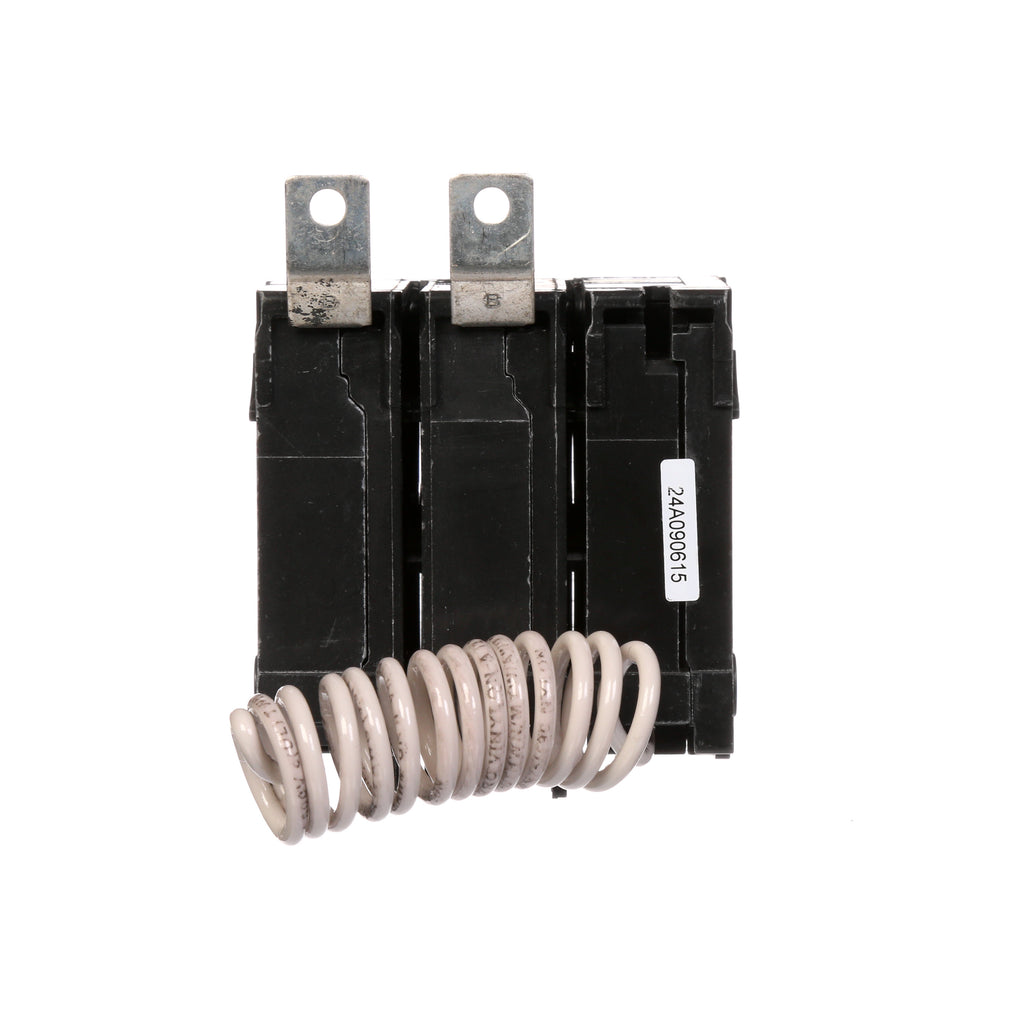

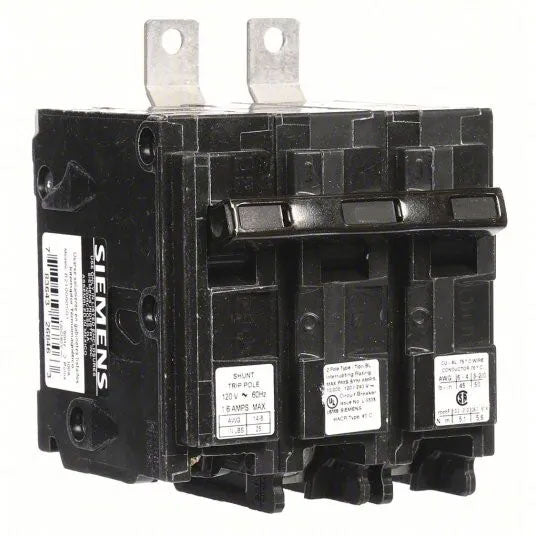

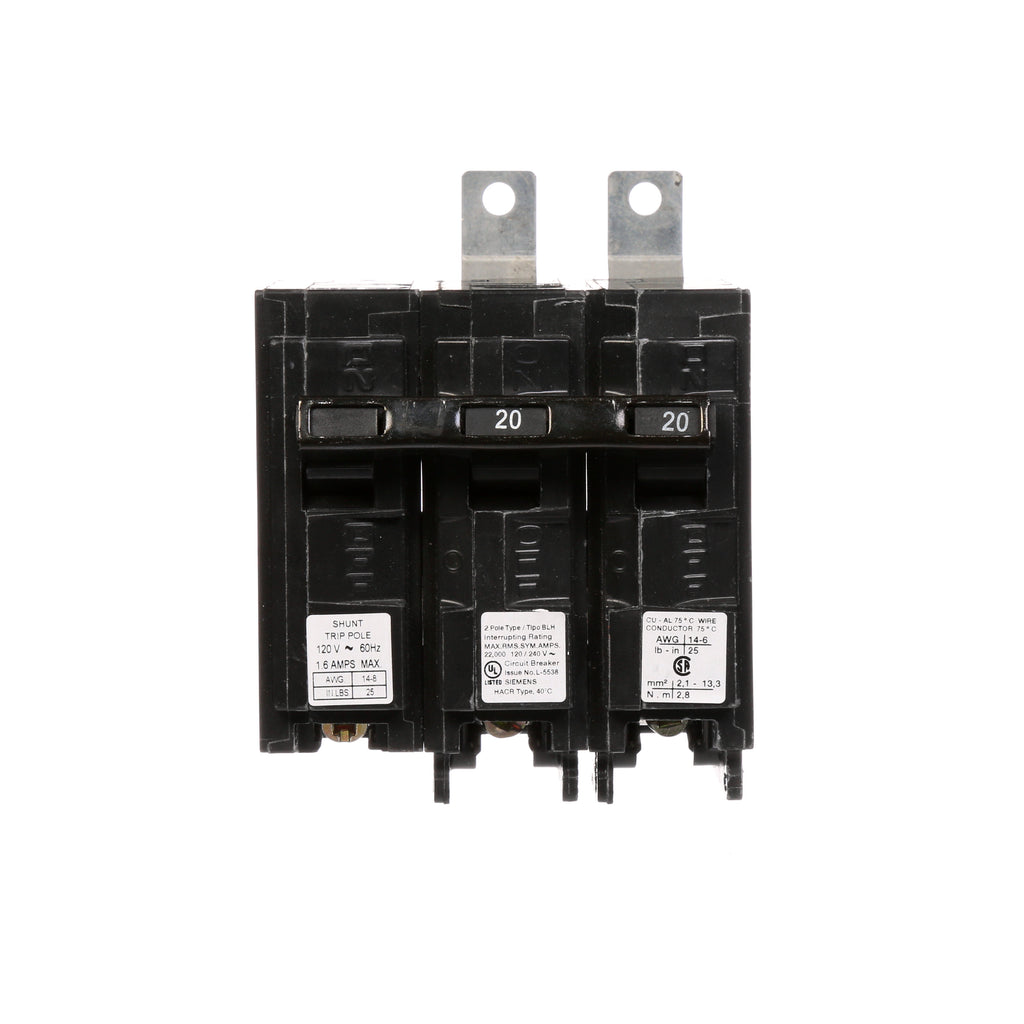

B220H00S01 is a Siemens 2-pole molded case circuit breaker with thermal magnetic trip and factory-installed 120V shunt trip.B220H00S01 belongs to the BLH series with 20A rating, 120/240V AC, bolt-on mounting, and 22kA interrupt rating at 240V. It provides reliable overcurrent protection with shunt trip functionality for remote operation.
- Manufacturer: Siemens
- Amperage: 20A
- Voltage: 120/240V AC
- Poles: 2
- Mounting Type: Bolt-on
- Interrupt Rating: 22kA at 240V AC
- Series/Frame: BLH
- Trip Unit: Thermal magnetic
- Shunt Trip: 120V factory-installed
Additional Information
complete with 120V shunt trip
Specifications
- Part Number: B220H00S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLH
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BLH
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643268753
- GTIN : 00783643268753
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.122 inch
- Weight : 0.926
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
