B220H - Siemens 20 Amp 120/240V 2 Pole Bolt-On Circuit Breaker 22kA Interrupt Rating BL Series

B220H

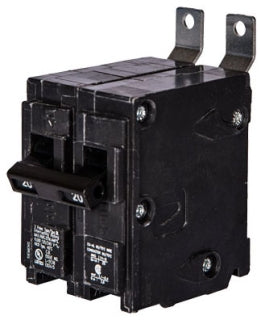

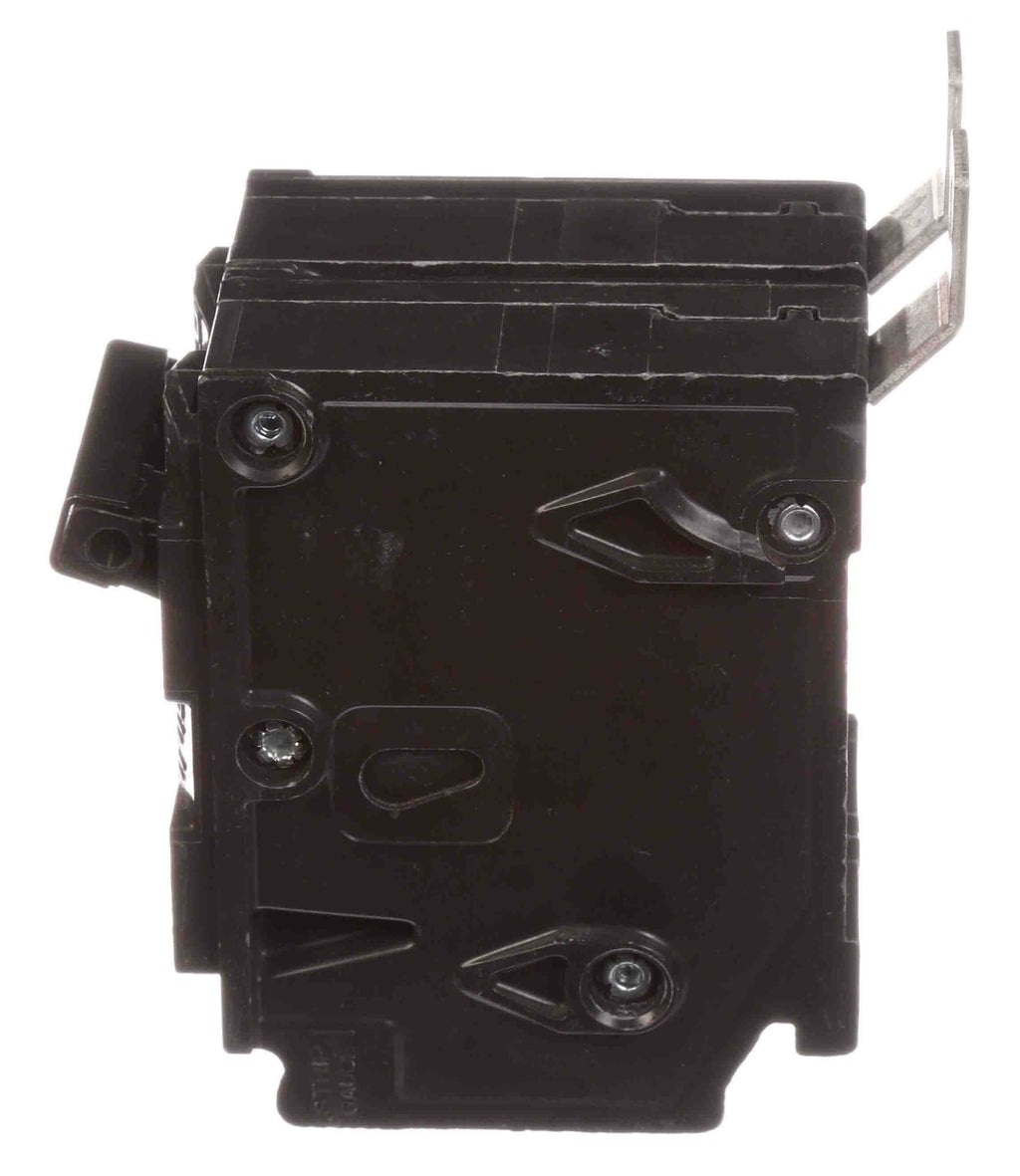

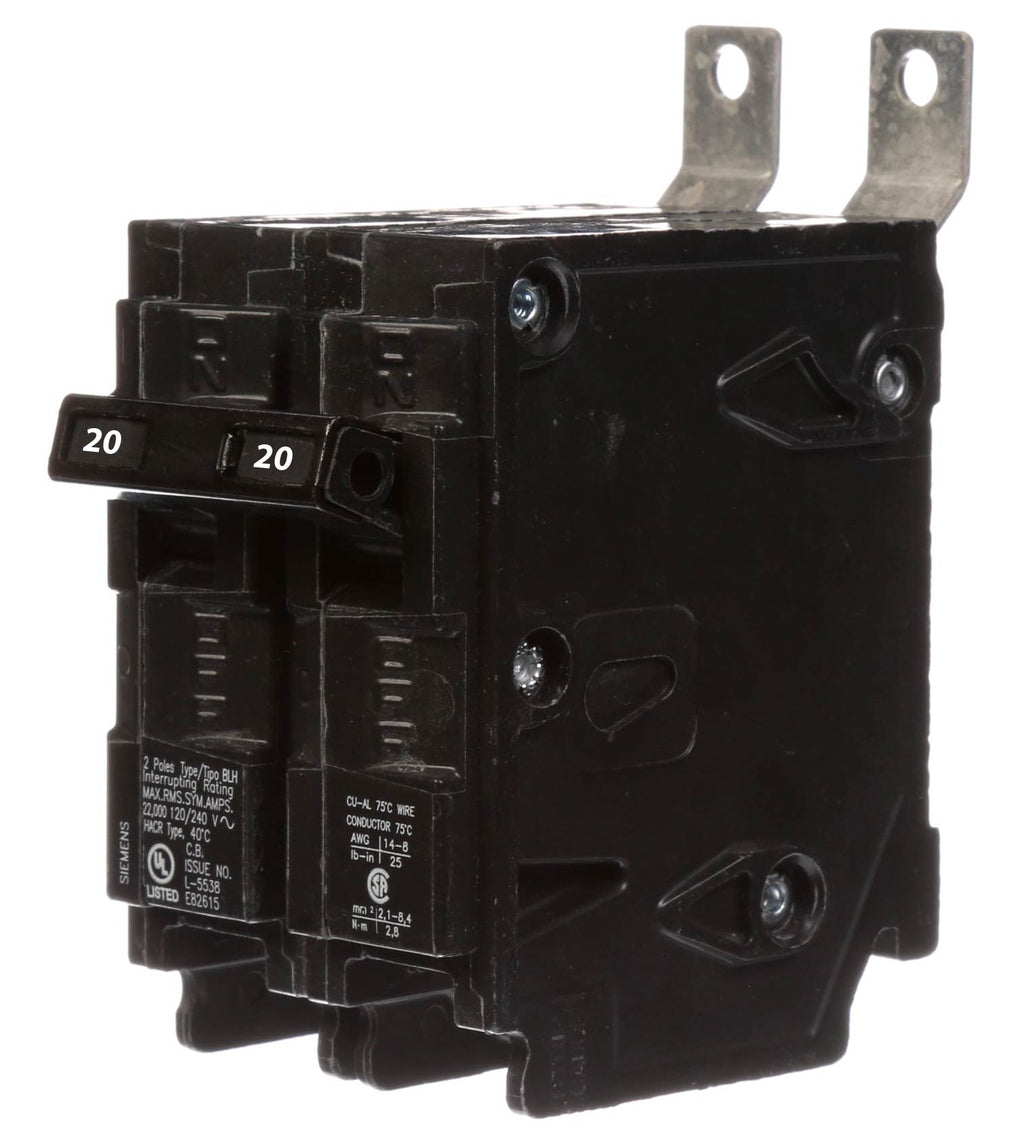

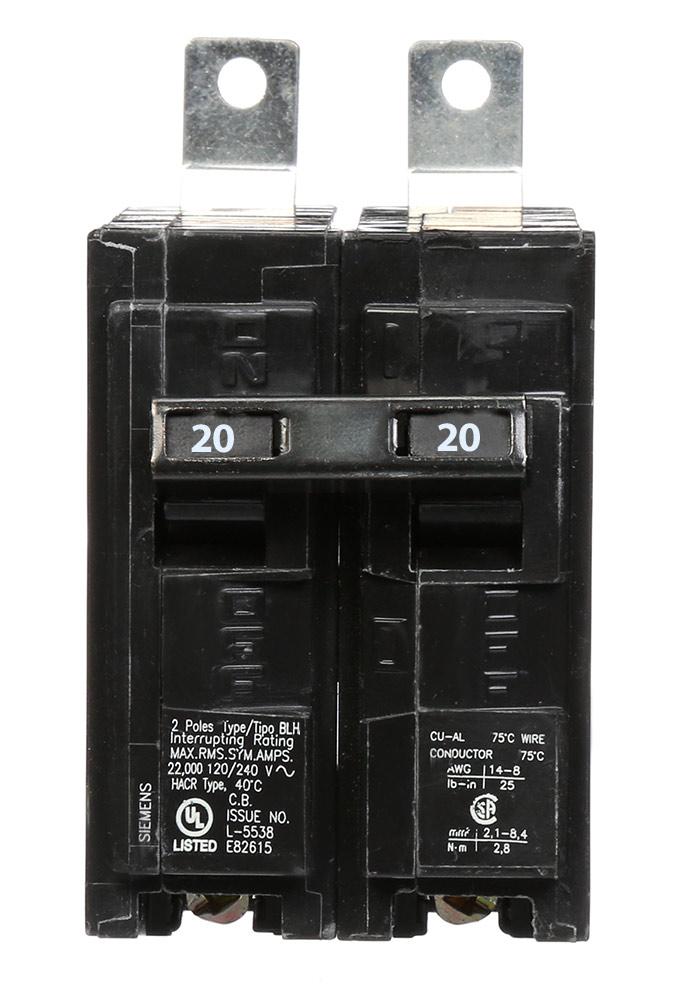

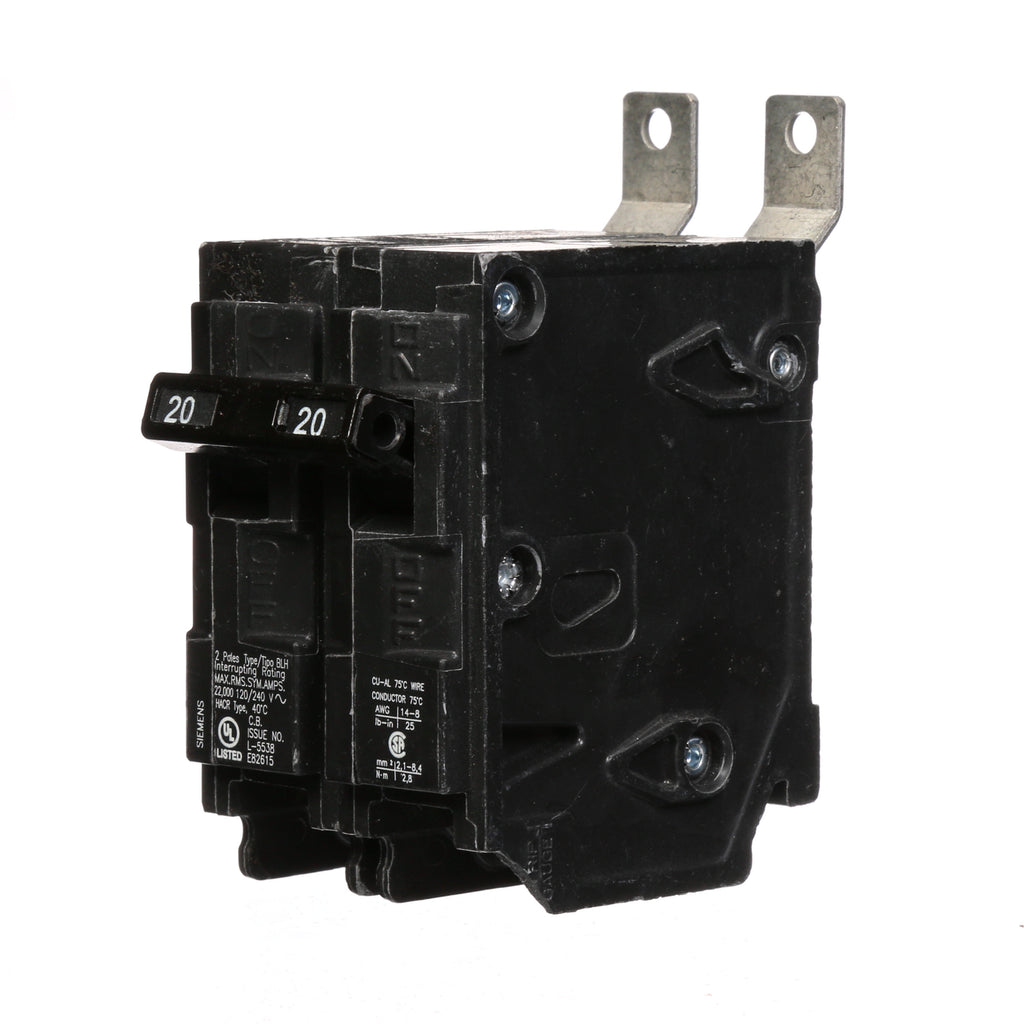

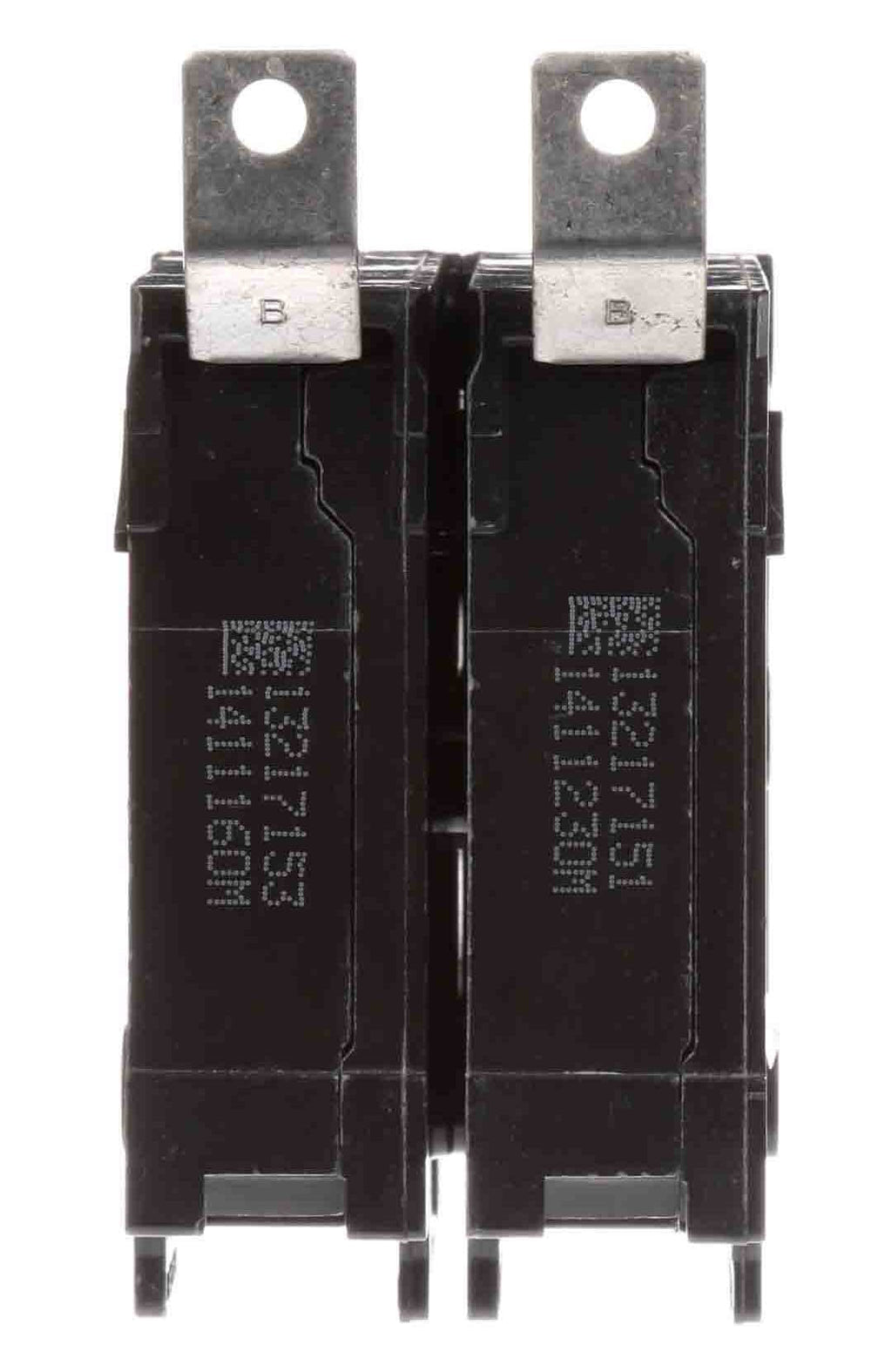

B220H - Siemens 2-pole molded case circuit breaker rated at 20 amps, 120/240VAC with thermal magnetic trip.The Siemens B220H is a Type BLH bolt-on circuit breaker featuring long-time and instantaneous trip functions (LI) for reliable overcurrent protection in P1 panelboards. It offers a 22kAIC interrupting rating at 120/240VAC and UL/CSA approvals.

• Part Number: B220H
• Manufacturer: Siemens
• Amperage: 20A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22kAIC at 120/240VAC
• Series/Frame: BL / BLH
• Trip Unit: Thermal Magnetic
• Functions: LI (Long-Time/Instantaneous)
• Approvals: UL, CSA
• For Use With: P1 Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B220H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263901
• GTIN : 00783643263901
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 1.969 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
