Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B130

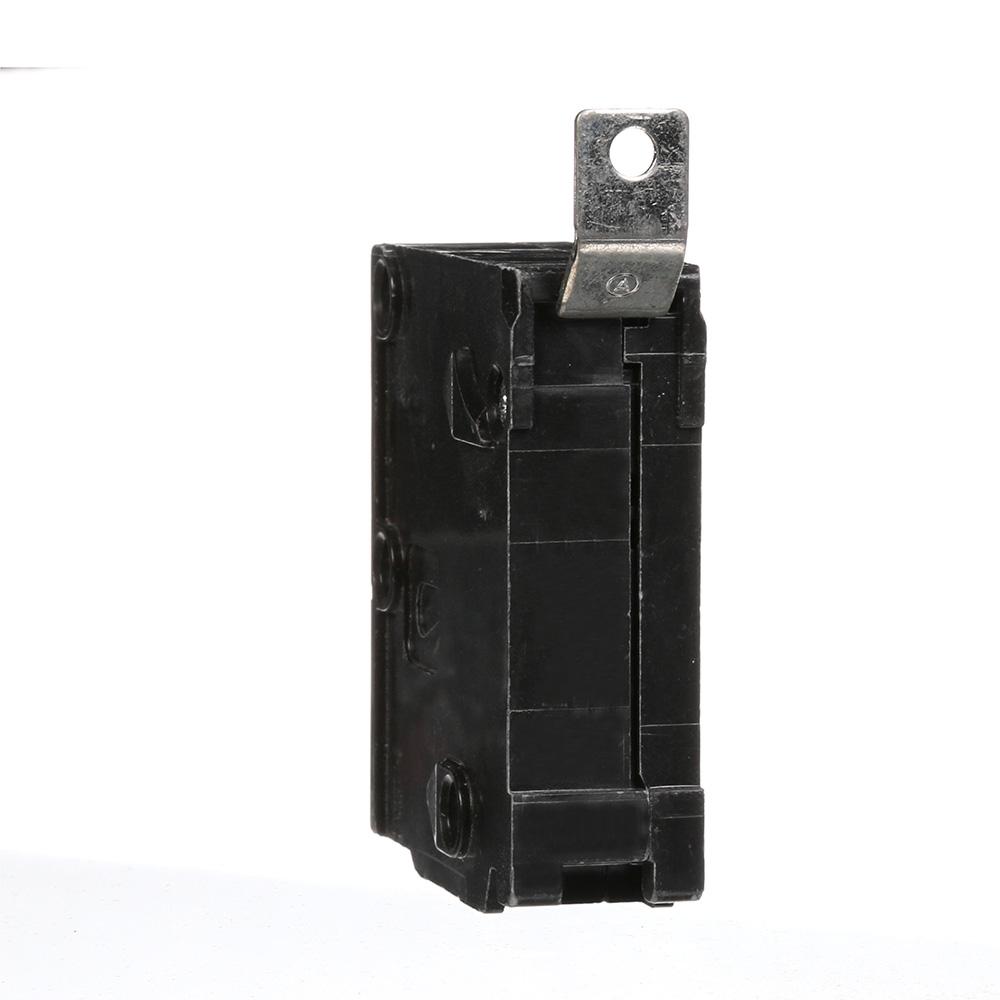

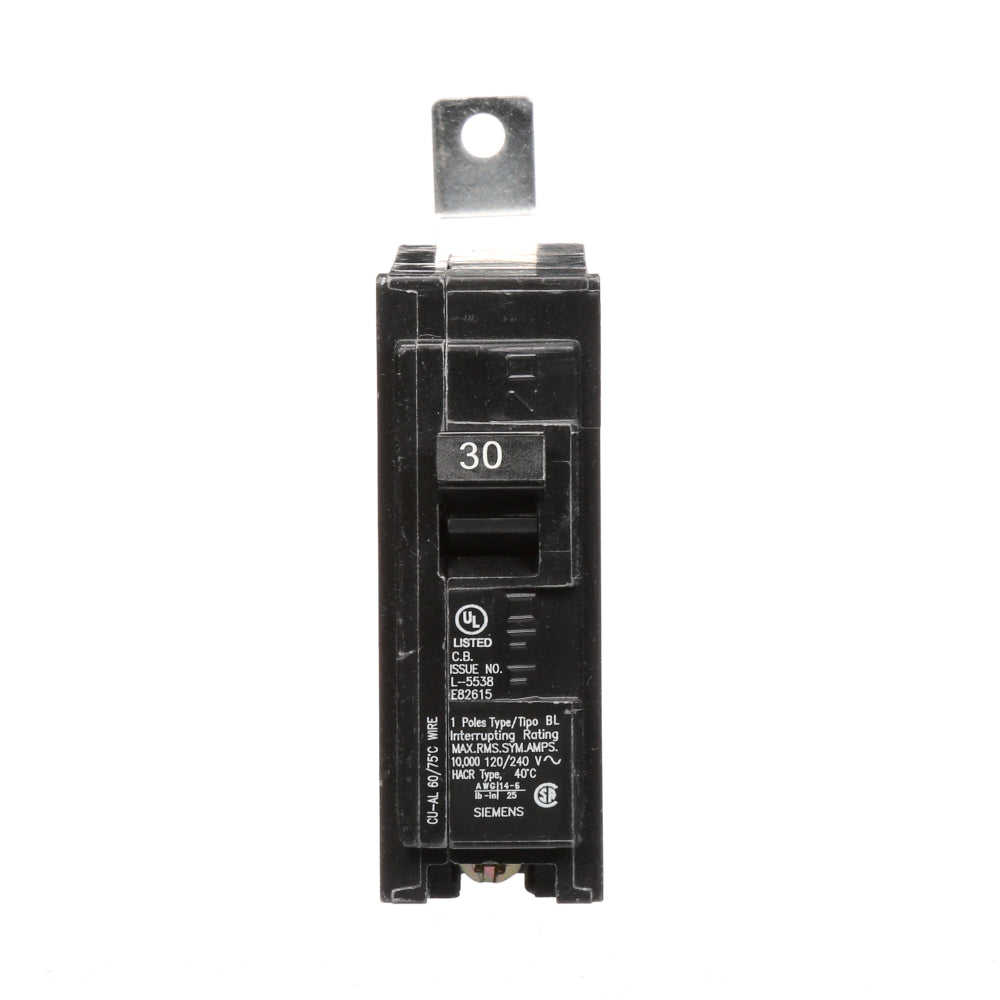

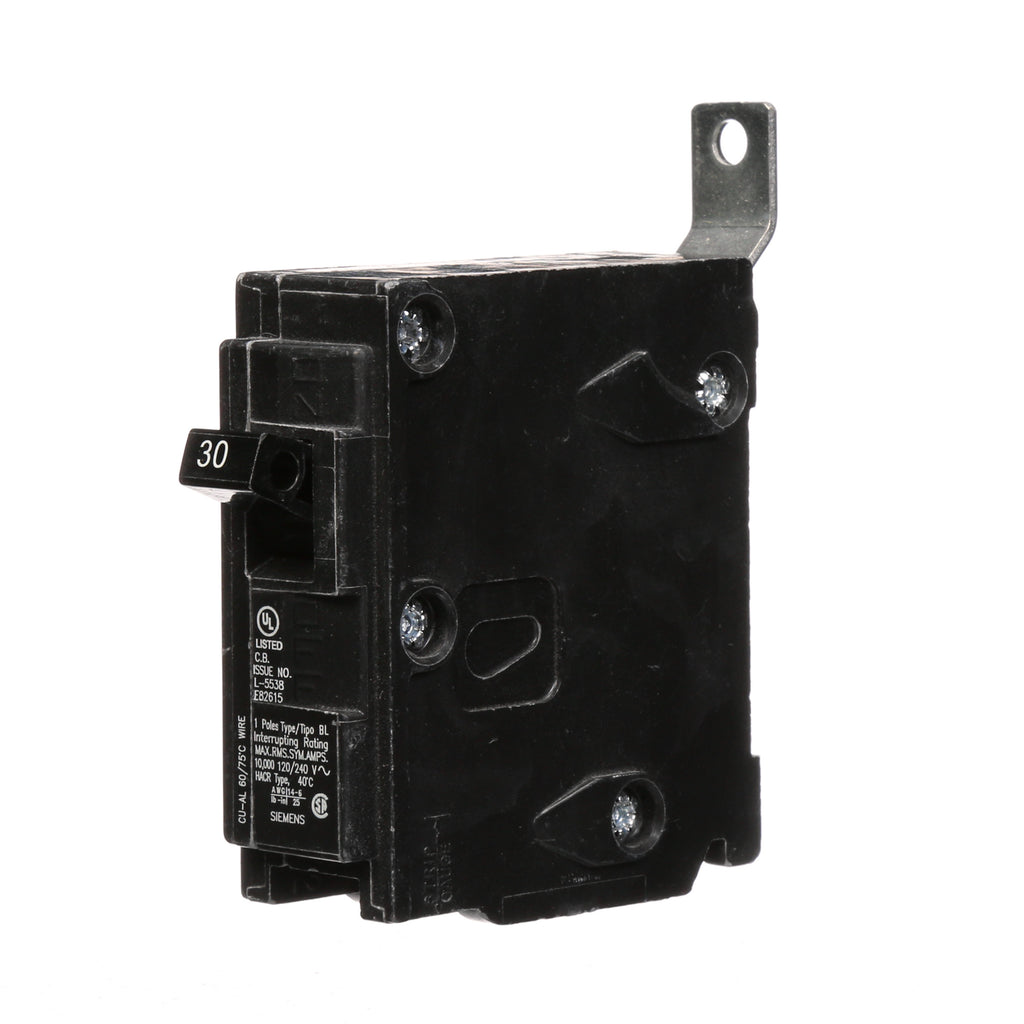

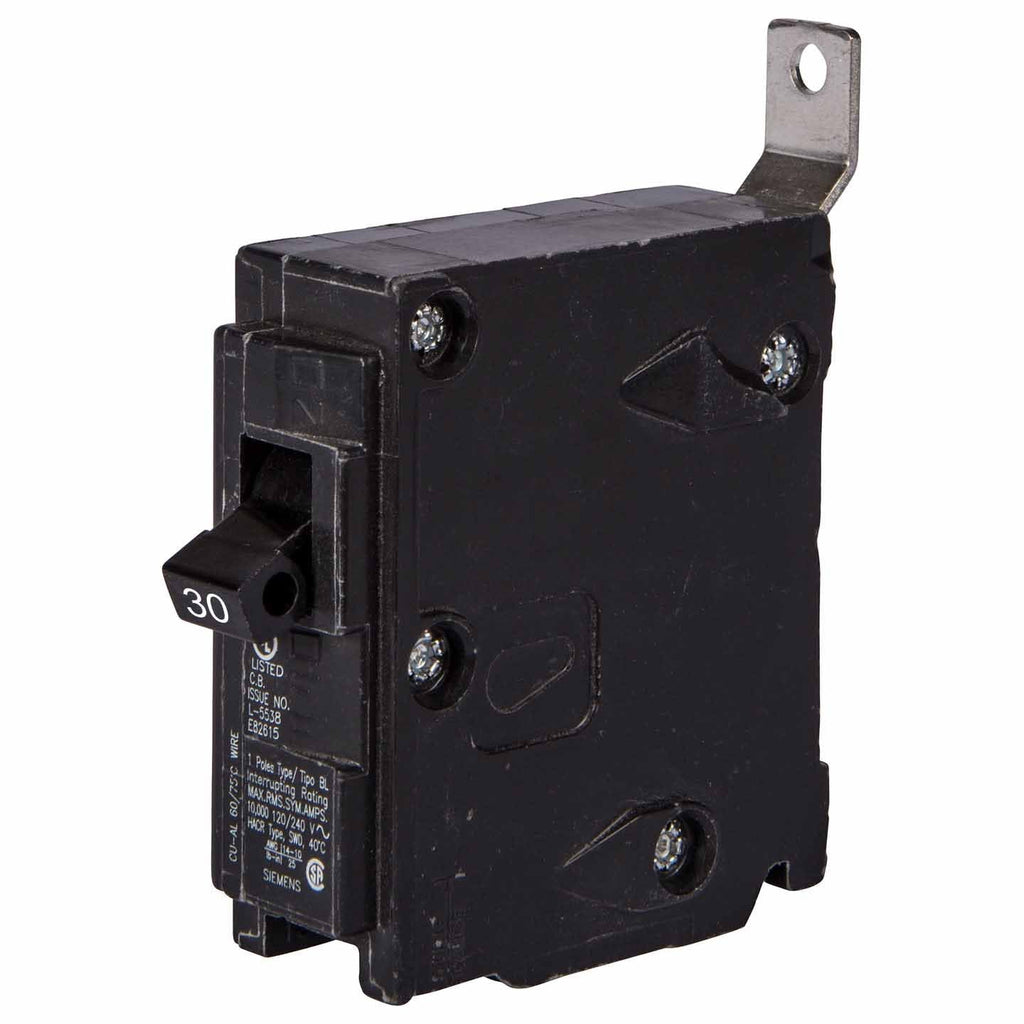

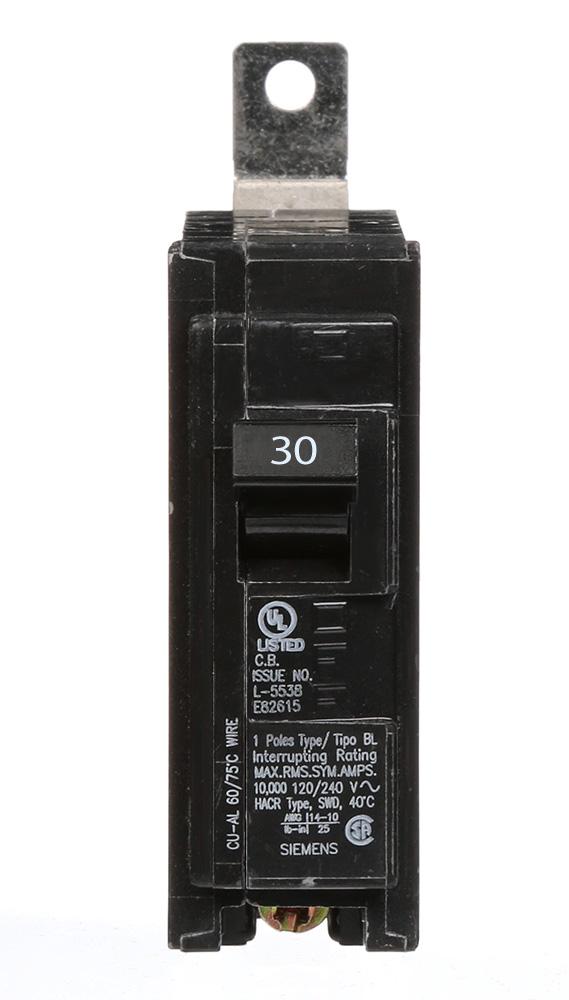

B130 - Siemens Type BL molded case circuit breaker, 1-pole, 30A, 120/240 VAC, bolt-on mounting for panelboards.This Siemens B130 is a low voltage molded case circuit breaker from the BL series with thermal-magnetic trip, designed for panelboard mounting. It features a 10 kA interrupt rating at 120/240 VAC, toggle actuator, and supports wire sizes 14-6 AWG. Rated for 60 Hz operation at 40 deg C.
- Part Number: B130
- Manufacturer: Siemens
- Series/Frame: BL
- Amperage: 30A
- Voltage: 120/240 VAC
- Poles: 1
- Phase: 1
- Mounting Type: Bolt-On, Panel
- Interrupt Rating: 10 kA
- Trip Unit: Thermal-Magnetic
- Frequency: 60 Hz
- Actuator: Toggle
- Certifications: UL Listed, CSA
Specifications
- Part Number: B130
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643263444
- GTIN : 00783643263444
- Country of Origin : Mexico
- Dimensions : 2.571 x 1.00 x 2.89 inch
- Weight : 0.309 lb
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
