ANN-250 - Eaton Bussmann ANN Circuit Limiter 250A 125VAC 80VDC Stud Mount Non-Indicating

ANN-250

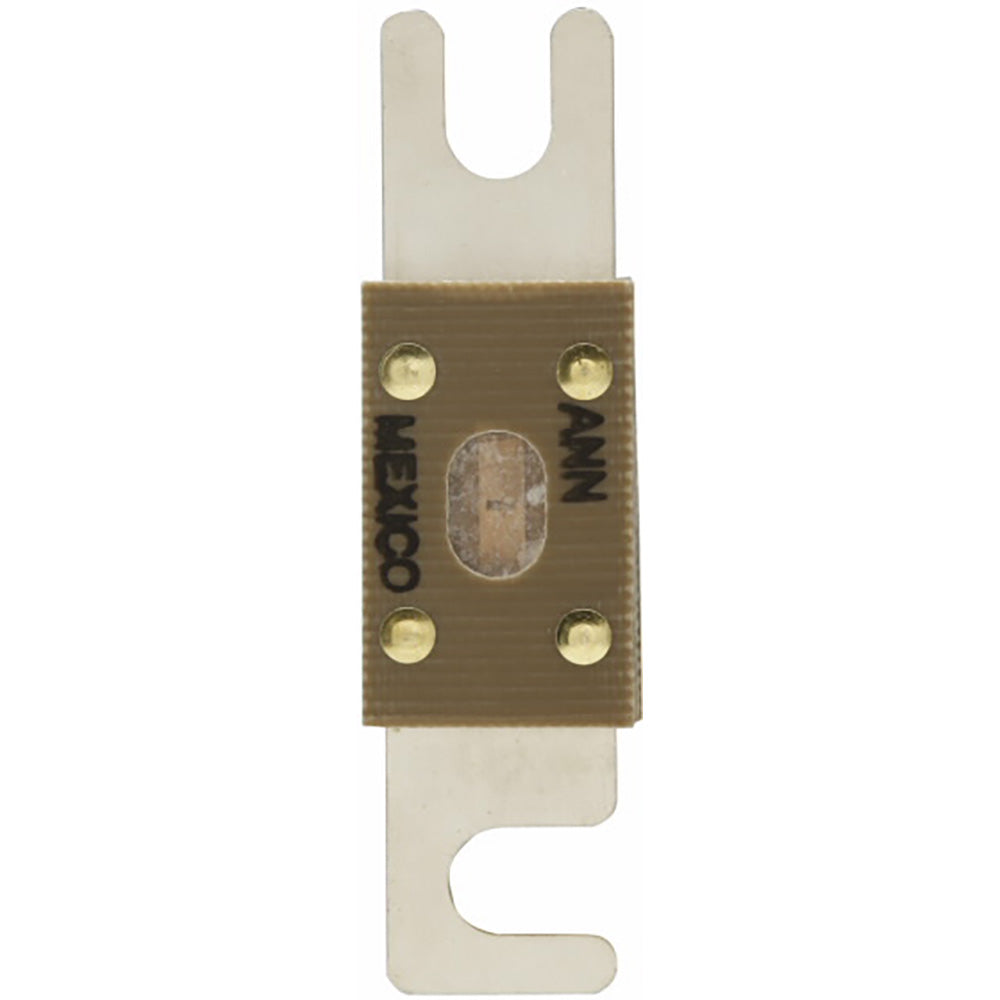

ANN-250 is a Bussmann series ANN circuit limiter designed for high-current, low-voltage applications with a very fast-acting response to short-circuit currents. This device features a blade end x blade end connection and stud mounting for secure installation in demanding environments. The open link element is visible through a mica window for easy status verification. Ideal for use with Cooper Bussmann 4164 fuse holders, this limiter is engineered for reliability and safety in industrial and commercial power distribution systems. The Eaton Bussmann ANN-250 circuit limiter provides robust protection with a compact footprint and is suitable for applications requiring high interrupt capacity and fast response times. Its stud mounting design ensures stability in high-vibration environments, while the non-indicating feature allows for straightforward integration into existing systems.

• Part Number: ANN-250
• Manufacturer: Eaton
• Series: Bussmann ANN
• Amperage Rating: 250A
• Voltage Rating: 125VAC, 80VDC
• Interrupt Rating: 2.5kAIC at 125VAC, 2.7kAIC at 80VDC
• Mounting Type: Stud
• Connection: Blade end x blade end
• Indicator: Non-indicating
• Agency Approvals: UL Recognized, CSA Component Acceptance
• Special Features: Very fast-acting, visible open link element
• Recommended Fuse Holder: Cooper Bussmann 4164

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ANN-250
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Limiters
• Family : ANN Series
• Type : ANN

Product Data

• UPC : 051712706339
• GTIN : 00051712706339
• Country of Origin : Mexico
• Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
• Weight : 0.27
• Certification : CE, CSA Certification Class 1422-30, UL Guide JFHR2
