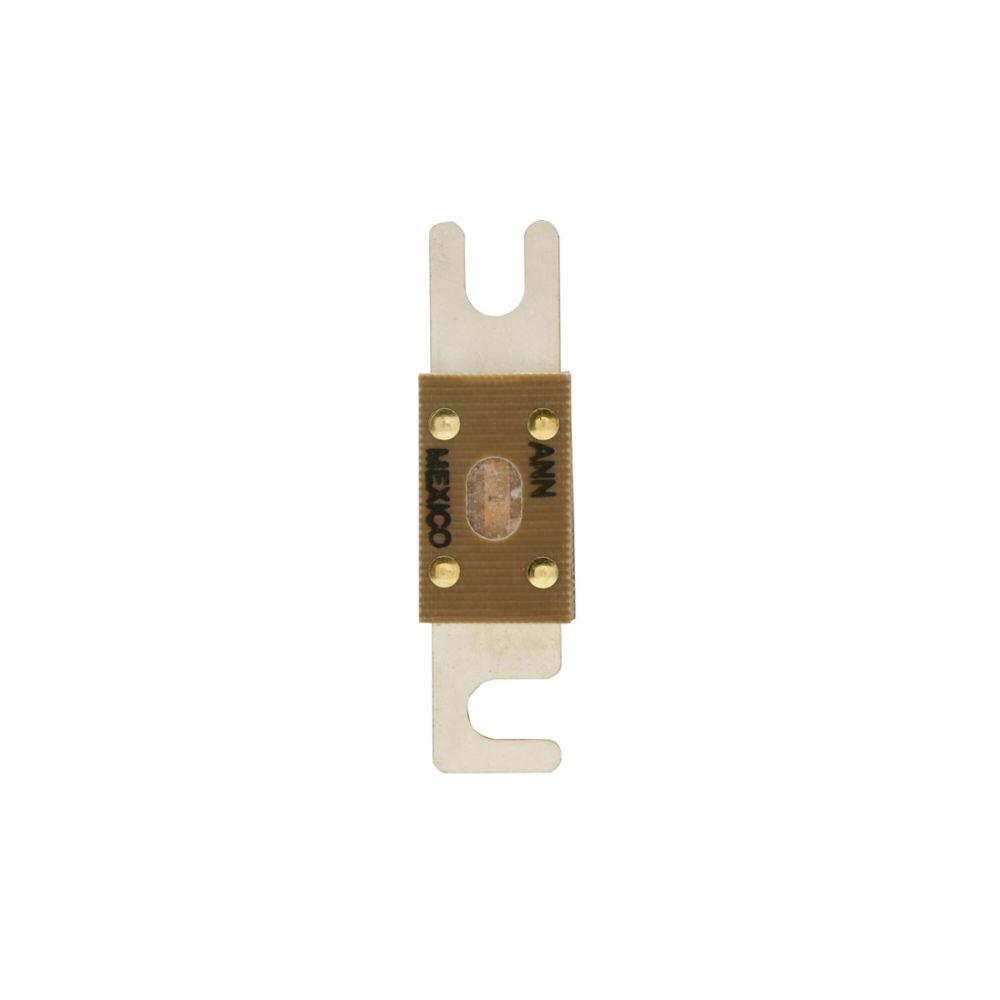

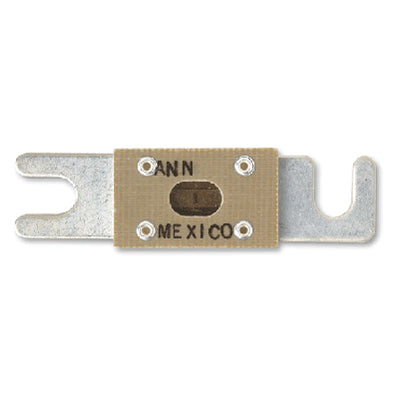

ANN-125 - Eaton Bussmann 125A 125VAC Very Fast Acting Bolt-Down Fuse

ANN-125

ANN-125 is a very fast-acting bolt-down fuse from Eaton Bussmann designed for high-current, low-voltage applications.This 125 amp, 125 volt AC fuse features a stud mounting style compatible with Buss fuseblock 4164. It has an interrupting rating of 2,500 amps AC at 125 VAC and 2,700 amps DC at 80 VDC. The fuse includes a visible open link element through a mica window for easy inspection and is UL recognized and CSA certified under Class 1422-30. It is ideal for isolating faults in battery-operated systems and forklift trucks.

Key Specifications
• Amperage: 125A
• Voltage Rating: 125 VAC, 80 VDC
• Interrupting Rating: 2,500 AIC @ 125 VAC, 2,700 AIC @ 80 VDC
• Mounting Type: Stud mount
• Fuse Series: ANN
• Speed Type: Very Fast Acting
• Physical Size: 0.88" x 3.19"
• Certifications: UL Recognized, CSA Class 1422-30
• Recommended Fuse Block: Bussmann 4164
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ANN-125
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Limiters
• Family : ANN Series
• Type : ANN

Product Data

• UPC : 05171270631
• GTIN : 00051712706315
• Country of Origin : Mexico
• Dimensions : 3.38 in x 1.62 in x 0.95 in (Length/Depth x Height x Width)
• Weight : 0.27
• Certification : CE, CSA Certification Class 1422-30, UL Guide JFHR2
