Product Info
- Manufacturer:Eaton
- Sub-Category:Motor Starter
Description
AN19DN0A5E005

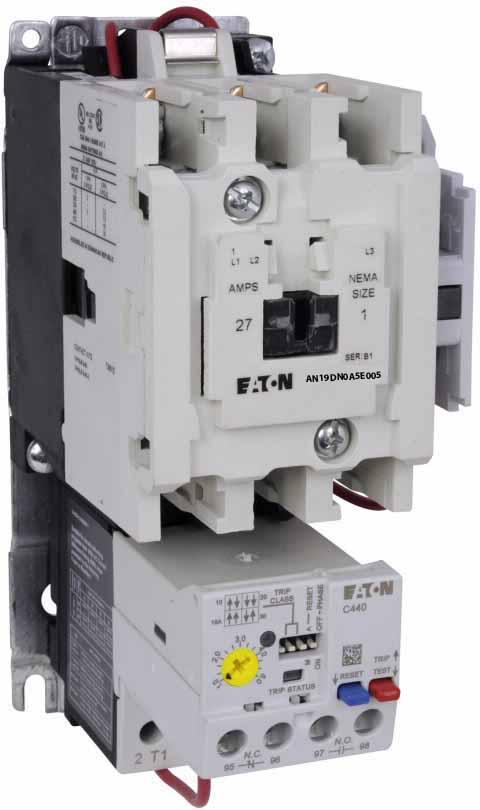

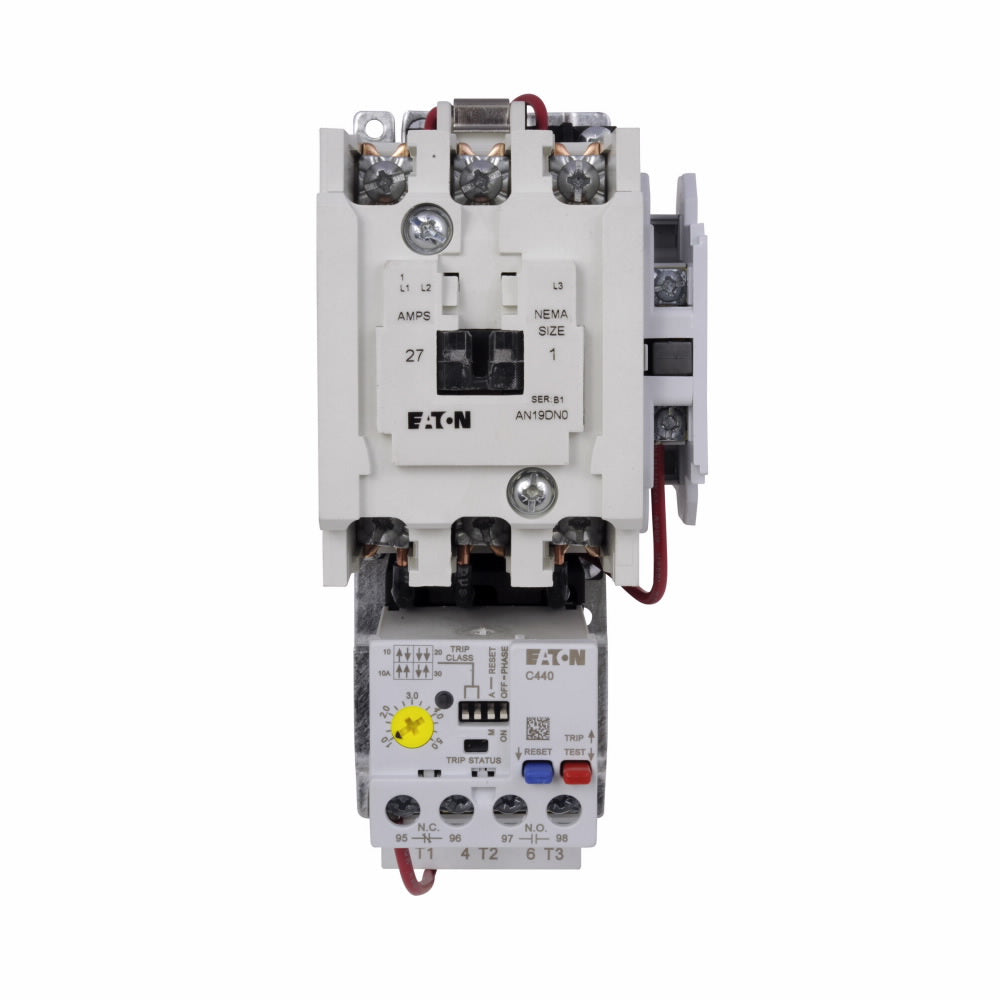

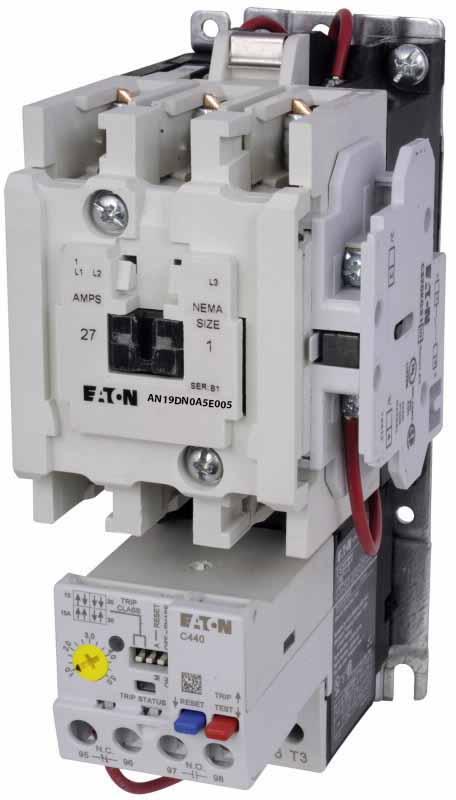

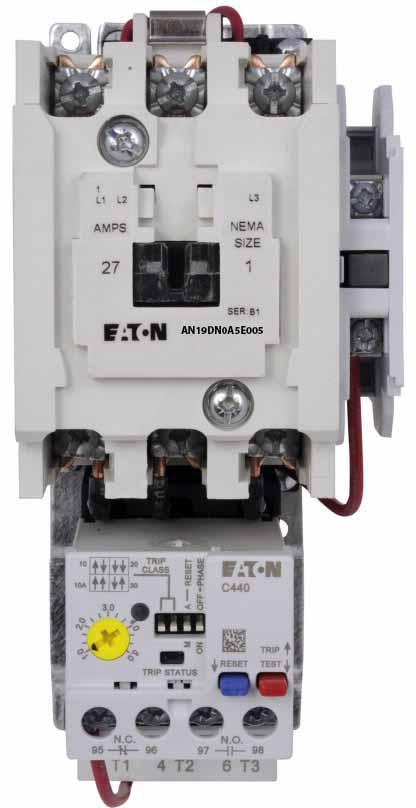

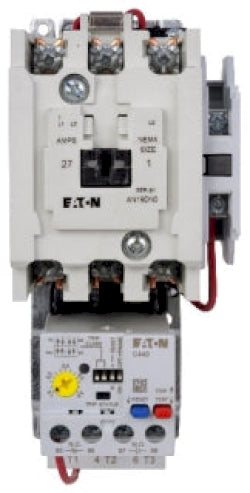

AN19DN0A5E005 is a Eaton Freedom Series 3-pole motor starter rated at 27 amps and 600 volts with horizontal mounting. This non-reversing starter features a C440 electronic overload relay and is designed for NEMA Size 1 applications. It operates with a coil voltage of 120VAC at 60Hz or 110VAC at 50Hz and is UL, CSA, CE, and NEMA certified. The starter is ideal for motor control systems requiring reliable overload protection and easy reset functionality.
- Amperage: 27 Amps
- Voltage: 600 Volts
- Poles: 3
- Mounting Type: Horizontal
- Coil Voltage: 120VAC (60Hz) / 110VAC (50Hz)
- Series: Freedom
- Size: NEMA Size 1
- Overload Relay: C440 electronic, adjustable 1-5A
- Configuration: Non-reversing
- Certifications: UL, CSA, CE, NEMA
- Contact Configuration: 1 Normally Open (NO)
- Standards: RoHS Compliant
Specifications
- Part Number: AN19DN0A5E005
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN19
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Aux Contacts : 1NO
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- Nema Rating : 1
Product Data
- UPC : 786685417622
- GTIN : 00786685417622
- Country of Origin : Dominican Republic
- Dimensions : 4.98 in x 7.1 in x 2.6 in (Length/Depth x Height x Width)
- Weight : 3.92
- Certification : CE, CSA, UL Listed
