Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16DN0EB

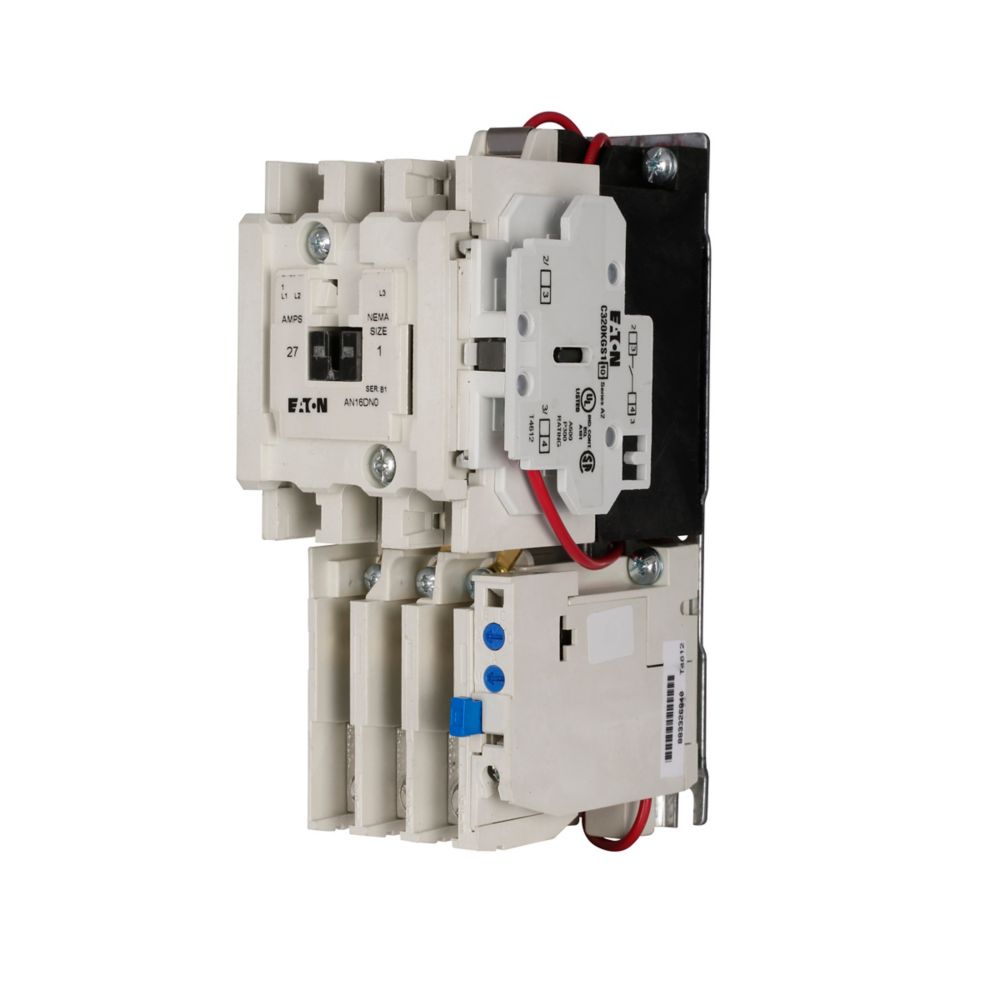

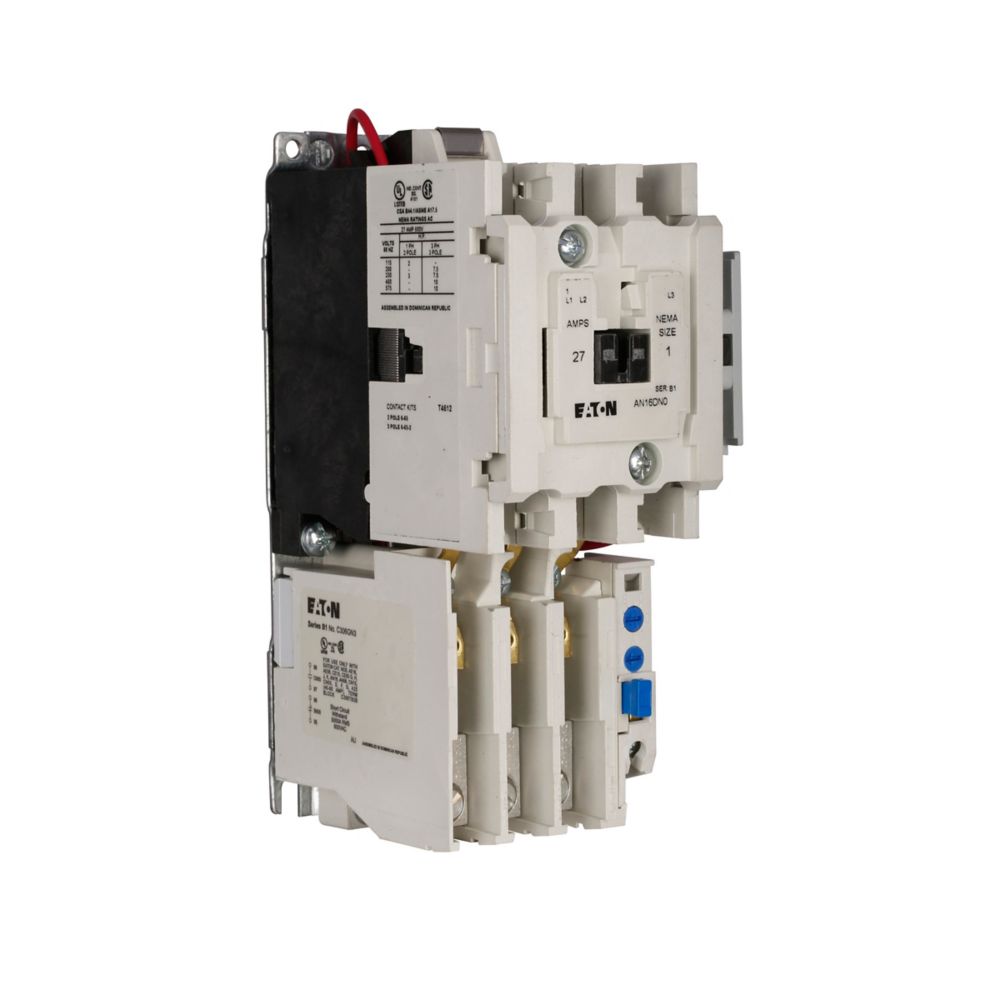

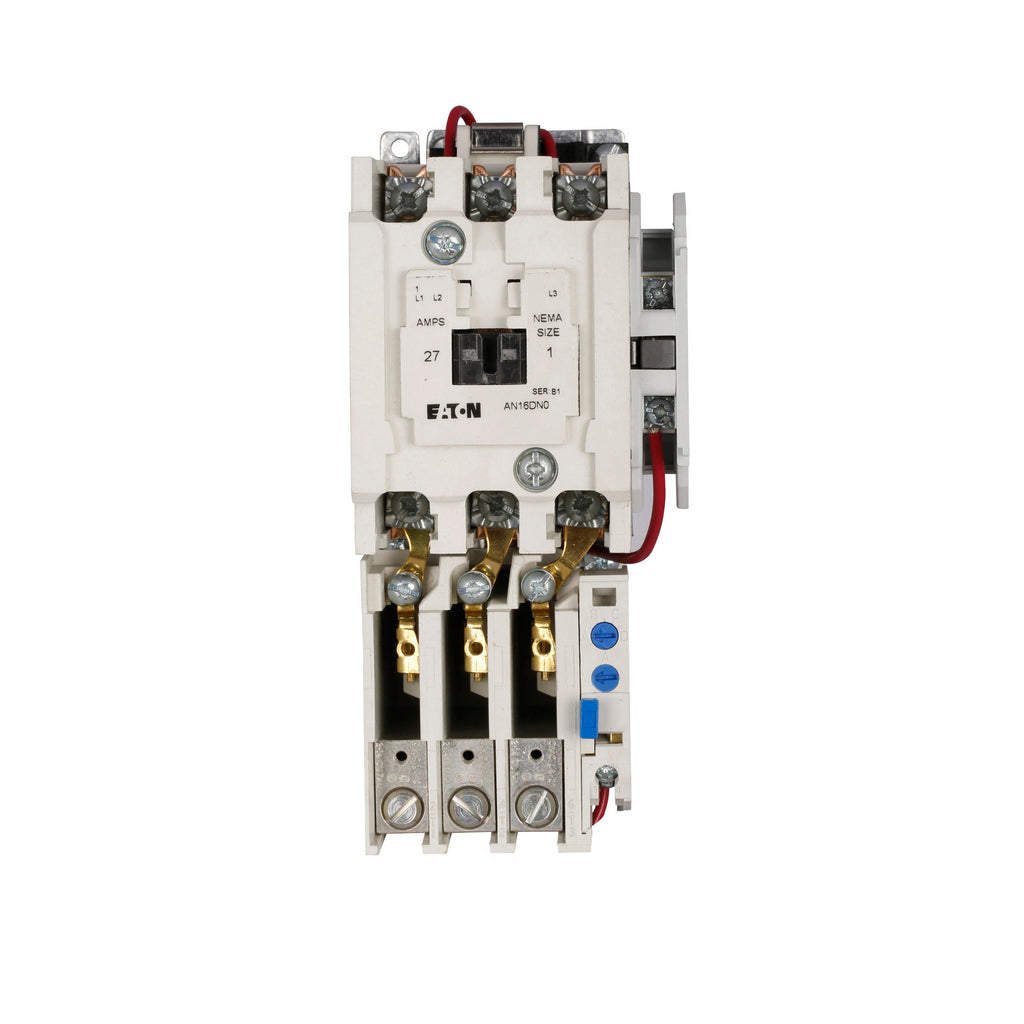

AN16DN0EB is a Cutler Hammer motor control starter designed for reliable motor protection and control in industrial applications.This Eaton Freedom NEMA motor control starter features a non-reversing reset overload relay, supports up to 27 amps, and is rated for 600 volts with a 3-pole configuration. It is suitable for motors up to 10 hp at 480/600V and includes a 208V/60 Hz coil voltage. The starter is NEMA Size 1 and designed for horizontal panel mounting with UL and CSA certifications.
- Amperage: 27A
- Voltage Rating: 600V
- Coil Voltage: 208V AC, 60 Hz
- Poles: 3
- Phase: 3-phase
- Mounting Type: Panel, Horizontal
- NEMA Size: 1
- Type: Non-Reversing Reset Overload Relay Starter
- Horsepower Ratings: 2 hp at 115V, 3 hp at 230V, 7.5 hp at 208/240V, 10 hp at 480/600V
- Certifications: UL Listed, CSA Certified
- Weight: 2.6 lbs
Specifications
- Part Number: AN16DN0EB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 208
- Coil Voltage Minimum : 208
- Nema Rating : 1
Product Data
- UPC : 782113025612
- GTIN : 00782113025612
- Country of Origin : United States
- Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
- Weight : 2.6 lb
- Certification : CSA Certified,UL Listed
