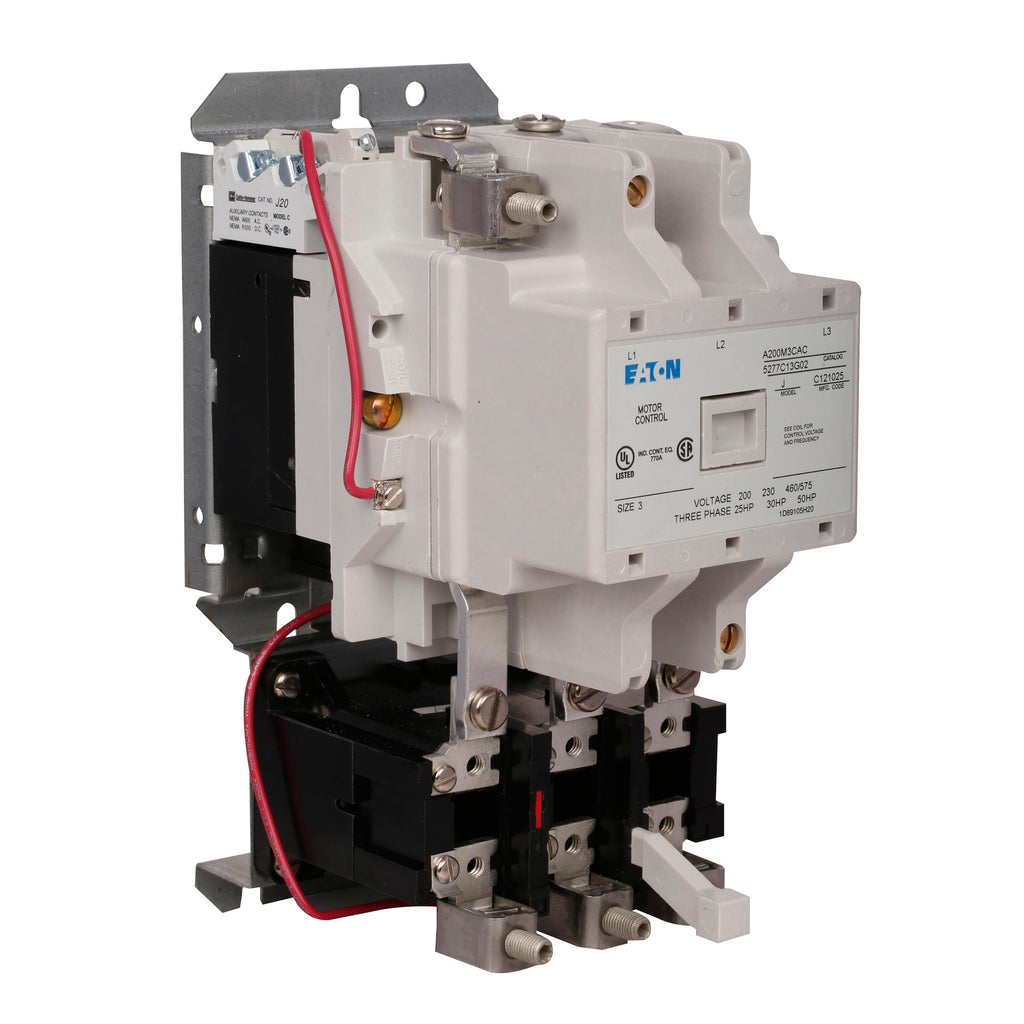

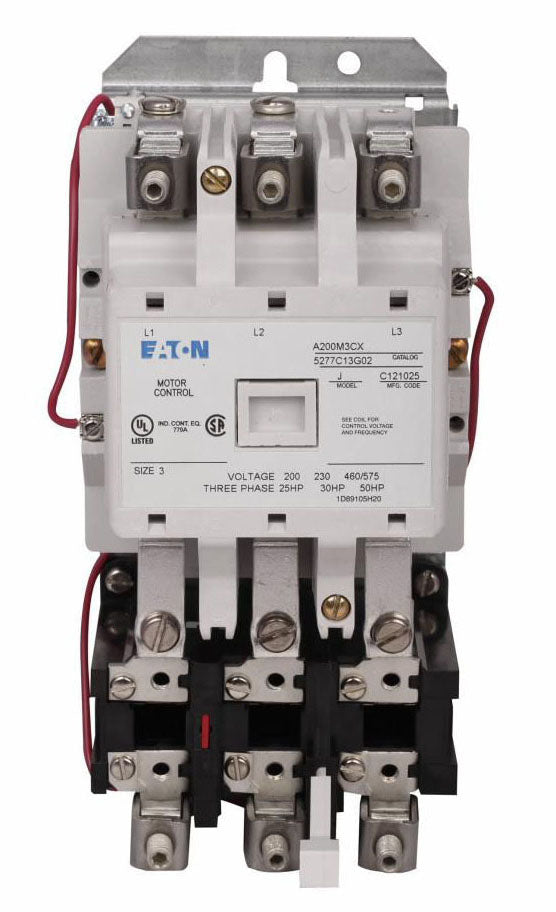

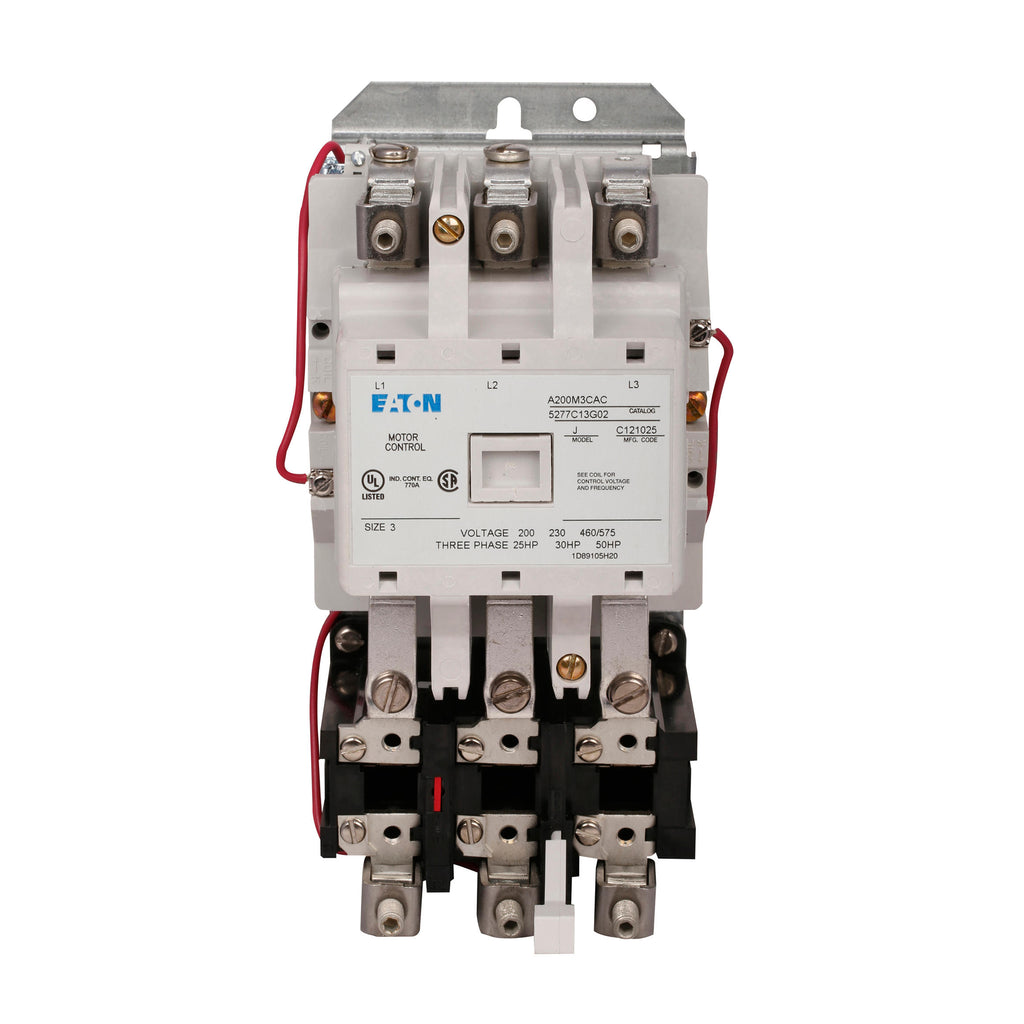

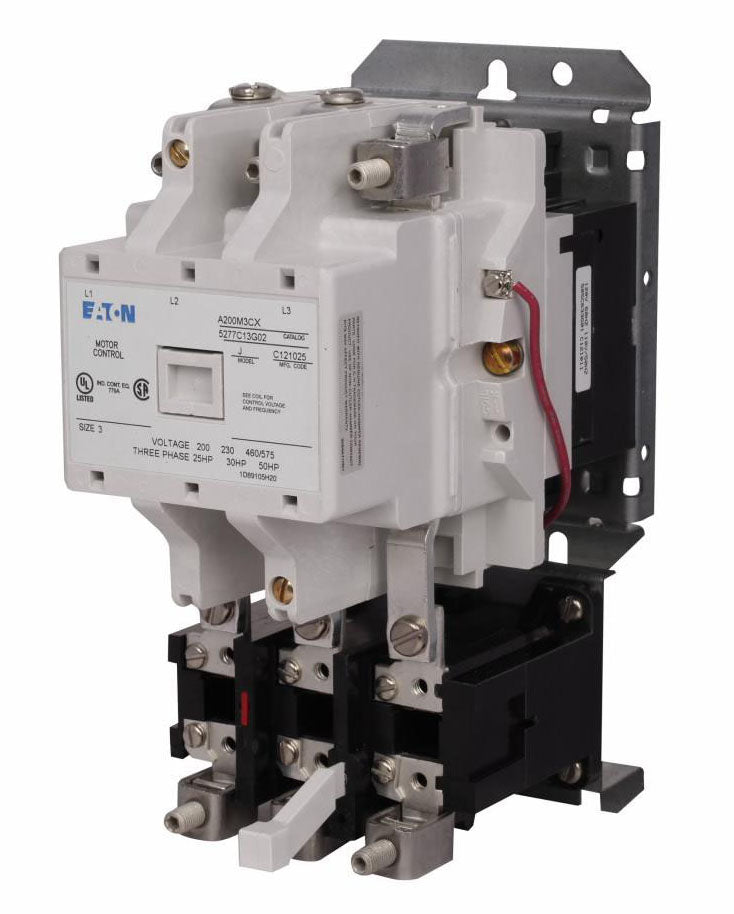

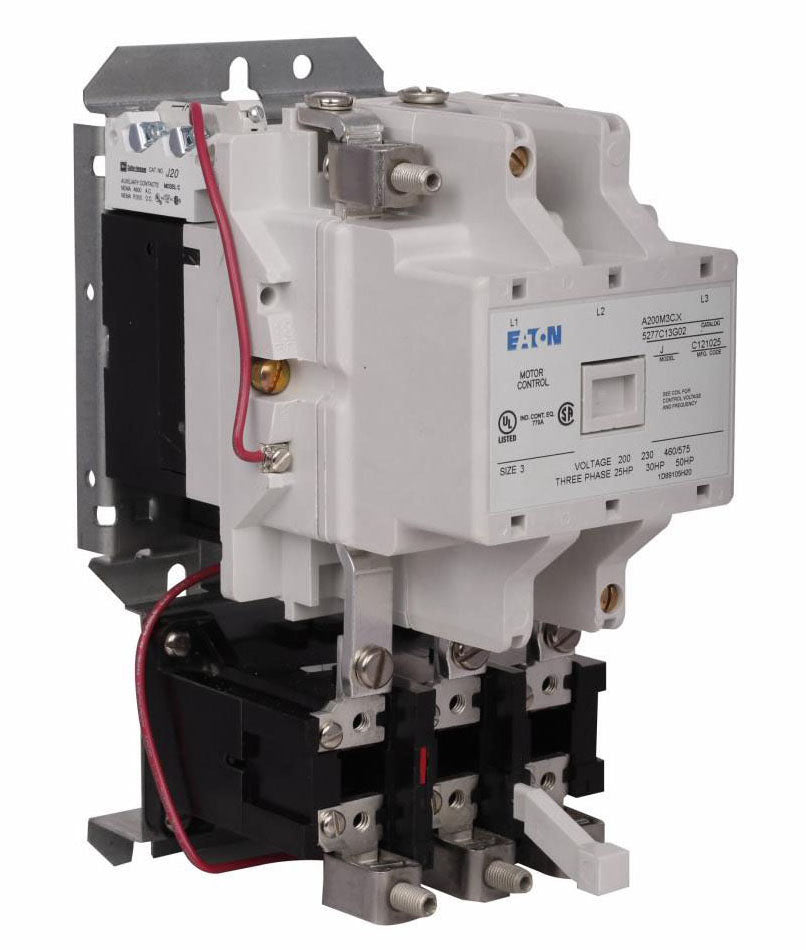

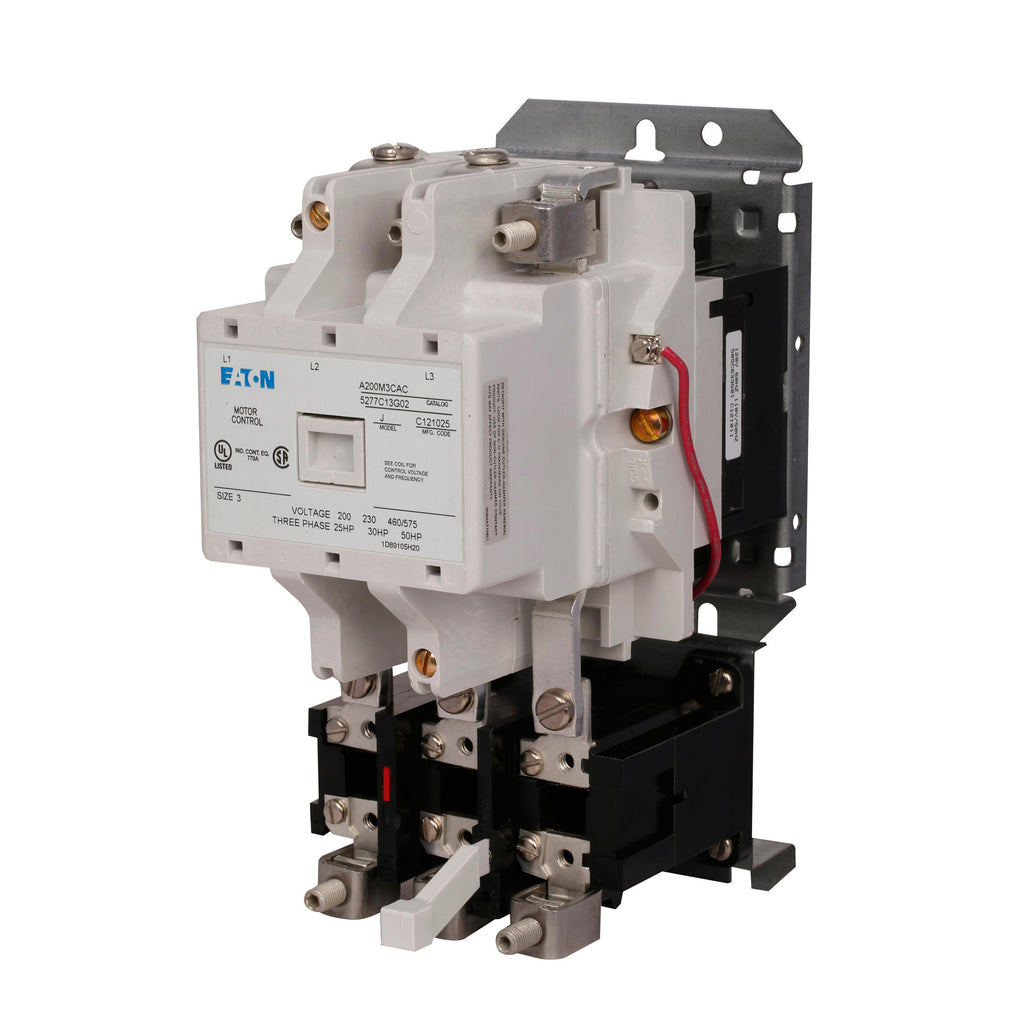

A200M3CX - Cutler Hammer Eaton A200 NEMA Motor Control Starter 90A 480V 3-Pole Size 3 Non-Reversing

A200M3CX

A200M3CX is a Cutler Hammer Eaton A200 series NEMA motor control starter designed for reliable three-phase motor control applications. This non-reversing starter features a 480V/60 Hz coil voltage, 90A current rating, and is rated for 3-pole operation in NEMA size 3 enclosures. Suitable for industrial and commercial use, it provides robust performance for motors up to 50 hp at 480V and 600V. The A200M3CX starter is built for surface mounting and includes thermal overload protection with Type B overload relays. It is UL Listed and CSA Certified for safety and compliance in demanding environments. The open enclosure design allows for easy inspection and maintenance, while the screw termination ensures secure connections.

• Part Number: A200M3CX
• Manufacturer: Cutler Hammer, Div of Eaton
• Series: A200
• Frame Size: NEMA Size 3
• Poles: 3
• Current Rating: 90A
• Voltage Rating: 600V
• Coil Voltage: 480V/60 Hz
• Mounting Type: Surface
• Overload Type: Thermal, Type B
• Termination: Screw
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M3CX
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 480
• Nema Rating : 3

Product Data

• UPC : 786678231297
• GTIN : 00786678231297
• Country of Origin : Dominican Republic
• Dimensions : 6.75 in x 4.63 in x 6.63 in (Length/Depth x Height x Width)
• Weight : 9.3 lb
• Certification : CSA Certified,UL Listed
