Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
A200M3CB

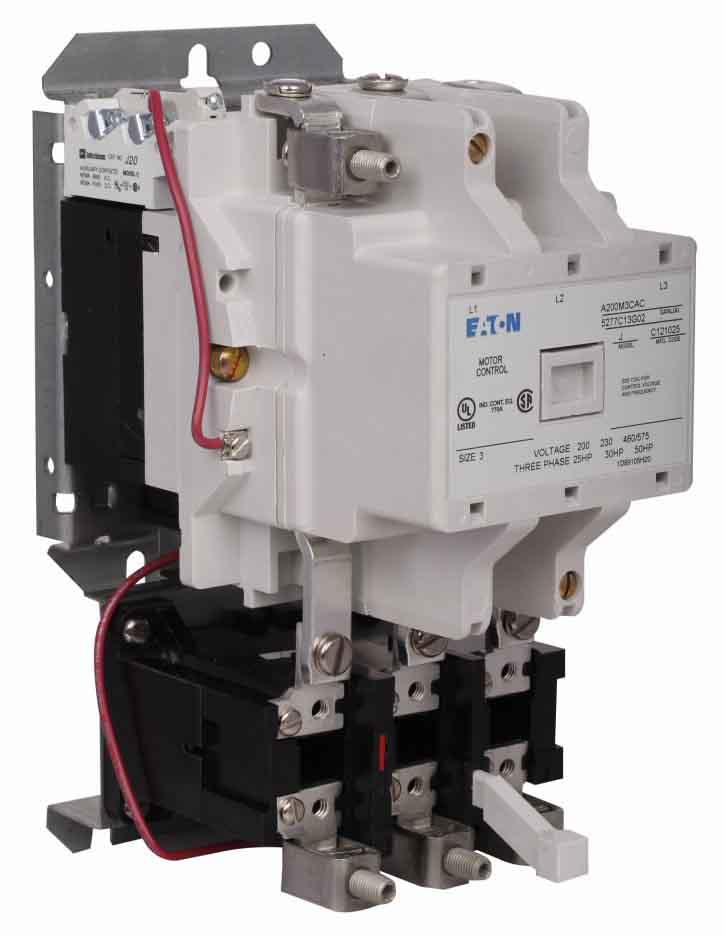

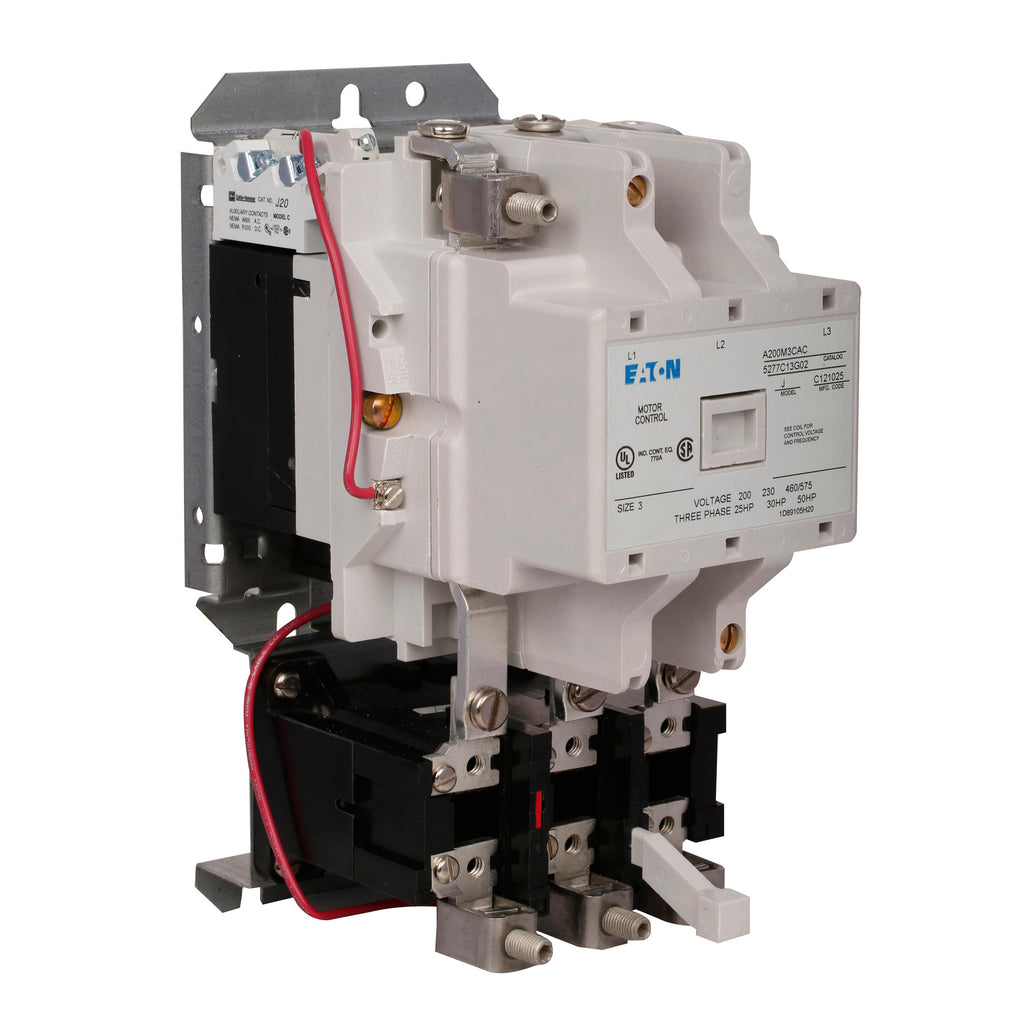

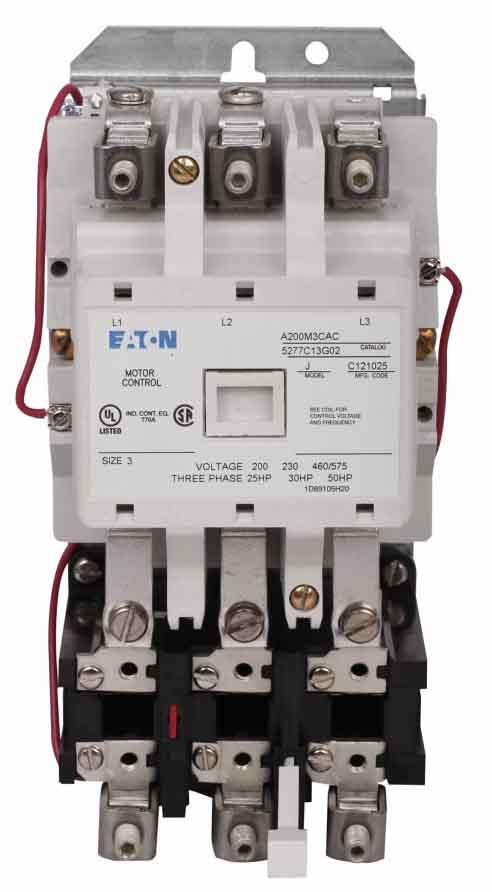

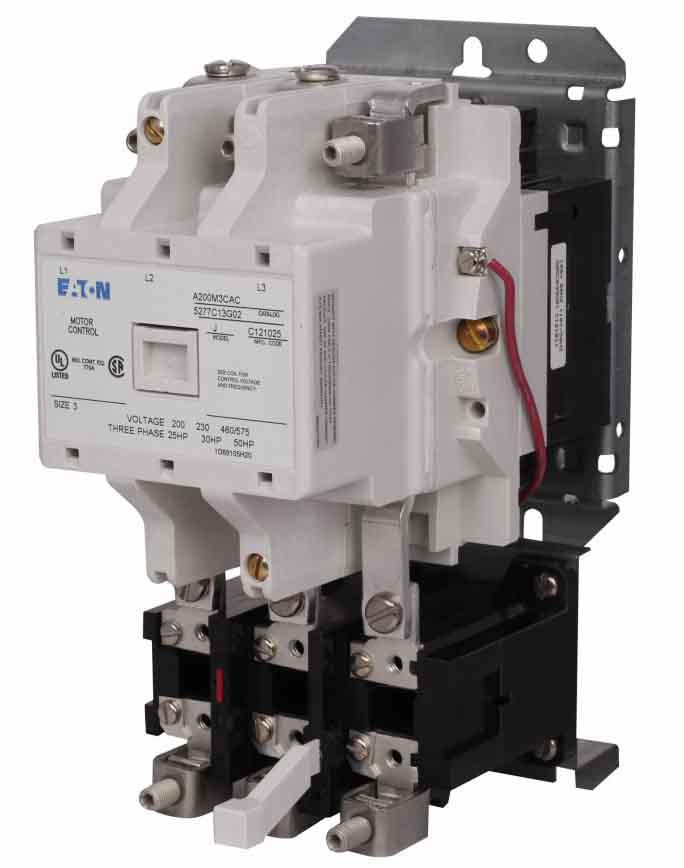

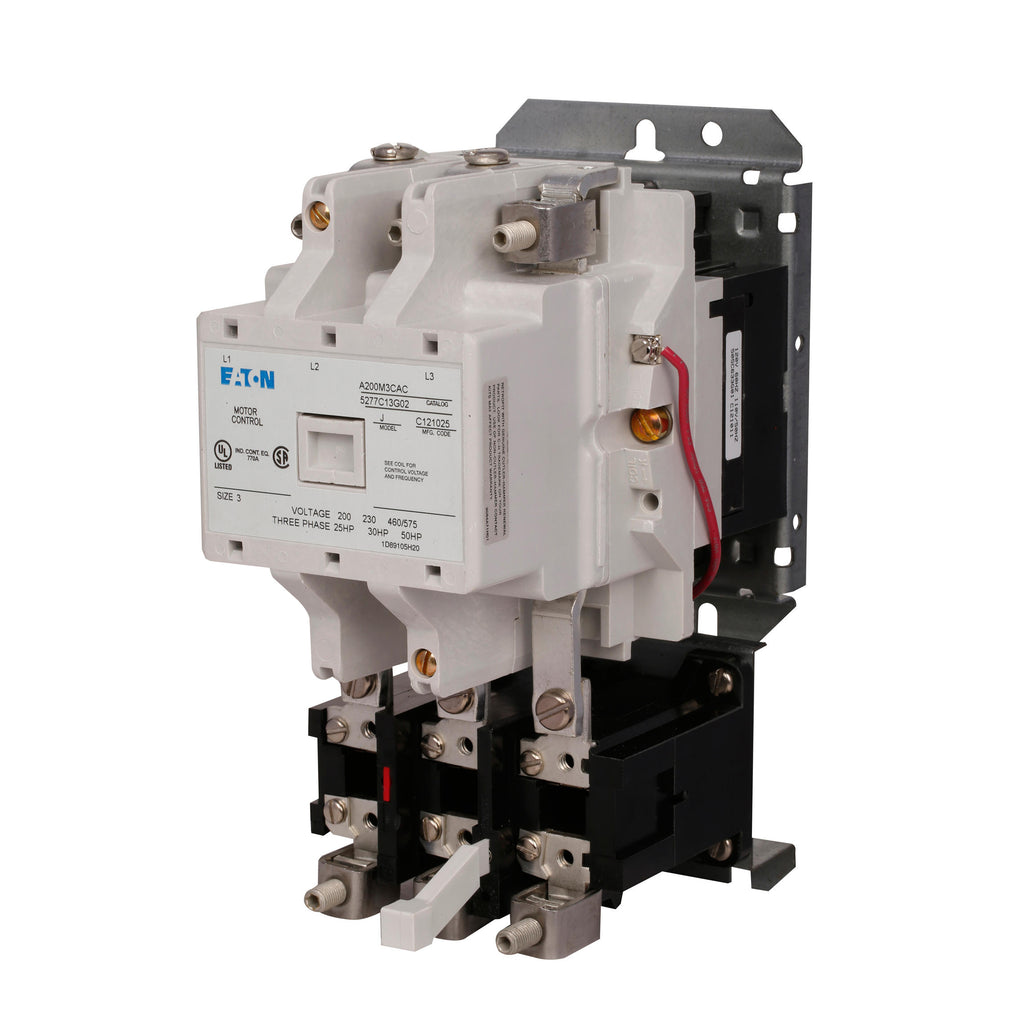

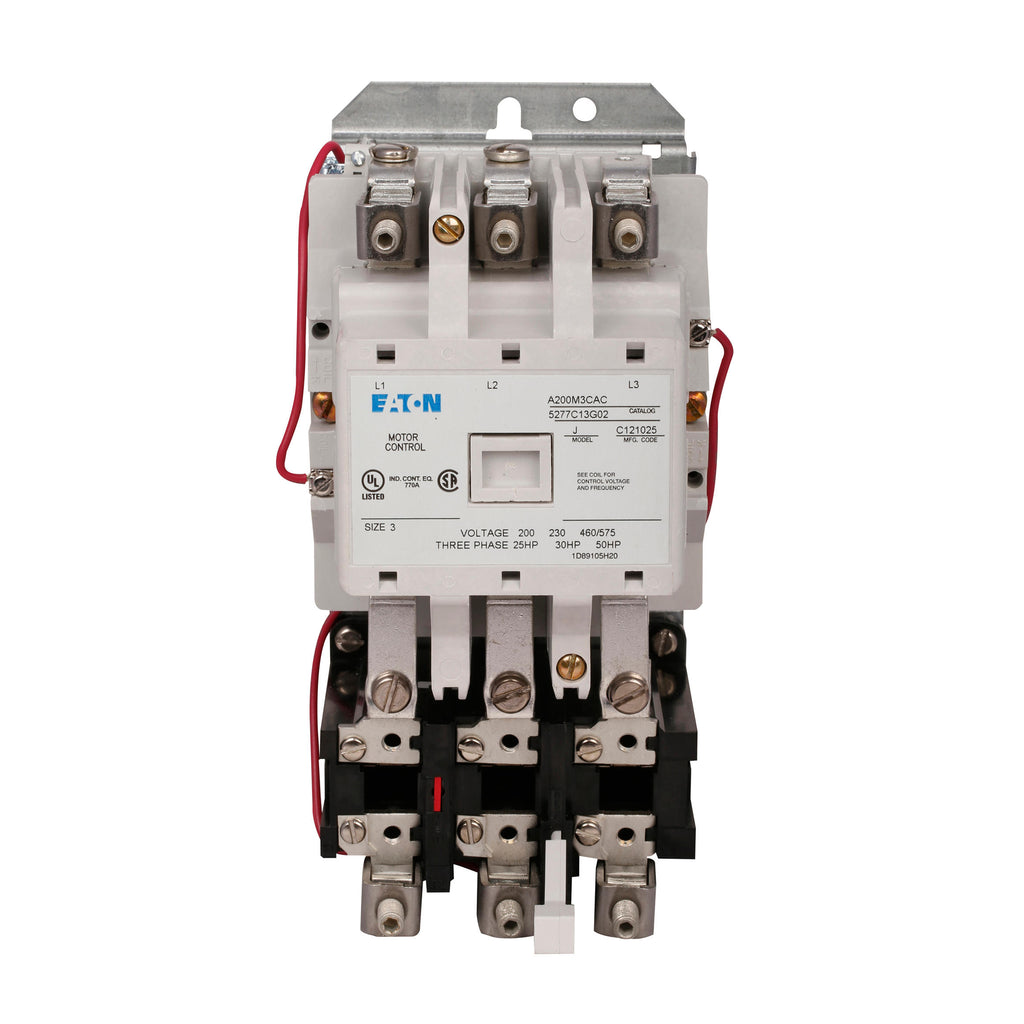

A200M3CB is a Cutler Hammer motor control starter designed for reliable motor protection and control in industrial applications.This non-reversing motor starter features a 90 ampere rating, 3 poles, and supports up to 600 volts AC. It includes a 208 volt coil voltage compatible with 200-208V/60 Hz power supplies. The starter is a NEMA Size 3 frame suitable for motors up to 25 HP at 208V and 30 HP at 240V. It is an open style starter without enclosure and includes a Type B overload relay for motor protection.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: A200M3CB
- Amperage: 90 Amps
- Voltage Rating: 600 VAC maximum
- Coil Voltage: 200-208 VAC, 60 Hz
- Poles: 3
- Frame Size: NEMA Size 3
- Horsepower Rating: 25 HP at 208V, 30 HP at 240V
- Type: Non-Reversing Motor Starter
- Overload Relay: Type B standard
- Mounting: Open style, no enclosure
- Part Number: A200M3CB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : A200 Series
- Type : A200
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Coil Voltage Maximum : 208
- Coil Voltage Minimum : 200
- Nema Rating : 3
- UPC : 786678231266
- GTIN : 00786678231266
- Country of Origin : Dominican Republic
- Dimensions : 6.75 in x 4.63 in x 6.63 in (Length/Depth x Height x Width)
- Weight : 9.3 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL Listed,CSA Certified
