Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description

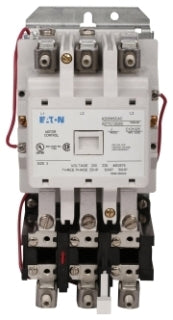

A200M3CACD
A200M3CACD is a Cutler Hammer 3-pole motor starter designed for industrial motor control applications with a 90 amp continuous rating and 600VAC voltage capacity.This non-reversing NEMA Size 3 starter features a 110/120V coil voltage compatible with 50/60 Hz power, Type B bimetallic overload relay with manual reset, and vertical mounting screw termination. It supports full-voltage across-the-line starting and stopping of squirrel cage motors, providing reliable motor protection and ambient compensation.
- Amperage: 90 Amps continuous
- Voltage: 600 VAC maximum
- Poles: 3
- Mounting Type: Vertical screw termination
- Interrupt Rating: Not specified
- Series/Frame: A200 Series, NEMA Frame Size 3
- Trip Unit: Type B bimetallic overload relay, manual reset
- Coil Voltage: 110/120 VAC, 50/60 Hz
- Enclosure: Open
- Motor Power Rating: Up to 50 HP at 480/600V
- Certifications: Eaton/Cutler Hammer standard industrial certifications
Specifications
- Part Number: A200M3CACD
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Nema Rating : 3
Product Data
- UPC : 786678232508
- GTIN : 00786678232508
- Country of Origin : Dominican Republic
- Dimensions : 6.75 in x 9.94 in x 4.63 in (Length/Depth x Height x Width)
- Weight : 115
- Certification : CSA Certified,UL Listed
