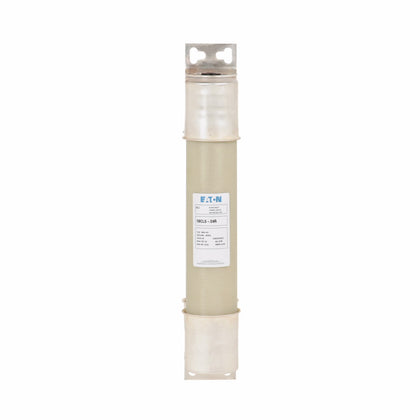

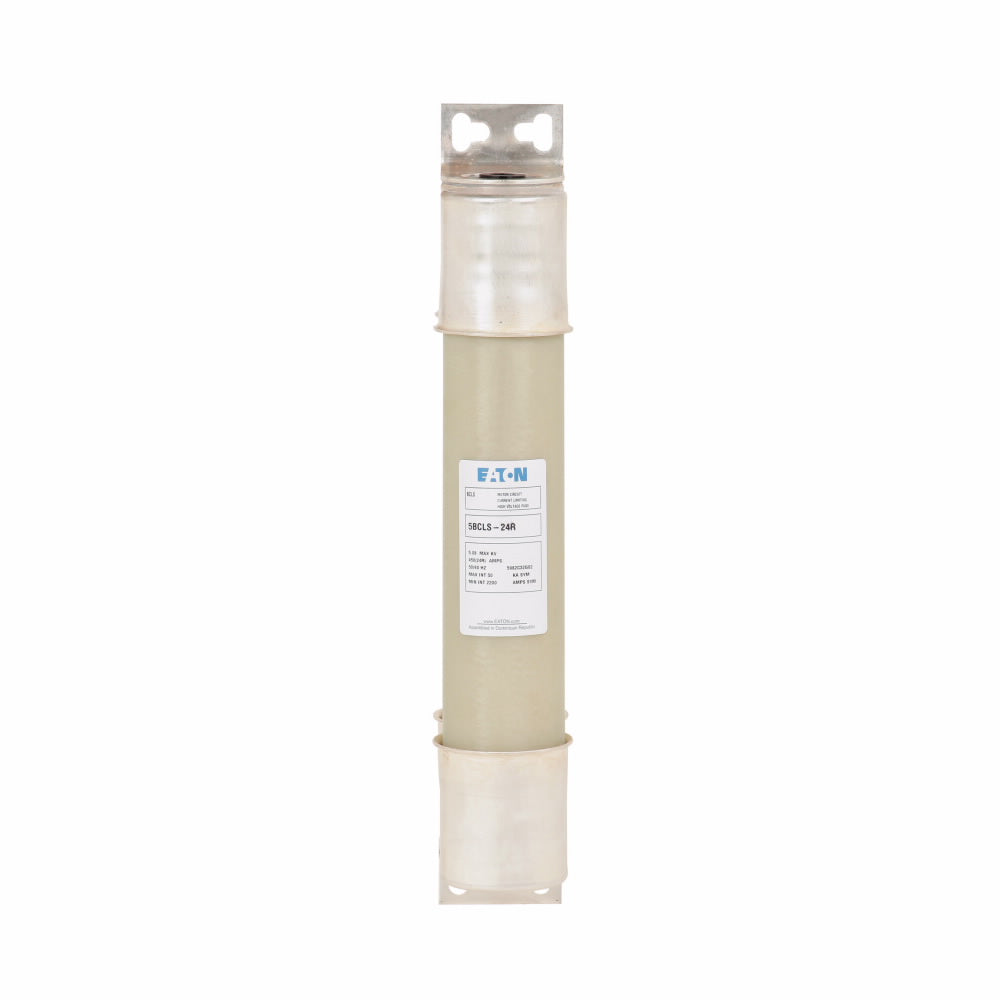

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Medium Voltage Fuse
- Rated current
- 100
- Voltage
- 8300V
- Interrupting rating
- [email protected]
- Class rating
- C
- Barrels
- 1
- Diameter
- 2 in
- Clip Center
- 12
- UPC
- 051712530873
- Dimensions
- 15.9 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight
- 9
Product description & additional details
8CLS-3R
8CLS-3R is a Eaton Bussmann series 100 amp, 7.2 kV single barrel CLS fuse with a 3R frame designation and 50 kA interrupting rating. It is designed for motor circuit protection and requires a fuse holder for mounting.
This fuse features a cartridge type construction suitable for medium voltage applications, providing reliable motor start protection. It meets industry standards for interrupting capacity and is part of Eaton's CLS series known for consistent performance in electrical circuit protection.
- Key Specifications
- Amperage: 100A
- Voltage Rating: 7.2 kV AC
- Poles: Single barrel
- Mounting Type: Requires fuse holder
- Interrupting Rating: 50 kA RMS Symmetrical
- Series/Frame: CLS, 3R designation
- Fuse Type: Cartridge
- Application: Motor start protection
- Certifications: Meets Eaton Bussmann series standards
- Part Number: 8CLS-3R
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Voltage : 8300
- Amperage : 100
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : C
- Barrels : 1
- Clip Center : 12
- UPC : 051712530873
- Dimensions : 15.9 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 9
