Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

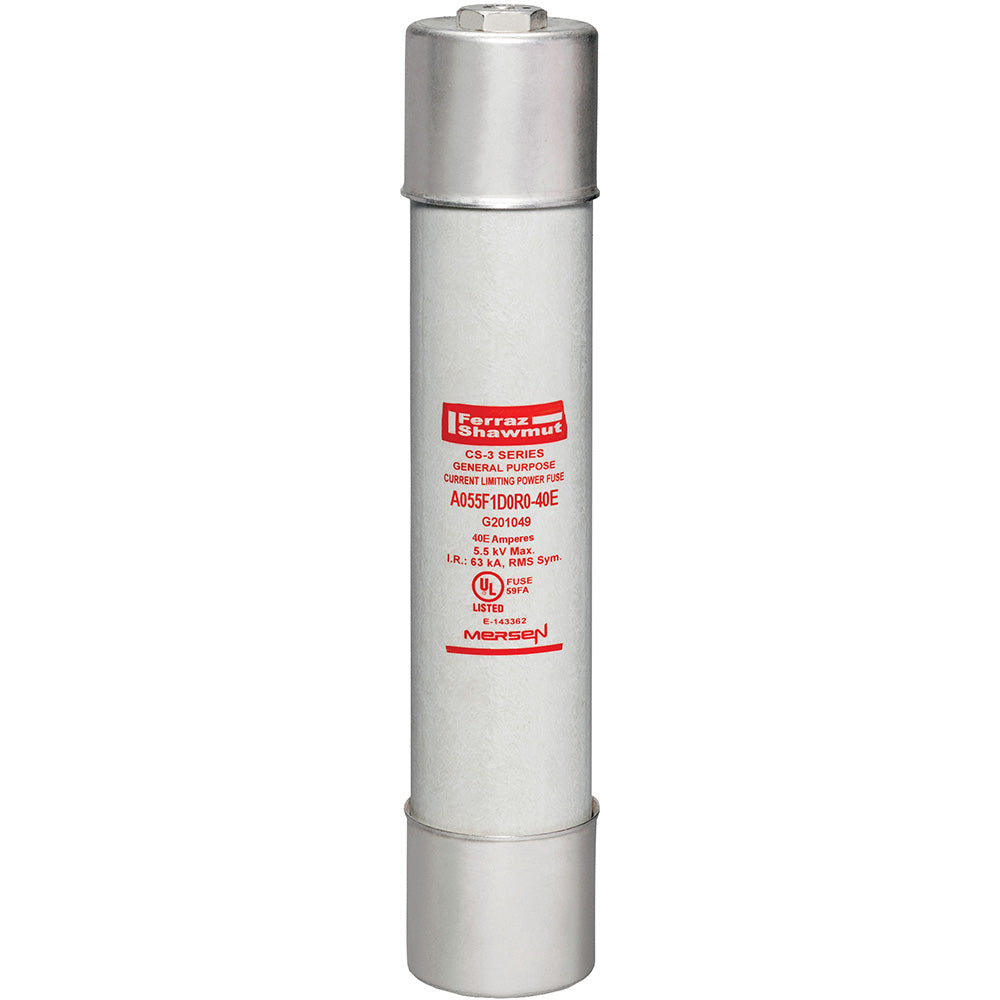

A055F1D0R0-40E
A055F1D0R0-40E is a medium voltage fuse designed for transformer protection and general power distribution applications. This fuse features a 5500VAC voltage rating and a 40A current rating, making it suitable for demanding electrical environments. The Mersen A055F1D0R0-40E is a Class E-rated, ferrule mount fuse with a visual indicator for easy status monitoring. It is engineered to withstand transformer magnetizing inrush currents and is compatible with standard fuse holders. The fuse has a 3-inch diameter barrel and is designed for reliable, long-term performance in industrial and commercial installations.
- Manufacturer: Mersen
- Part Number: A055F1D0R0-40E
- Amperage Rating: 40A
- Voltage Rating: 5500VAC
- Interrupt Rating: 63kA at 5500VAC
- Mounting Type: Ferrule Mount
- Series: CS-3
- Indicator Type: Visual Indicator
- Barrel Diameter: 3 inches
- Application: Transformer Protection
- Termination Style: Clip
- UL Listed
Specifications
- Part Number: A055F1D0R0-40E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CS-3 Series
- Type : A055F1D
- Voltage : 5500
- Amperage : 40
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 078200180419
- GTIN : 00782001804190
- Country of Origin : Mexico
- Dimensions : x 15.88 in x
- Weight : 7
