Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

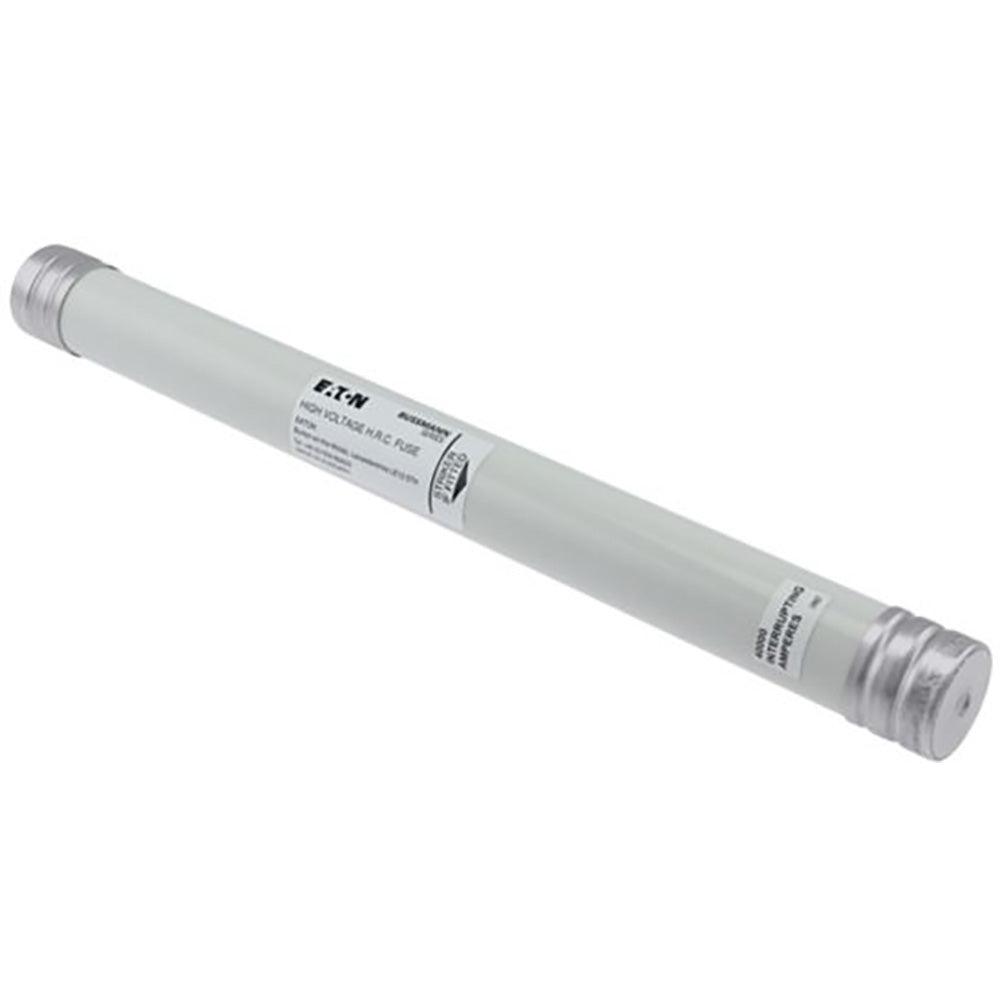

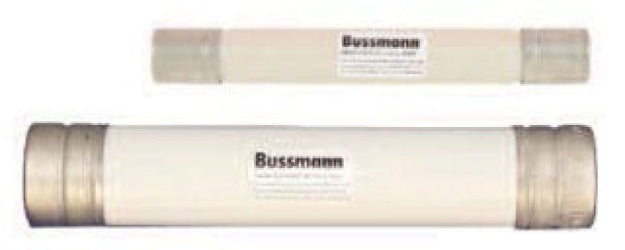

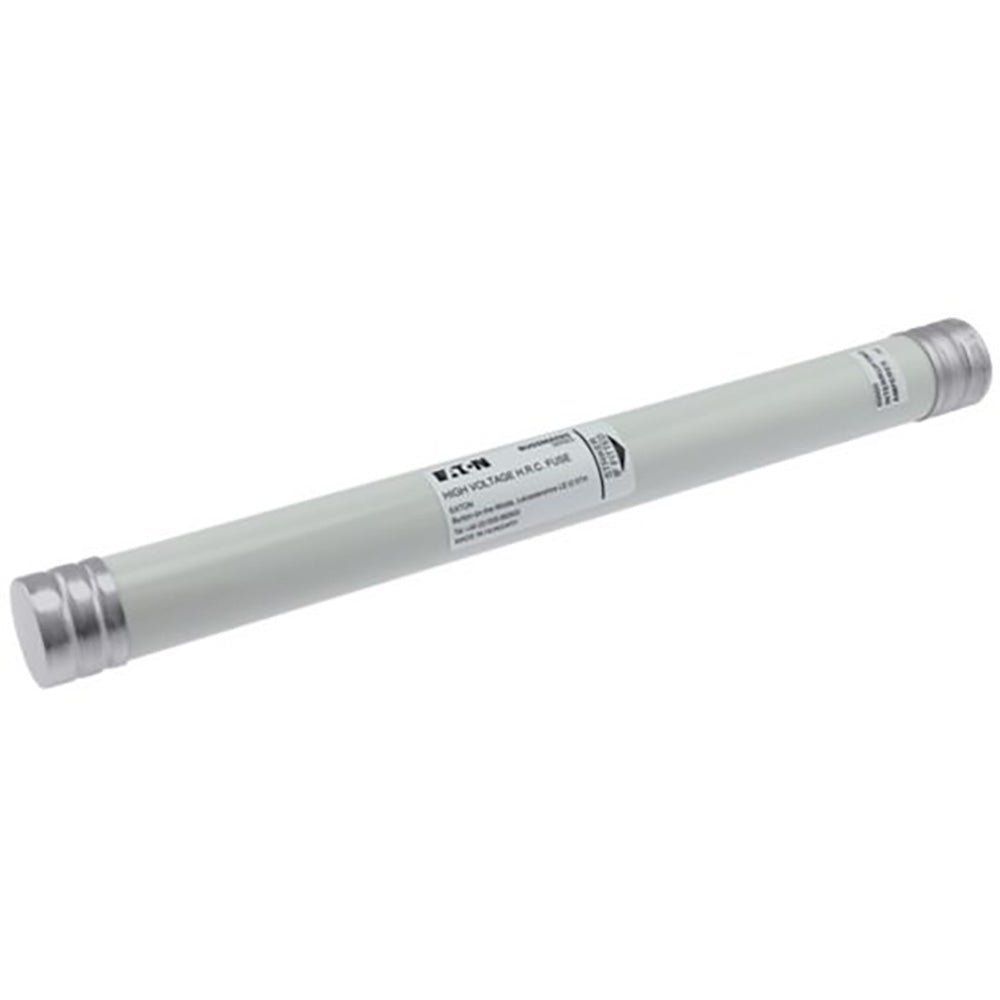

38CAVH2E
38CAVH2E is a Bussmann series medium voltage fuse designed for reliable circuit protection in demanding electrical environments. This fuse is engineered for use in medium voltage applications and provides dependable backup protection for auxiliary circuits. The 38CAVH2E features a 1 barrel construction with ferrule end connections and a non-indicating fuse indicator. It is rated for 38 kV AC and 2 A, with a physical size of 440 x 41.3 mm. The fuse is suitable for both IEC and US standards, making it a versatile solution for a variety of installations.
- Part Number: 38CAVH2E
- Manufacturer: Eaton
- Series: Bussmann
- Amperage: 2 A
- Voltage: 38 kV AC
- Barrels: 1
- Connection: Ferrule end x ferrule end
- Indicator Type: Non Indicating
- Mounting Type: Standard
- Standards: IEC, US
- Physical Size: 440 x 41.3 mm
- Diameter: 2 in
Specifications
- Part Number: 38CAVH2E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CAV
- Type : CAV
- Voltage : 38000
- Amperage : 2
- AIC rating : 40kA@38kV
- Diameter : 1.63
- Class Rating : E
- Barrels : 1
- Clip Center : 16.12
Product Data
- UPC : 051712843683
- GTIN : 00051712843683
- Country of Origin : United Kingdom
- Dimensions : 440 mm x 41.3 mm x 41.3 mm (Length/Depth x Height x Width)
- Weight : 2.76
