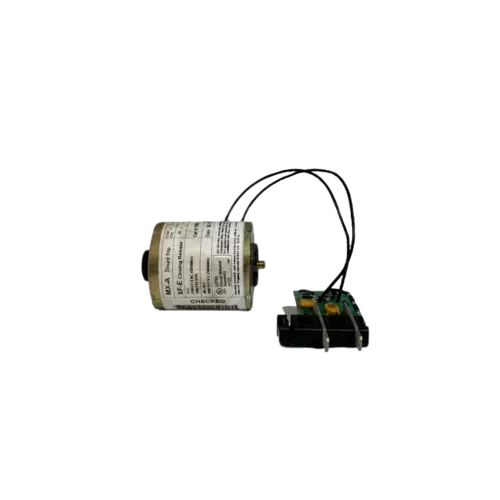

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Merlin Gerin
- Sub-Category
- Closing Coil
- Series
- Masterpact
- Frame
- XF
- Control Voltage Minimum
- 24
- Compatible Frames
- MP
- Control Voltate Maximum
- 24
- Weight
- 2
Product description & additional details
685650
685650 is a Merlin Gerin closing release coil designed for use with MP frame circuit breakers, providing reliable operation for circuit breaker closing functions. This accessory is engineered for compatibility with Masterpact series insulated case circuit breakers and is commonly used in industrial and commercial power distribution applications. The 685650 closing release coil operates at 24V DC, ensuring dependable performance in demanding environments. It is designed for easy integration into existing circuit breaker systems, supporting efficient and safe operation.
- Part Number: 685650
- Manufacturer: Merlin Gerin
- Voltage: 24V DC
- Series/Frame: MP Frame
- Compatible With: Masterpact Circuit Breakers
- Function: Closing Release Coil
- Mounting Type: Circuit Breaker Accessory
- Application: Insulated Case Circuit Breakers
Specifications
- Part Number: 685650
- Manufacturer : Merlin Gerin
- Brand : Merlin Gerin
- Category : Circuit Breaker
- Item Subcategory : Closing Coil
- Family : Masterpact
- Type : XF
- Control Voltage Minimum : 24
- Compatible Frames : MP
- Control Voltate Maximum : 24
Product Data
- Weight : 2
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
