Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Merlin Gerin
- Sub-Category
- Closing Coil
- Series
- Masterpact
- Frame
- XF
- Control Voltage Minimum
- 110
- Compatible Frames
- MP
- Control Voltate Maximum
- 127
- Weight
- 2
Product description & additional details
685654

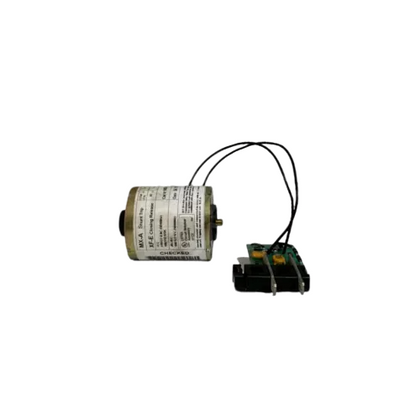

685654 is a Merlin Gerin MX-A shunt trip circuit breaker closing coil designed for MP frame circuit breakers with control voltage operation. This accessory provides reliable closing release functionality for circuit breakers requiring a shunt trip coil.
The 685654 closing coil operates at a control voltage range of 110 to 127 volts AC (50/60 Hz) and 100 to 110 volts DC. It is compatible with all MP frame circuit breakers and is used to remotely close the breaker via an electrical signal. This coil is essential for applications requiring remote or automatic circuit breaker operation and is manufactured by Merlin Gerin, a Schneider Electric brand known for quality electrical components.
- Key Specifications
- Manufacturer: Merlin Gerin
- Part Number: 685654
- Type: MX-A Shunt Trip Closing Coil
- Compatible Frame: MP Frame Circuit Breakers
- Control Voltage AC: 110-127 V (50/60 Hz)
- Control Voltage DC: 100-110 V
- Function: Circuit Breaker Closing Release
- Application: Remote or Automatic Breaker Closing
- Part Number: 685654
- Manufacturer : Merlin Gerin
- Brand : Merlin Gerin
- Category : Circuit Breaker
- Item Subcategory : Closing Coil
- Family : Masterpact
- Type : XF
- Control Voltage Minimum : 110
- Compatible Frames : MP
- Control Voltate Maximum : 127
- Weight : 2
