Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6340-6JQ31-0AA0

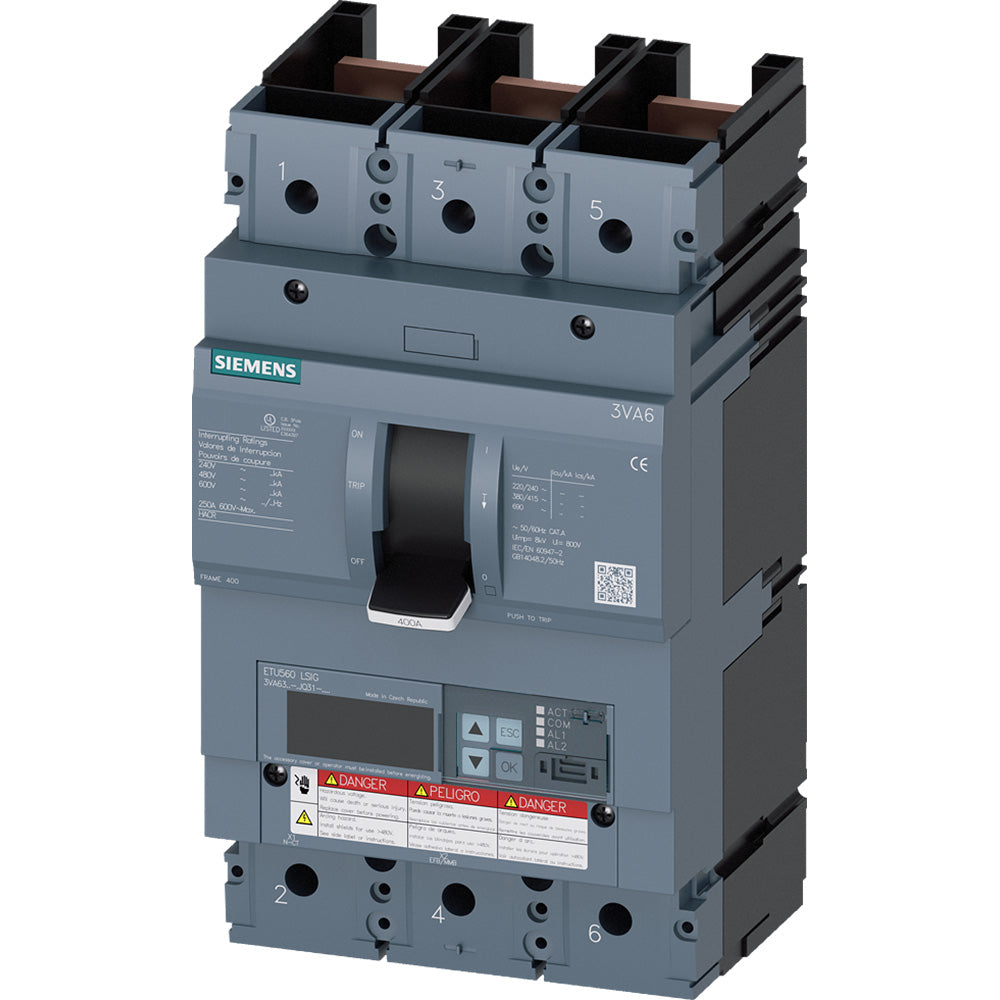

3VA6340-6JQ31-0AA0 is a Siemens 3-pole circuit breaker rated for 400 amps and 600 volts with a 65kA interrupt rating at 480V, designed for reliable power distribution protection.This Siemens 3VA63 frame circuit breaker features an electronic trip unit (ETU560) with LSIG protection and adjustable overload settings from 160A to 400A. It offers a high breaking capacity (Class H) of 65kA at 480V and is UL listed for industrial applications. The breaker is suitable for line protection with a 3-pole configuration and includes mounting provisions for easy installation.
- Key Specifications
- Amperage: 400A
- Voltage: 600V
- Number of Poles: 3
- Interrupt Rating: 65kA at 480V
- Frame/Series: 3VA63
- Trip Unit: Electronic Trip Unit ETU560 with LSIG
- Mounting Type: Panel mount
- Certifications: UL Listed
- Overload Protection Range: 160A to 400A adjustable
Specifications
- Part Number: 3VA6340-6JQ31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 4
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631312
- GTIN : 00804766313127
- Weight : 2
- Standards : UL Listed
- Certification : UL Listed
