Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6325-5JQ31-0AA0

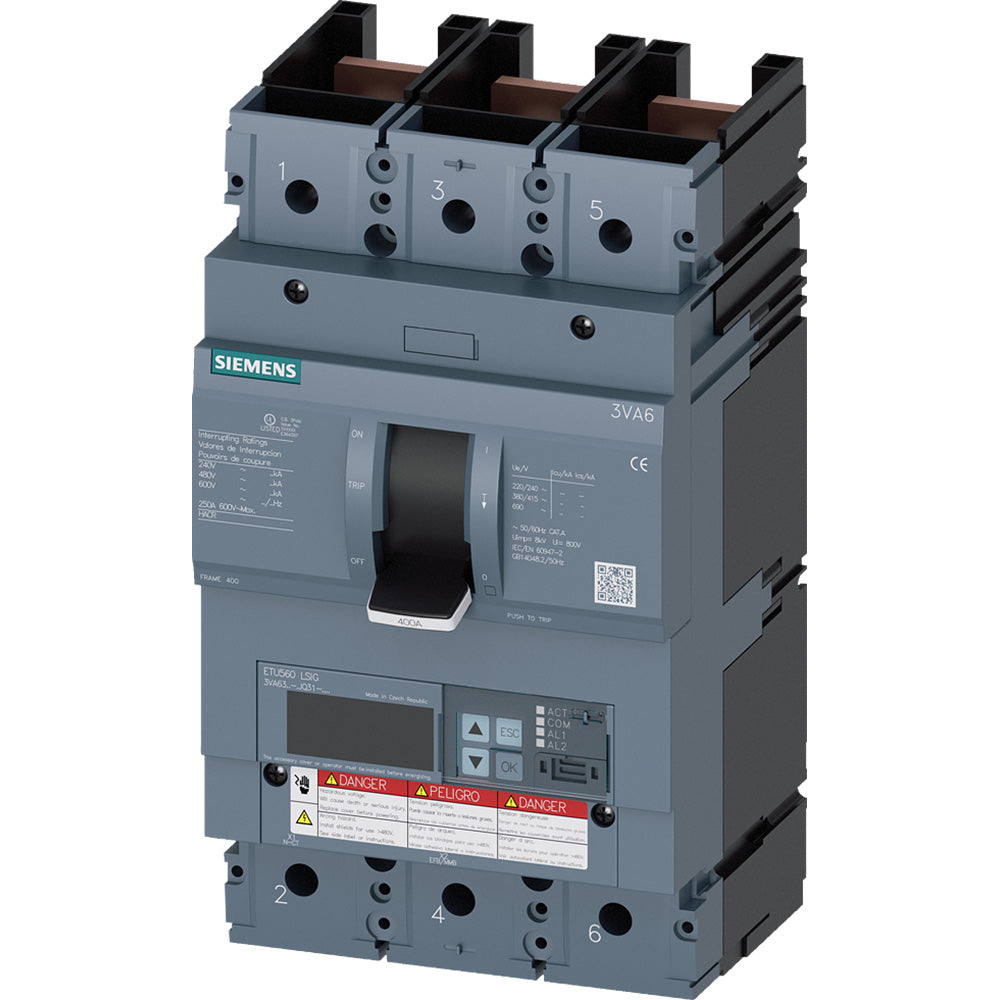

3VA6325-5JQ31-0AA0 is a Siemens 3-pole molded case circuit breaker designed for system protection with a 250A rated current and 35kA breaking capacity at 480V.This circuit breaker features the 3VA6 UL Frame 400, ETU560 electronic trip unit with LSIG protection, and is suitable for line protection applications.
- Rated current: 250A
- Number of poles: 3
- Breaking capacity: 35kA at 480V (Class M)
- Frame type: 3VA6 UL Frame 400
- Trip unit: ETU560 with LSIG protection
- Overload protection range: 100A to 250A
- Insulation voltage: 800V
- Operating voltage: up to 600V AC
- Mounting type: Molded case
- Certifications: UL listed, HACR type
Specifications
- Part Number: 3VA6325-5JQ31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 4
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631466
- GTIN : 00804766314667
- Weight : 10
- Standards : UL Listed
- Certification : UL Listed
