Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5212-6ED31-0AA0

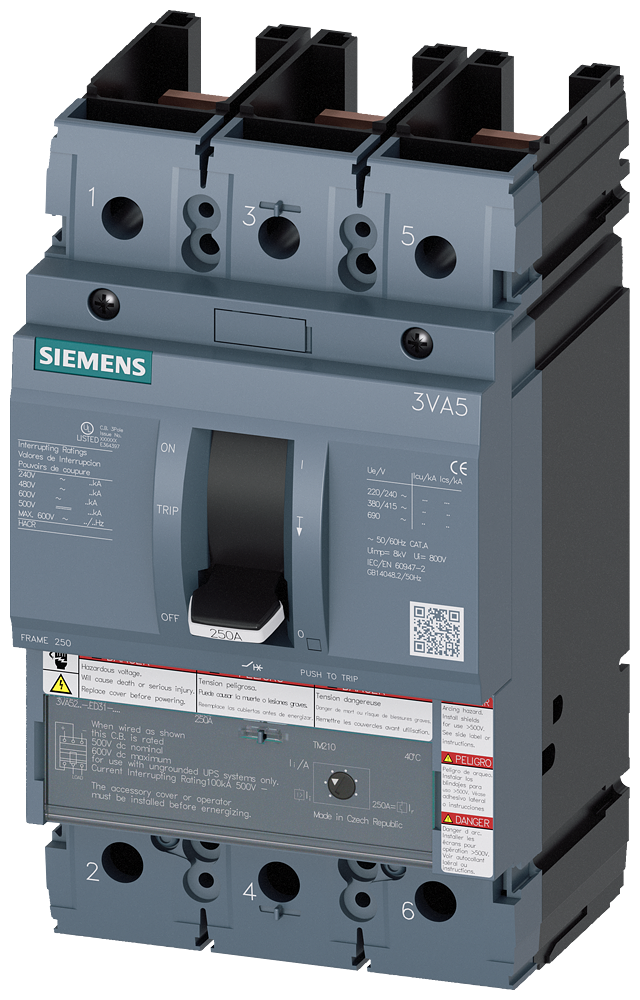

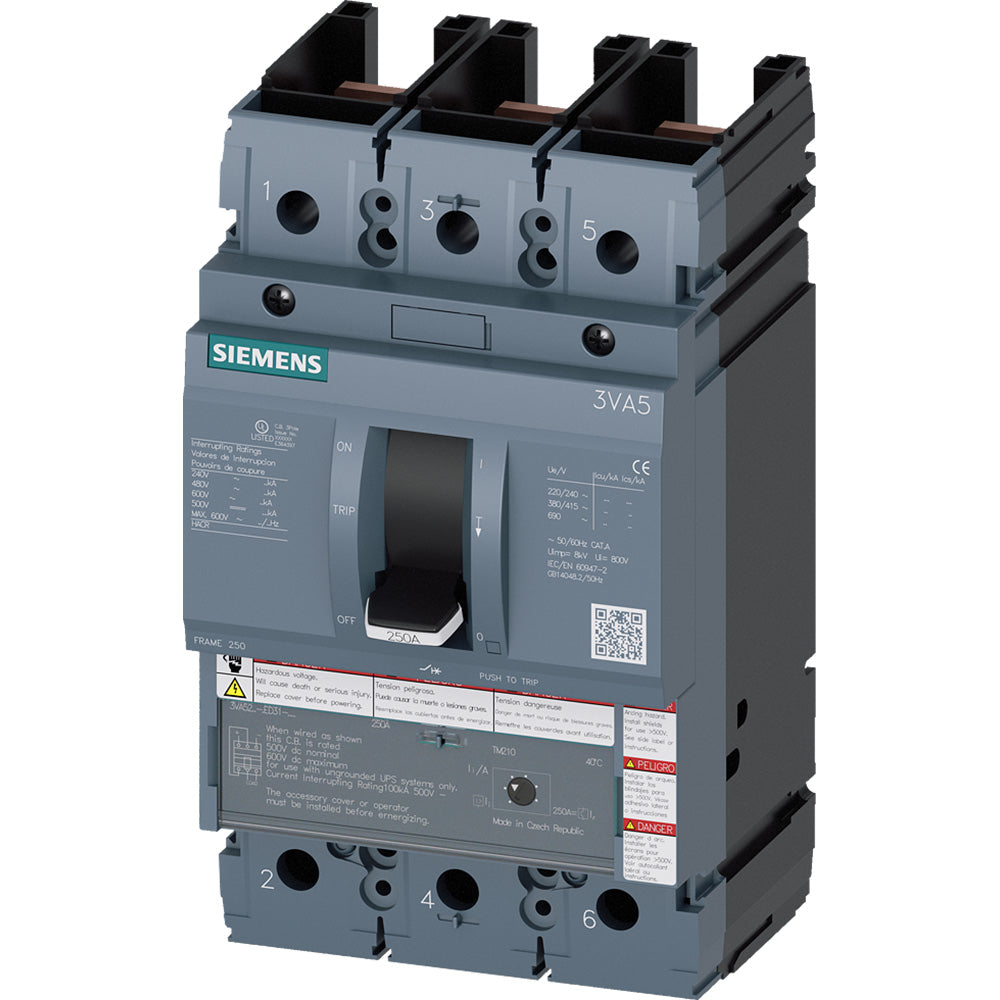

3VA5212-6ED31-0AA0 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 125 amps and 600 volts AC. It features a 3VA5 series frame and is designed for reliable circuit protection.3VA5212-6ED31-0AA0 includes long time and instantaneous trip functions with a high interrupting rating of 65kA at 480V. It uses a feed-thru connection type and is UL and IEC certified, suitable for industrial and commercial electrical applications.
- Manufacturer: Siemens
- Series/Frame: 3VA5
- Amperage: 125A
- Voltage Rating: 600V AC
- Poles: 3
- Interrupting Rating: 65kA @ 480V
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous functions
- Connection Type: Feed-Thru
- Certifications: UL, IEC
- Mounting Type: Bolt-On
Specifications
- Part Number: 3VA5212-6ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476630854
- GTIN : 00804766308543
- Weight : 2
- Standards : UL Listed
- Certification : UL Listed
