Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5140-6EC31-0AA0

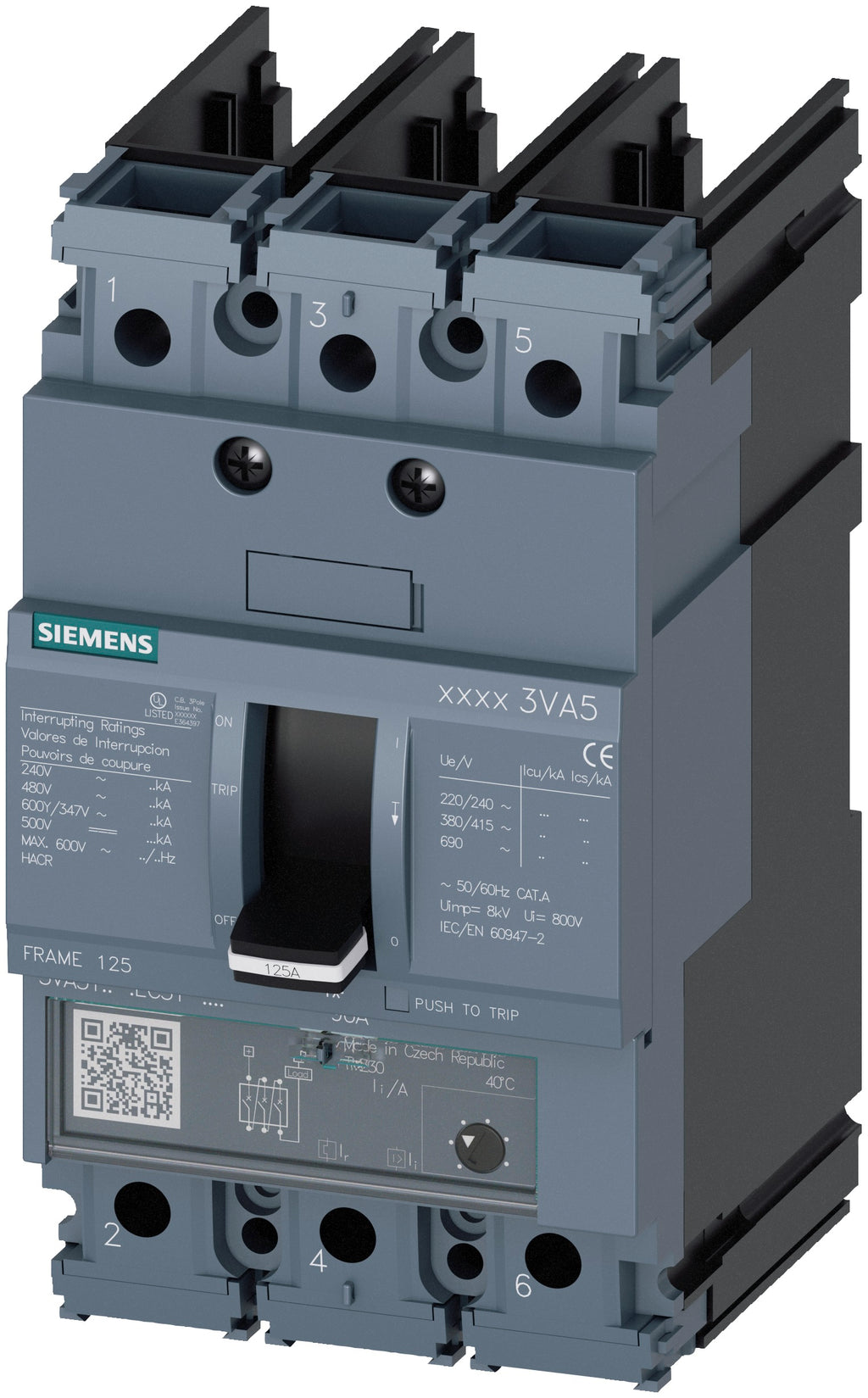

3VA5140-6EC31-0AA0 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 40 amps and 600 volts. It features a high interrupting rating and advanced protection functions.This Siemens 3VA5 series circuit breaker has a UL Frame 125 with a breaking capacity of 65 kA at 480V. It includes long time and instantaneous (LI) trip functions, feed-thru connection type, and is suitable for line protection. The breaker is certified to UL and IEC standards and designed for reliable overload and short-circuit protection.
- Amperage: 40A
- Voltage Rating: 600V AC
- Poles: 3
- Frame: UL Frame 125
- Interrupting Rating: 65 kA @ 480V
- Trip Unit: Thermal Magnetic with LI functions
- Connection Type: Feed-Thru
- Series: Siemens 3VA5
- Certifications: UL, IEC
- Mounting Type: DIN Rail compatible
Specifications
- Part Number: 3VA5140-6EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM230
Product Data
- UPC : 804766300554
- GTIN : 00804766300554
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.094
- Standards : UL Listed
- Certification : UL Listed
