Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

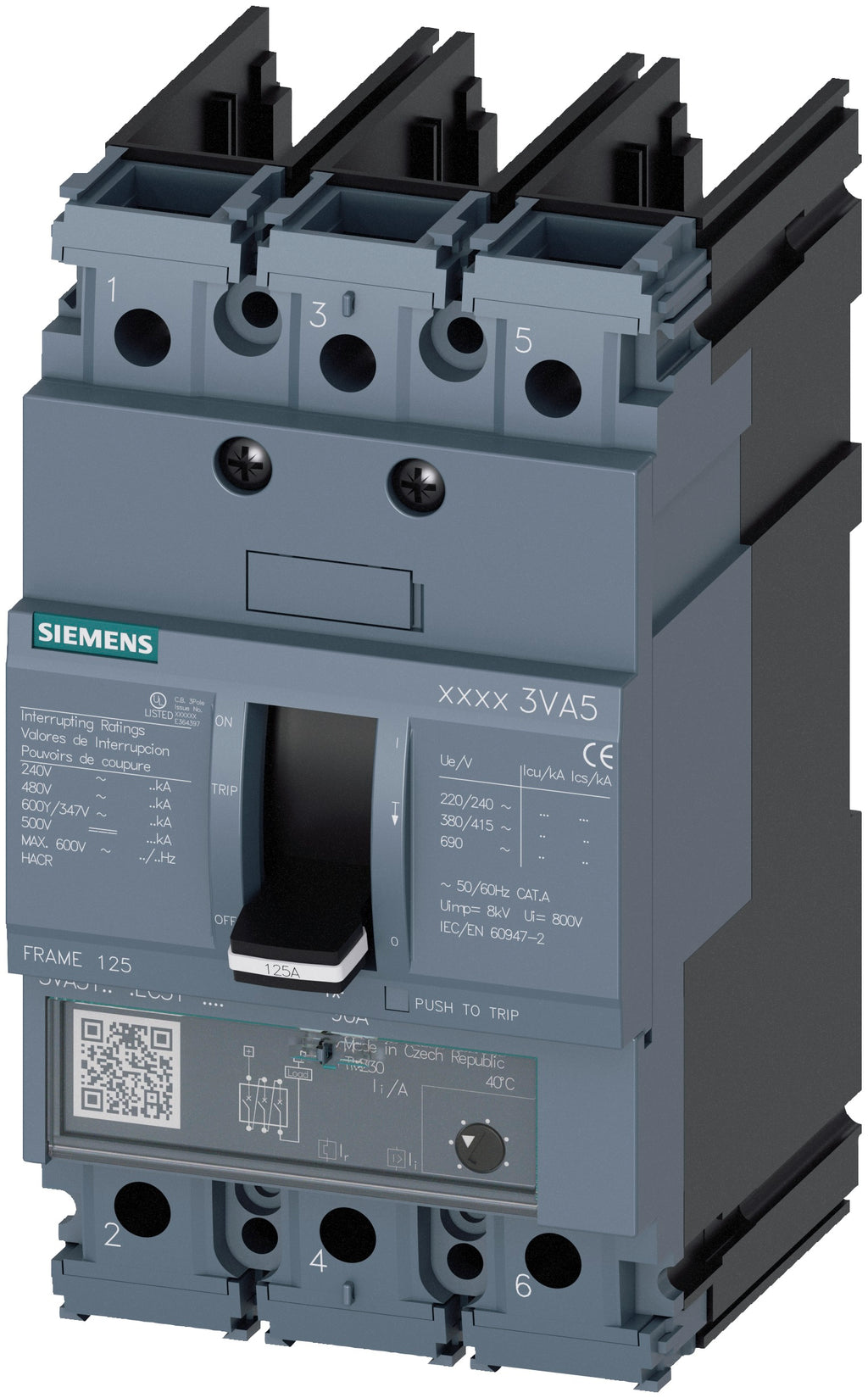

3VA5130-4EC31-0AA0
3VA5130-4EC31-0AA0 is a Siemens 3VA5 series molded case circuit breaker rated at 30 Amps, 600V, with 3 poles and thermal magnetic protection.This Siemens 3VA5130-4EC31-0AA0 features feed-thru connections, LI long time and instantaneous trip functions, and a 25kA interrupting rating at 480V. It belongs to the 3VA5 frame series, suitable for AC applications in residential, commercial, and industrial settings with bolt-on mounting and load side lug terminals.Key Specifications
- Manufacturer: Siemens
- Series/Frame: 3VA5
- Amperage: 30A
- Voltage: 600V AC
- Poles: 3
- Protection: Thermal Magnetic
- Trip Unit: LI (Long Time, Instantaneous)
- Interrupt Rating: 25kA at 480V
- Connection: Feed-Thru
- Approvals: UL, IEC
Specifications
- Part Number: 3VA5130-4EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM230
Product Data
- UPC : 804766300479
- GTIN : 00804766300479
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.072
- Standards : UL Listed
- Certification : UL Listed
