Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5125-4ED11-0AA0

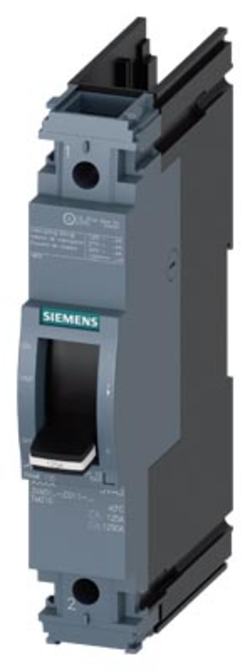

3VA5125-4ED11-0AA0 is a Siemens molded case circuit breaker designed for reliable protection in electrical distribution systems.This circuit breaker features a 25 ampere rating with a maximum switching voltage of 415 VAC and 125 VDC. It is a single-pole device with a thermal magnetic trip unit providing overload and short-circuit protection. The breaker has an interrupting capacity of 25 kA at 277 V and belongs to the 3VA5 UL Frame 125 series. It is suitable for line protection applications and operates within a temperature range of -25 to 70 degrees Celsius.
- Key Specifications
- Amperage: 25 A
- Voltage Rating: 415 VAC / 125 VDC
- Poles: 1
- Interrupt Rating: 25 kA @ 277 V
- Trip Unit: Thermal Magnetic (TM210)
- Series/Frame: 3VA5 UL Frame 125
- Mounting Type: Molded Case
- Operating Temperature: -25 to 70 ¡C
- Certifications: UL Listed
Specifications
- Part Number: 3VA5125-4ED11-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 415V AC
- Amperage : 25
- Phase : 3
- Poles : 1
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766299872
- GTIN : 00804766299872
- Country of Origin : Mexico
- Dimensions : 5.512 x 1.339 x 4.252 inch
- Weight : 0.838 lb
- Standards : UL Listed
- Certification : UL Listed
