Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5112-5ED31-0AA0

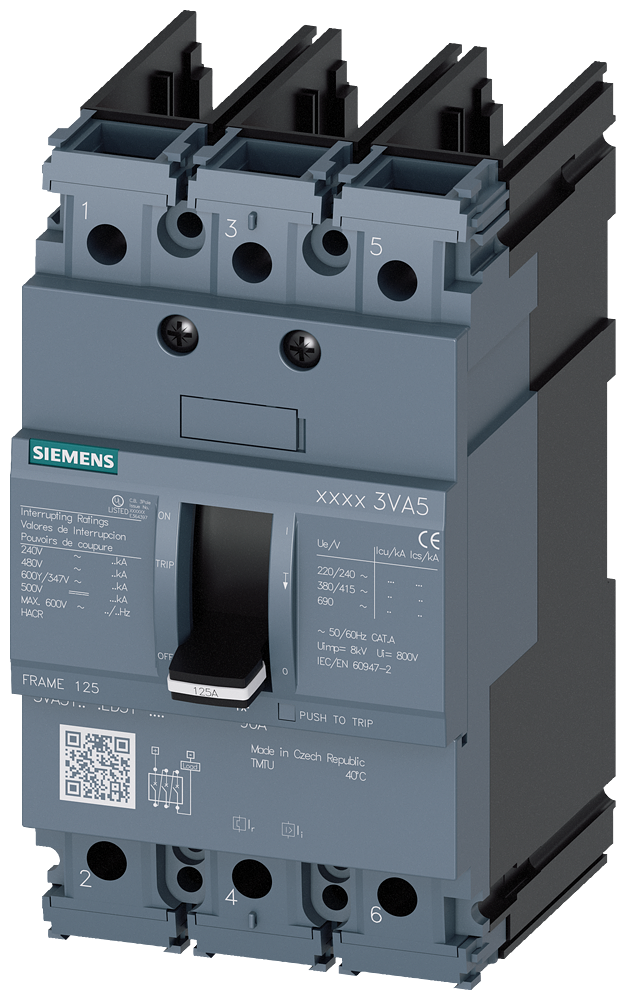

3VA5112-5ED31-0AA0 is a Siemens 3VA5 series molded case circuit breaker rated at 125A with 3 poles and 35kA interrupt rating at 480V.This UL-listed circuit breaker features a thermal-magnetic TM210 trip unit with fixed thermal and fixed magnetic settings, line protection, and feed-thru fixed mounting. It supports 690V AC / 500V DC operational voltage, 50/60 Hz frequency, and IP40 enclosure type, with dimensions of 5.51 in H x 3 in W x 3.68 in D.
- Part Number: 3VA5112-5ED31-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA5, 125A frame
- Amperage Rating: 125A
- Number of Poles: 3
- Voltage Rating: 690V AC / 500V DC
- Interrupt Rating: 35kA @ 480V (Class M)
- Trip Unit: TM210, fixed thermal/magnetic (FTFM)
- Mounting Type: Fixed, feed-thru
- Frequency: 50/60 Hz
- Enclosure Type: IP40
Specifications
- Part Number: 3VA5112-5ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766301100
- GTIN : 00804766301100
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.083
- Standards : UL Listed
- Certification : UL Listed
