Product Info
- Manufacturer:Siemens
- Sub-Category:Shunt Trip
Description
3VA9978-0BL30

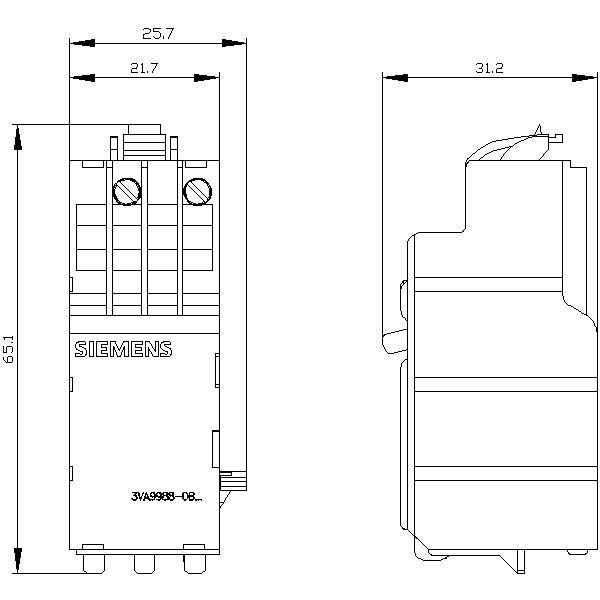

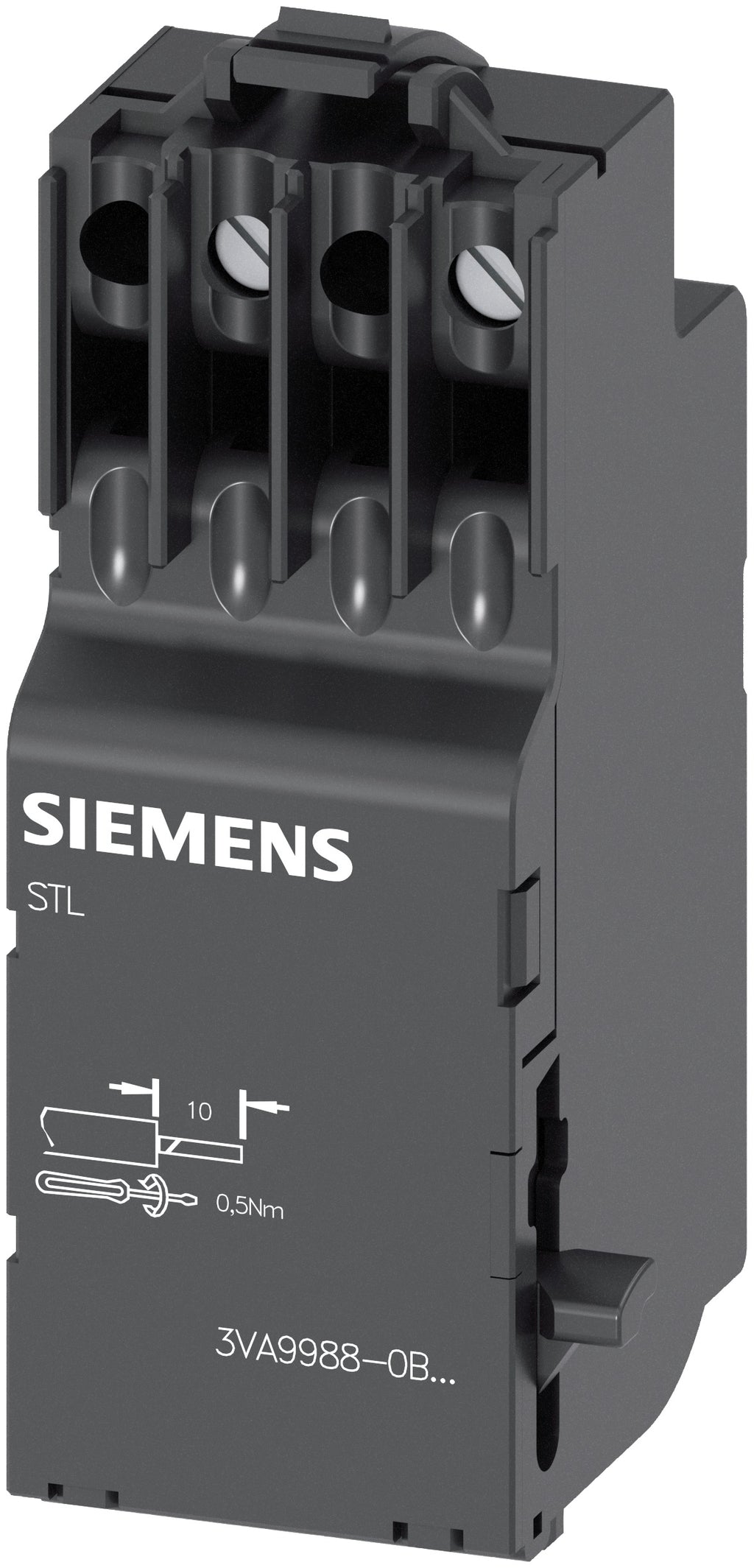

3VA9978-0BL30 is a Sentron shunt trip accessory designed for Siemens 3VA molded case circuit breakers. This left-mounted auxiliary release provides remote tripping capability and is rated for 24 VAC 50/60 Hz and 24-30 VDC operation. The shunt trip meets both IEC 60947-2 and UL 489 standards, making it suitable for global industrial and commercial power distribution applications. Dimensions are 65.1mm H x 25.7mm W x 31.2mm D with a net weight of 91 grams. Maximum apparent power consumption is 30 VA with maximum active power consumption of 45 W at DC. The unit features screw-type terminals with connectable conductor cross-section of 0.5 to 1.5 mm2 and tightening torque range of 0.4 to 0.5 N·m.
- Voltage Rating: 24 VAC 50/60 Hz / 24-30 VDC
- Product Type: Shunt Trip Accessory
- Mounting: Left
- Compatible Breakers: 3VA4, 3VA5, 3VA6 Series
- Color: Black
- Certifications: UL, IEC, RoHS
- Overvoltage Category: III
- Degree of Pollution: 3
- Surge Voltage Resistance: 4 kV
- Stripped Wire Length: 10 mm (IEC) / 0.4 in (UL)
- Country of Origin: Czech Republic
- UPC: 804766323492
Specifications
- Part Number: 3VA9978-0BL30
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Sentron Series
- Type : 3VA
- Voltage : 24VAC, 24-30VDC
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Control Voltage Minimum : 24
- Compatible Frames : 3VA
- Control Voltate Maximum : 30
Product Data
- UPC : 80476632349
- GTIN : 00804766323492
- Weight : 2 lb
- Standards : UL Listed
- Certification : UL Listed
