Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5111-6ED31-0AA0

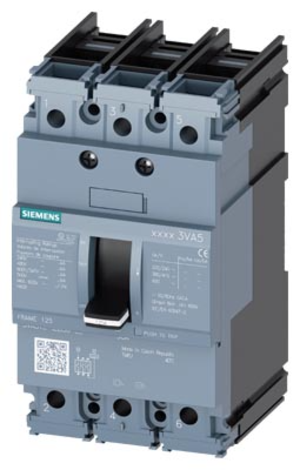

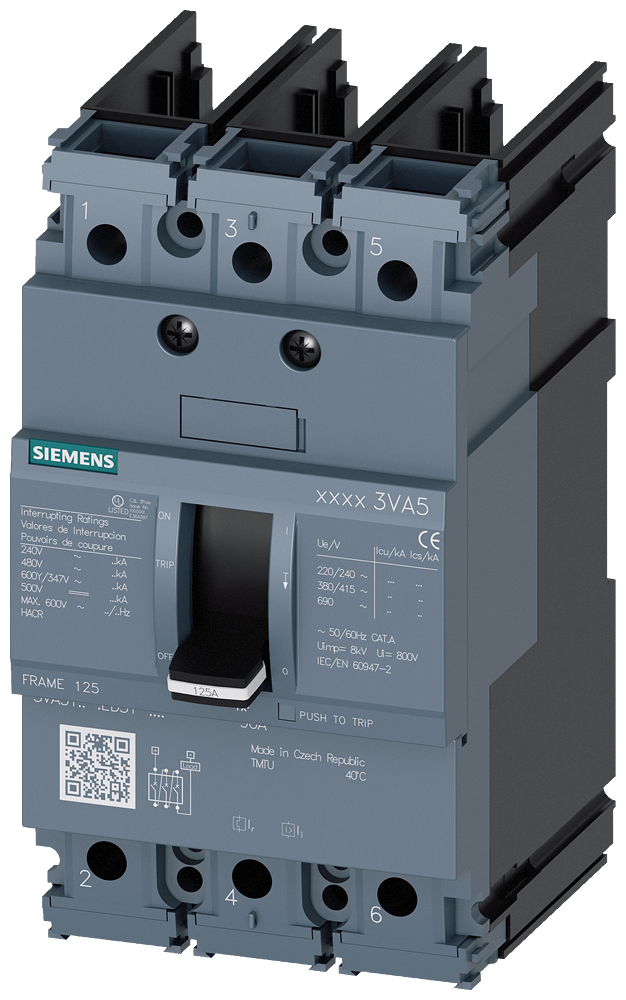

3VA5111-6ED31-0AA0 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 110 amps and 600 volts with a 3VA51 frame.3VA5111-6ED31-0AA0 features long time and instantaneous trip functions, a thermal magnetic trip unit, and a bolt-on mounting type. It has an interrupting rating of 65kA at 480V and 25kA at 600Y/347V, suitable for residential, commercial, and industrial applications. This breaker supports feed-thru connection and is UL listed with RoHS compliance.
- Key Specifications
- Amperage: 110A
- Voltage: 600V AC
- Poles: 3
- Frame Type: 3VA51
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Interrupting Rating: 65kA @ 480V, 25kA @ 600Y/347V
- Mounting Type: Bolt-On
- Connection Type: Feed-Thru
- Approvals: UL Listed
- Standards: RoHS Compliant
Specifications
- Part Number: 3VA5111-6ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766301025
- GTIN : 00804766301025
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.094
- Standards : UL Listed
- Certification : UL Listed
