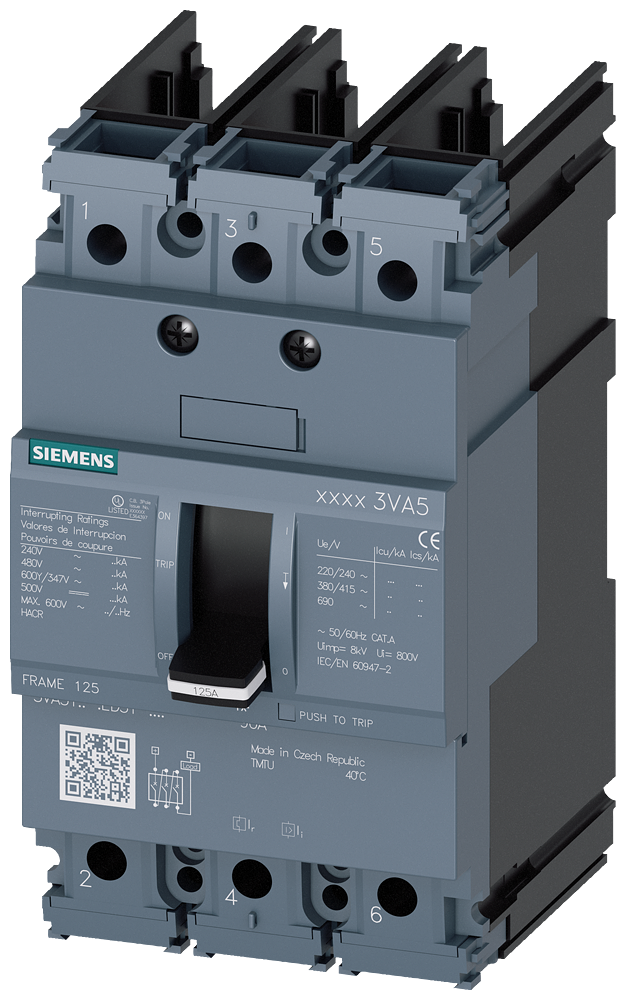

3VA5110-6ED31-0AA0 - Siemens 3VA5 Series 3-Pole 100A 600V Molded Case Circuit Breaker, 65kA Interrupt, Fixed Mount, Thermal Magnetic Trip, UL IEC

3VA5110-6ED31-0AA0

3VA5110-6ED31-0AA0 is a Siemens 3-pole molded case circuit breaker rated for 100 amps at 600 volts with thermal-magnetic protection and long-time and instantaneous trip functions.

This UL-approved circuit breaker features a 3VA51 frame with Class H breaking capacity of 65 kA at 480V and 25 kA at 600Y/347V. The TM210 trip unit provides fixed overload and instantaneous settings. The breaker includes load-side lug terminals and is suitable for reverse-fed applications in residential, commercial, and industrial installations.

• Part Number: 3VA5110-6ED31-0AA0
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Phase: 3
• Frame: 3VA51
• Interrupt Rating: 65 kA @ 480V
• Trip Unit: TM210 with Long Time and Instantaneous Functions
• Protection Type: Thermal Magnetic
• Connection Type: Feed-Thru with Load-Side Lugs
• Certifications: UL, IEC
• Temperature Rating: -40 to 80 degrees Celsius
• Weight: 2.138 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA5110-6ED31-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 690V AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766300967
• GTIN : 00804766300967
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.622 x 4.567 inch
• Weight : 1.874 lb
• Standards : UL Listed
• Certification : UL Listed
