3VA4195-6ED34-0AA0 - Siemens 3 Pole 15A 600Y/347V 480V Molded Case Circuit Breaker, 3VA41 Frame, Thermal Magnetic Trip, 25kAIC/65kAIC, UL Listed

3VA4195-6ED34-0AA0

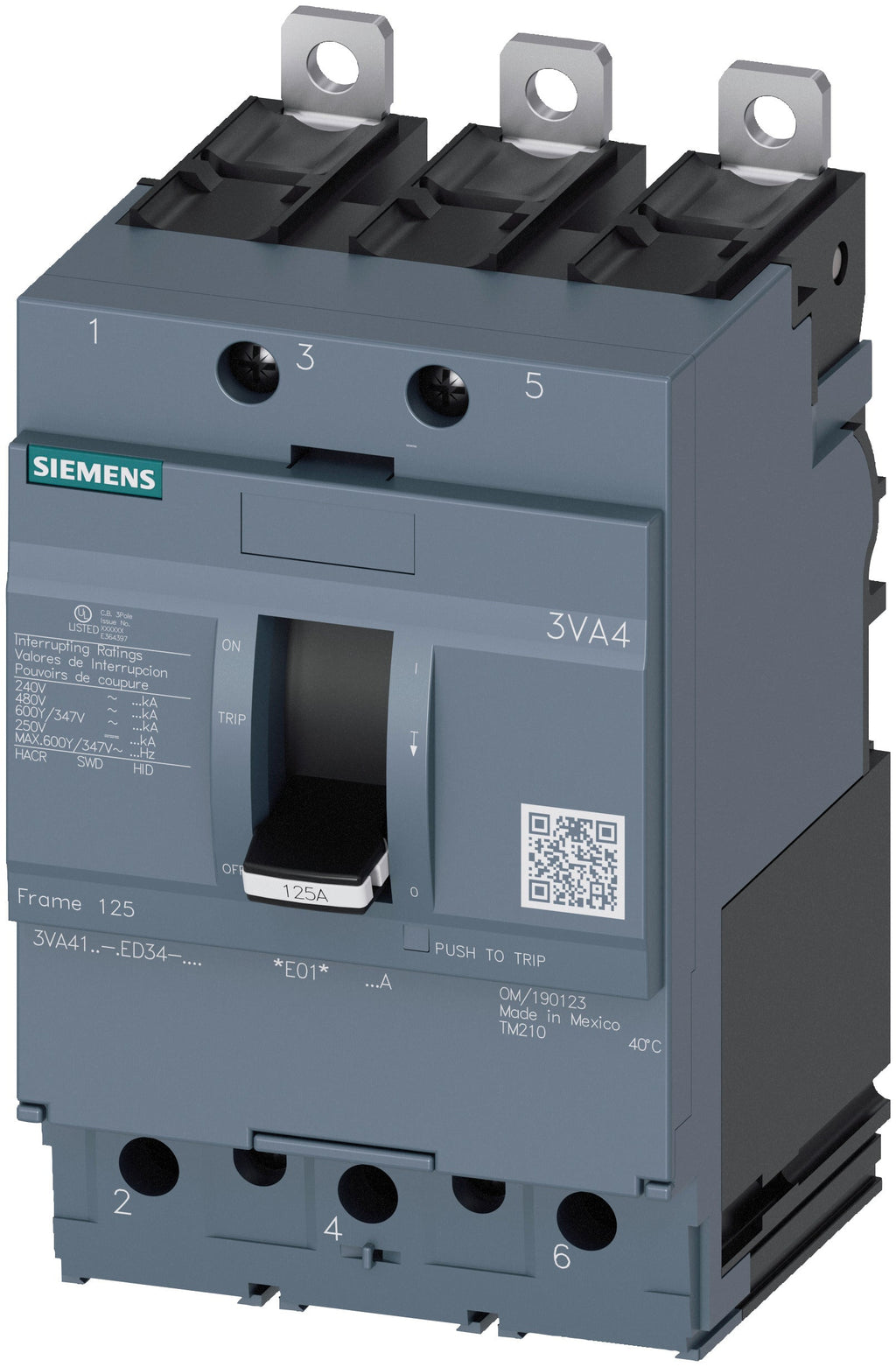

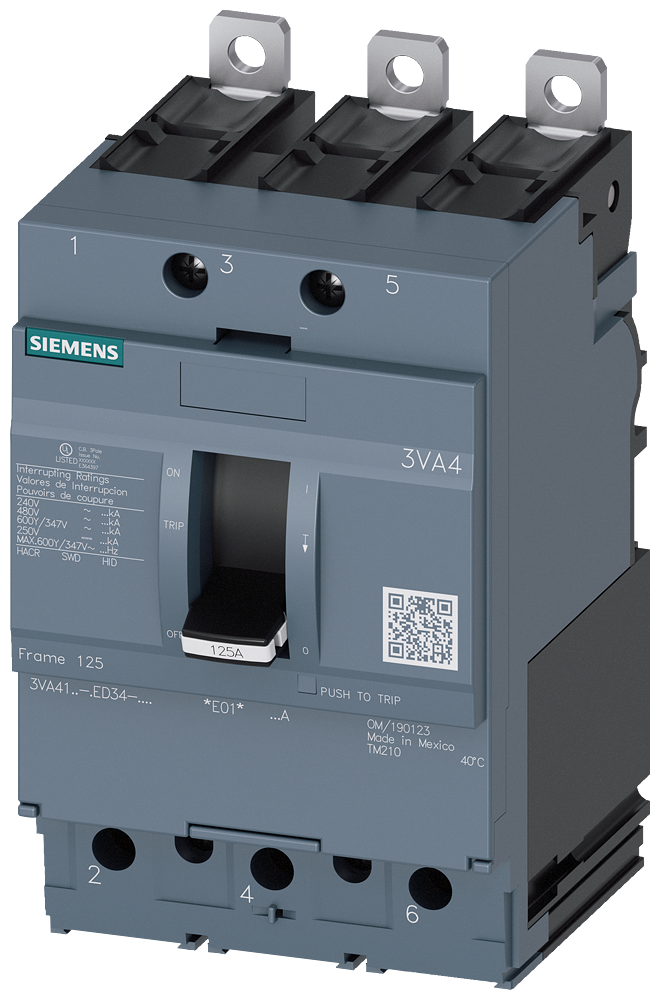

3VA4195-6ED34-0AA0 is a Siemens 3VA molded case circuit breaker rated at 15A, 3-pole, with thermal magnetic trip unit.

This UL-listed breaker features 3VA4 frame size 125, line protection via TM210 trip unit (LI function), fixed thermal overload at 15A (Ir=15A), and short-circuit protection at 20xIn. It offers bolt-on mounting with load side lug terminals, breaking capacity class H including 65kA at 480V and 25kA at 600Y/347V, rated operational voltage up to 600V AC. Suitable for HID and SWD applications per UL 489.

Key Specifications

• Part Number: 3VA4195-6ED34-0AA0
• Manufacturer: Siemens
• Amperage: 15A
• Voltage: 600V AC
• Poles: 3
• Frame: 3VA4 UL Frame 125
• Trip Unit: TM210, FTFM, Thermal Magnetic (LI)
• Overload Protection: Ir=15A fixed
• Short-Circuit Protection: Ii=20xIn
• Interrupt Rating: 65kA@480V, 25kA@600Y/347V, 100kA@240V
• Mounting: Bolt-On
• Terminal: Load Side Lug
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA4195-6ED34-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600V AC
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766943546
• GTIN : 00804766943546
• Country of Origin : Mexico
• Dimensions : 6.299 x 5.315 x 3.465 inch
• Weight : 1.638 lb
• Standards : UL Listed
• Certification : UL Listed
