Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4195-6ED14-0AA0

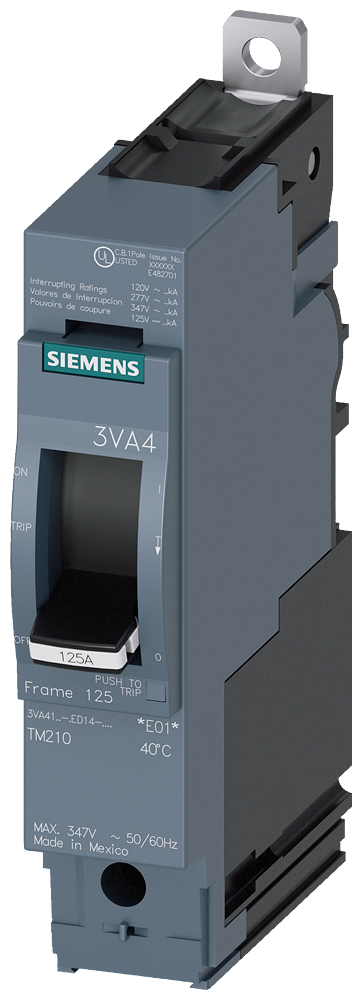

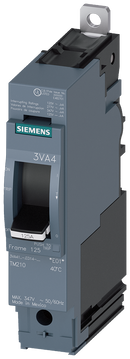

3VA4195-6ED14-0AA0 is a Siemens 3VA4 molded case circuit breaker rated at 15A, 1-pole, with line protection.
- Amperage: 15A
- Poles: 1
- Frame/Series: 3VA4 UL Frame 125
- Trip Unit: TM210, FTFM
- Overload Protection: Ir=15A fixed
- Short-Circuit Protection: Ii=20 x In
- Interrupt Rating: 65kA @ 277V (Class H)
- Operating Voltage: 415V AC
- Mounting Type: Clamp connection
- UL 489 Listed: HID Type, SWD Type
Specifications
- Part Number: 3VA4195-6ED14-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766941740
- GTIN : 0804766941740
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 1.339 inch
- Weight : 0.617
- Standards : UL Listed
- Certification : UL Listed
