Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2021-4EA10

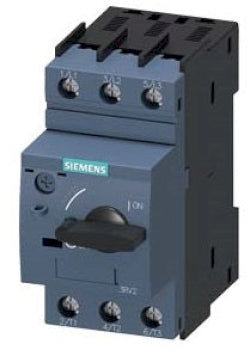

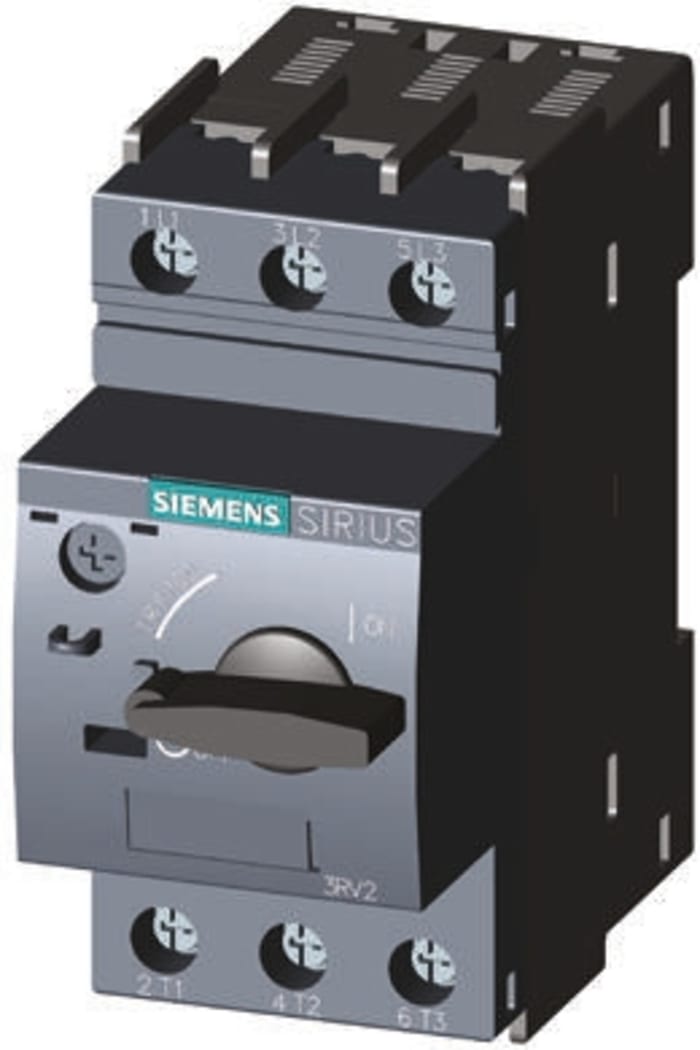

3RV2021-4EA10 is a Siemens motor protection circuit breaker designed for reliable motor control and protection.This Siemens SIRIUS 3RV2021-4EA10 circuit breaker features an adjustable amperage range from 27 to 32 amps with a 3-pole configuration. It provides Class 10 thermal magnetic trip protection, ensuring motor overload and short circuit protection. The device mounts easily on a standard 35mm DIN rail and includes screw terminals for secure wiring. It is phase loss sensitive and suitable for motor protection applications up to 690 VAC with a 4 kA interrupt rating.
- Amperage: Adjustable 27 to 32 A
- Voltage: Up to 690 VAC
- Poles: 3
- Trip Unit: Class 10 thermal magnetic
- Mounting Type: DIN rail
- Interrupt Rating: 4 kA
- Terminals: Screw connection
- Phase Loss Sensitive: Yes
- Series/Frame: S0 size
- UL Listed for motor protection
Specifications
- Part Number: 3RV2021-4EA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 66264392447
- GTIN : 00662643924473
- Weight : 0.836
