Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2021-1AA10

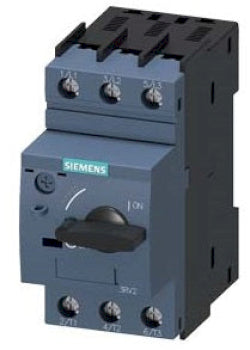

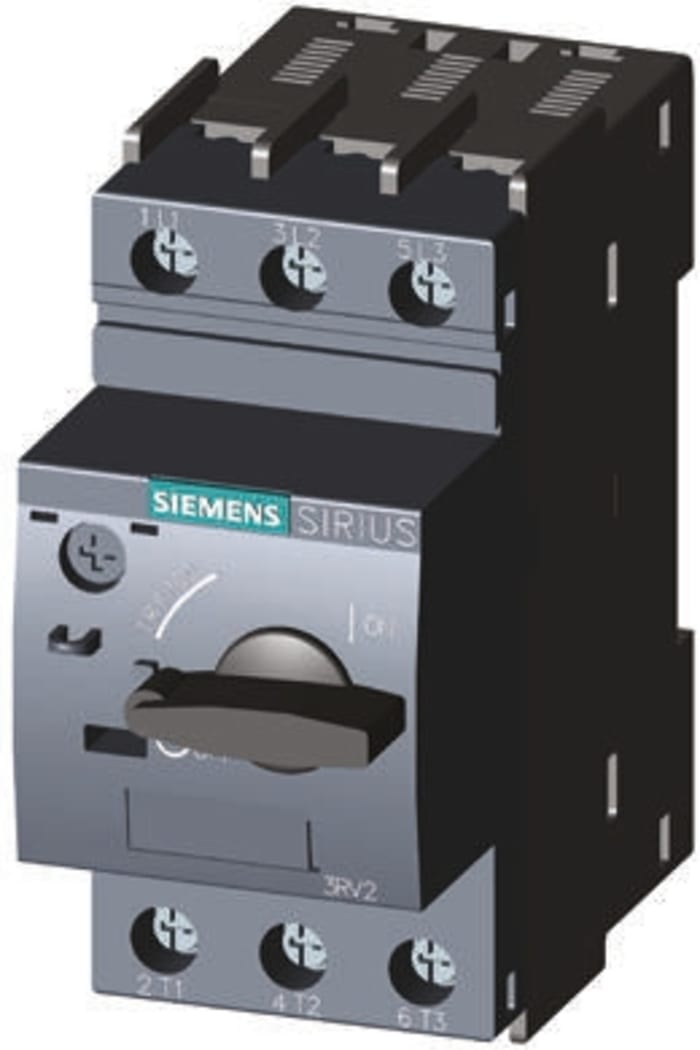

3RV2021-1AA10 is a Siemens 3-pole motor protection circuit breaker with adjustable current range from 1.1 to 1.6 amps and Class 10 overload trip characteristics.3RV2021-1AA10 provides reliable motor protection with a size S0 frame, screw terminal connections, and standard switching capacity. It supports operating voltages from 20 to 690 V AC and features a short-circuit breaking capacity of 100 kA at voltages up to 690 V. The device mounts on a standard 35 mm DIN rail and includes magnetic trip elements for short circuit protection. It is designed for use in motor control applications requiring Class 10 overload protection and complies with IEC standards for shock and surge resistance.
- Manufacturer: Siemens
- Part Number: 3RV2021-1AA10
- Poles: 3
- Adjustable Current Range: 1.1 to 1.6 A
- Overload Trip Class: 10
- Frame Size: S0
- Mounting Type: DIN Rail
- Terminal Type: Screw
- Rated Operating Voltage: 20 to 690 V AC
- Short-Circuit Breaking Capacity: 100 kA at 690 V AC
- Surge Voltage Resistance: 6 kV
- Shock Resistance: 25g / 11 ms (IEC 60068-2-27)
Specifications
- Part Number: 3RV2021-1AA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 785901600350
- GTIN : 00785901600350
- Weight : 0.45
