Description
3RT2326-1AN20

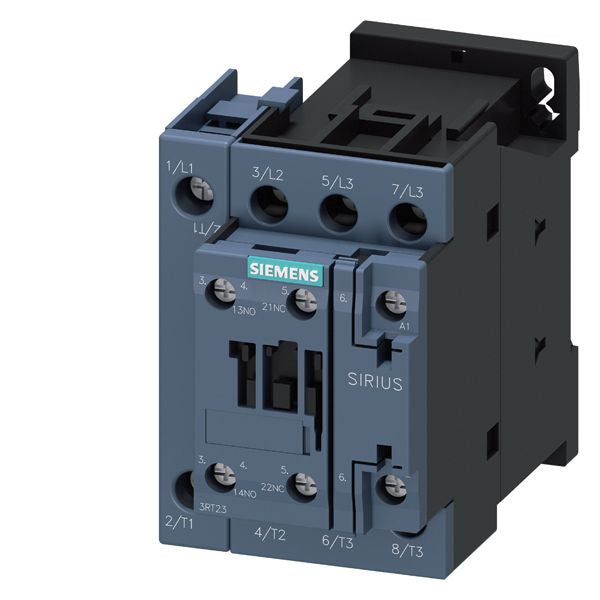

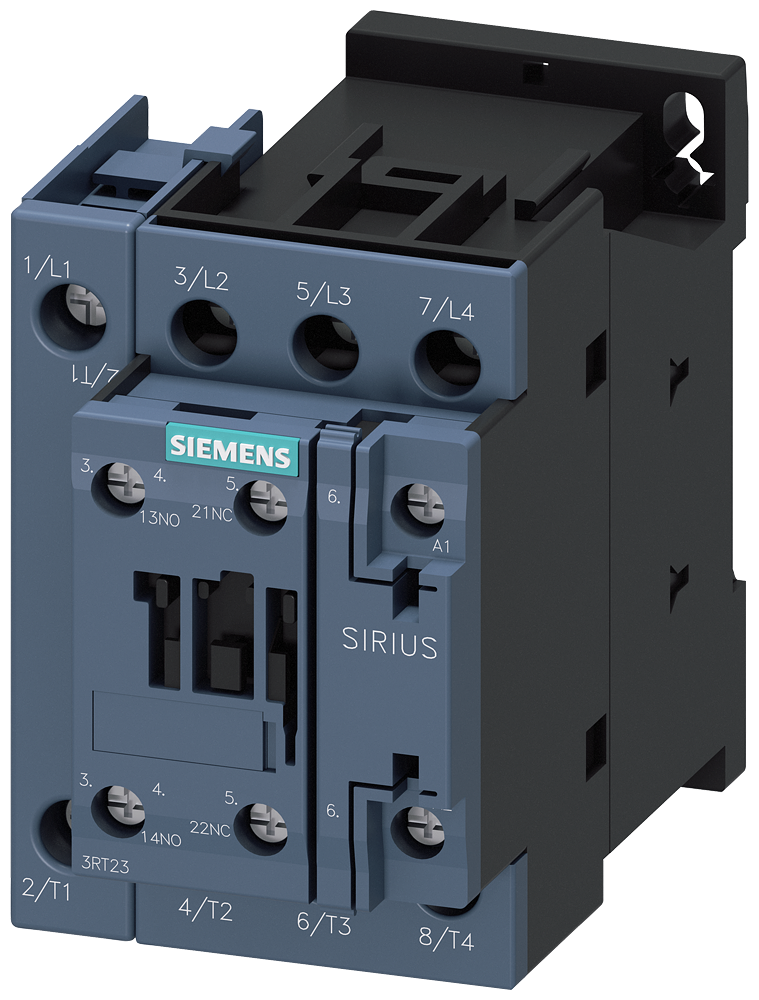

3RT2326-1AN20 is a Siemens SIRIUS power contactor designed for reliable motor control applications. This 4-pole contactor features a 220V AC coil and is rated for 40A at 400V, making it suitable for demanding industrial environments. The 3RT2326-1AN20 offers robust performance with screw terminal connections, auxiliary contacts (1 NO + 1 NC), and a compact S0 frame size. It is engineered for efficient switching and long service life in motor control circuits.
- 40A current rating
- 4-pole configuration
- 220V AC coil voltage
- 400V maximum switching voltage
- 50/60 Hz frequency
- Screw terminal termination
- Auxiliary contacts: 1 NO + 1 NC
- S0 frame size
- Operating temperature: -25°C to 60°C
- Mounting: DIN rail or panel
- AC-1 duty rating
- 4-pin connector
Specifications
- Part Number: 3RT2326-1AN20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT23
- Voltage : 600
- Amperage : 35
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 220
Product Data
- UPC : 040892960020
- GTIN : 00040892960020
- Weight : 1
