Description
3RT2326-1AF00

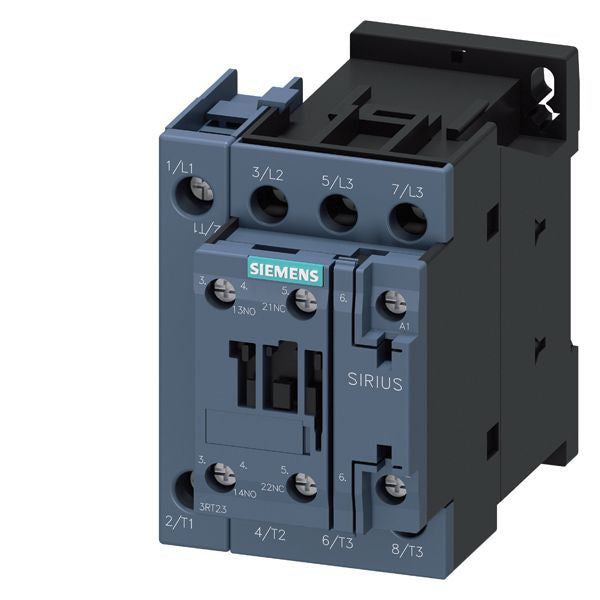

3RT2326-1AF00 is a Siemens SIRIUS 3RT23 series 4-pole contactor designed for motor control applications.
This contactor features a 40 ampere AC-1 rating at 400 volts and is equipped with a 110V AC, 50 Hz coil. It includes 4 normally open main contacts and auxiliary contacts configured as 1 normally open plus 1 normally closed. The device uses screw terminal connections and is sized S0 for compact installation. It is suitable for DIN rail or panel mounting and operates reliably up to 40 degrees Celsius.
- Key Specifications
- Amperage: 40A AC-1
- Voltage: 400V AC (operating), 110V AC coil, 50 Hz
- Poles: 4-pole
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: DIN rail or panel mount
- Termination Style: Screw terminals
- Size/Frame: S0
- Manufacturer Series: SIRIUS 3RT23
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT2326-1AF00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT23
- Voltage : 600
- Amperage : 35
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 110
Product Data
- UPC : 066264391619
- GTIN : 00662643916195
- Weight : 1
