Description
3RT2023-1BB44-3MA0

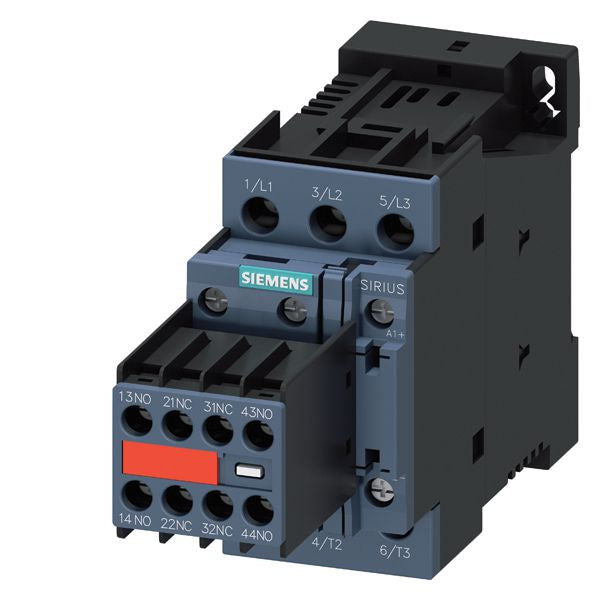

3RT2023-1BB44-3MA0 is a Siemens SIRIUS motor contactor designed for reliable motor control applications.This 3-pole power contactor features a 24 VDC coil and is rated for 9 amps with an AC-3 utilization category. It supports motor loads up to 4 kW at 400 V and includes auxiliary contacts (2 NO + 2 NC) with screw terminals. The contactor is size S0 and mounts on a 35 mm DIN rail or vertically, making it suitable for compact control panels.
- Rated current: 9 A
- Coil voltage: 24 VDC
- Number of poles: 3
- Utilization category: AC-3 / AC-3e
- Rated operational power: 4 kW at 400 V
- Auxiliary contacts: 2 NO + 2 NC
- Terminal type: Screw terminals
- Mounting: 35 mm DIN rail / vertical
- Size/frame: S0
Specifications
- Part Number: 3RT2023-1BB44-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 785901241836
- GTIN : 00785901241836
- Weight : 1
