Description
3RT2023-1BB40

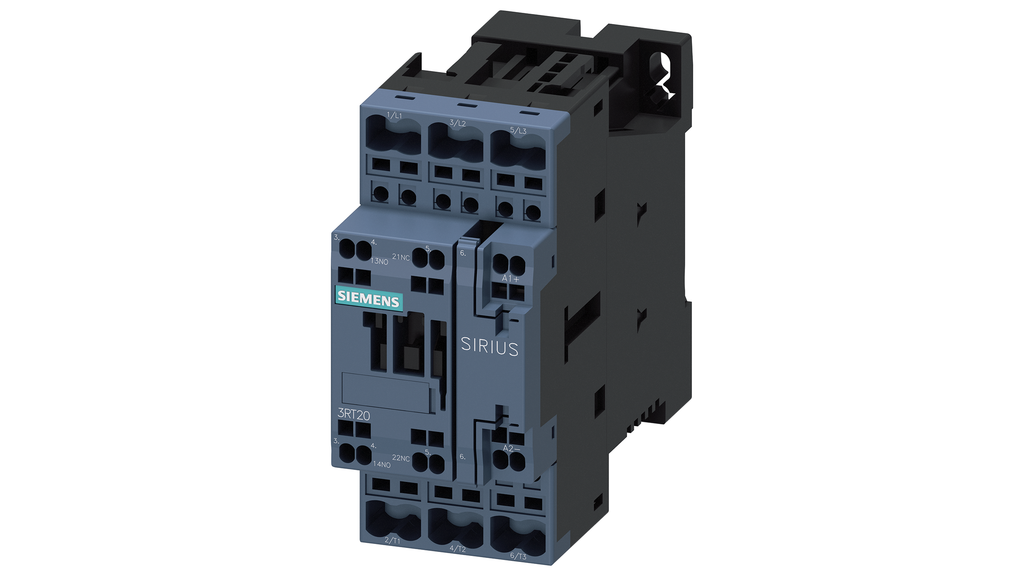

3RT2023-1BB40 is a Siemens S0 frame 3-pole motor contactor with a 24VDC coil, designed for reliable motor control in industrial applications. This IEC-rated contactor features screw terminals, a 9A current rating, and integrated 1 NO + 1 NC auxiliary contacts. It is suitable for mounting on standard 35mm DIN rail and provides robust performance for motor loads up to 5 HP at 460V.
- Manufacturer: Siemens
- Part Number: 3RT2023-1BB40
- Series/Frame: S0
- Number of Poles: 3
- Current Rating: 9A
- Coil Voltage: 24VDC
- Mounting Type: DIN rail (35mm)
- Terminal Type: Screw
- Auxiliary Contacts: 1 NO + 1 NC
- Maximum Horsepower: 5 HP @ 460V
- Compliance: IEC 60947
- Application: Motor control
Specifications
- Part Number: 3RT2023-1BB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391216
- GTIN : 00662643912166
- Weight : 1
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
