Description
3RT1275-6NP36

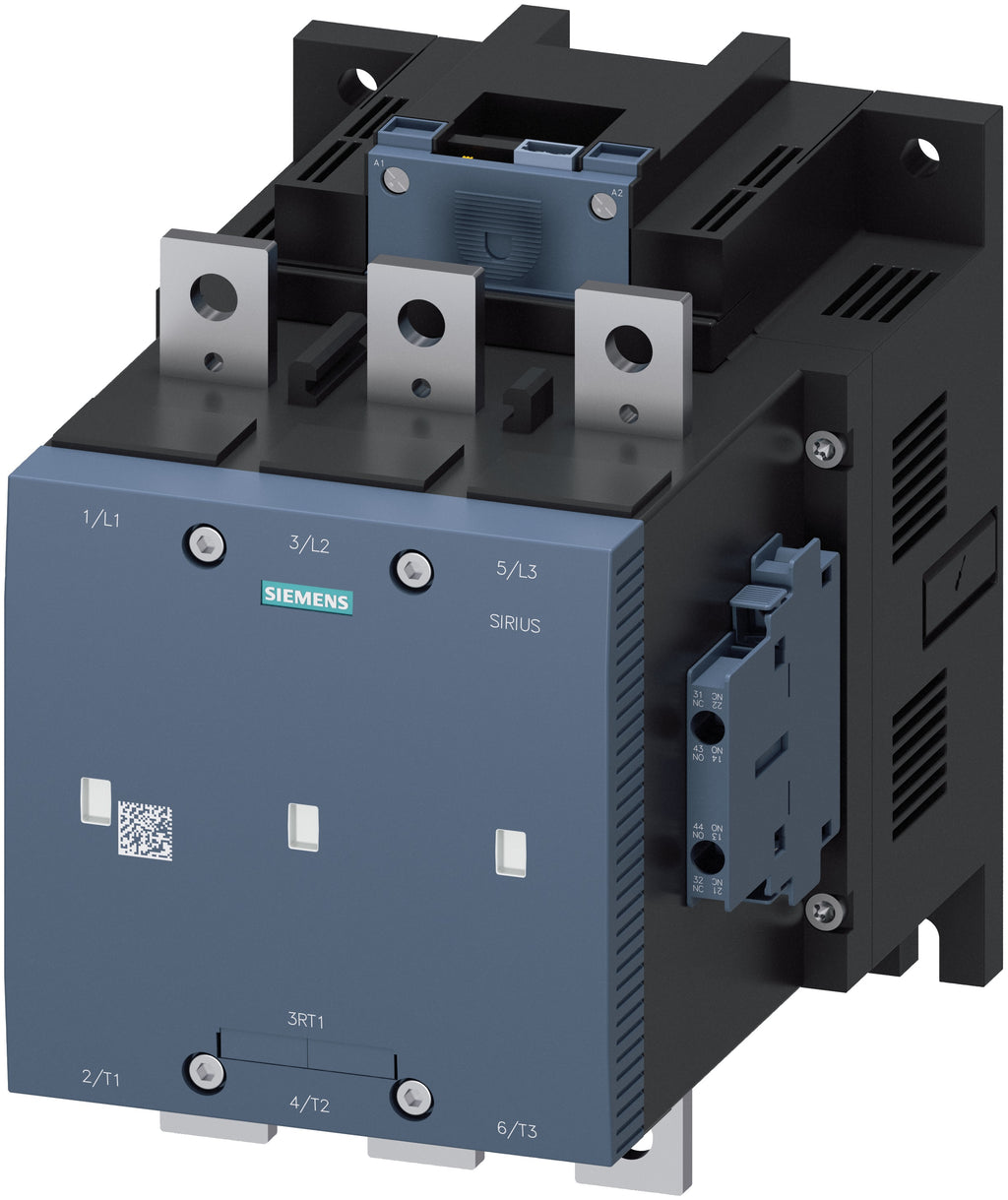

3RT1275-6NP36 is a Siemens 3RT12 series vacuum contactor designed for motor control applications with a 400 A rating and 3-pole configuration.This vacuum contactor operates at 200-277 V AC/DC coil voltage and supports AC-3e/AC-3 utilization categories. It is rated for 200 kW at 400 V and includes electronic auxiliary contacts configured as 2 NO + 2 NC. The device features a connection bar with screw terminals and is suitable for PLC input with a 24 V DC drive option.
- Series: Siemens 3RT12
- Type: Vacuum Contactor
- Current Rating: 400 A
- Poles: 3
- Coil Voltage: 200-277 V AC/DC (50-60 Hz)
- Power Rating: 200 kW at 400 V
- Auxiliary Contacts: 2 NO + 2 NC
- Connection: Bar with screw terminals
- Drive: PLC input 24 V DC optional
Specifications
- Part Number: 3RT1275-6NP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Vacuum Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 200
Product Data
- UPC : 754554773964
- GTIN : 00754554773964
- Weight : 25
