3RT1275-6AS36

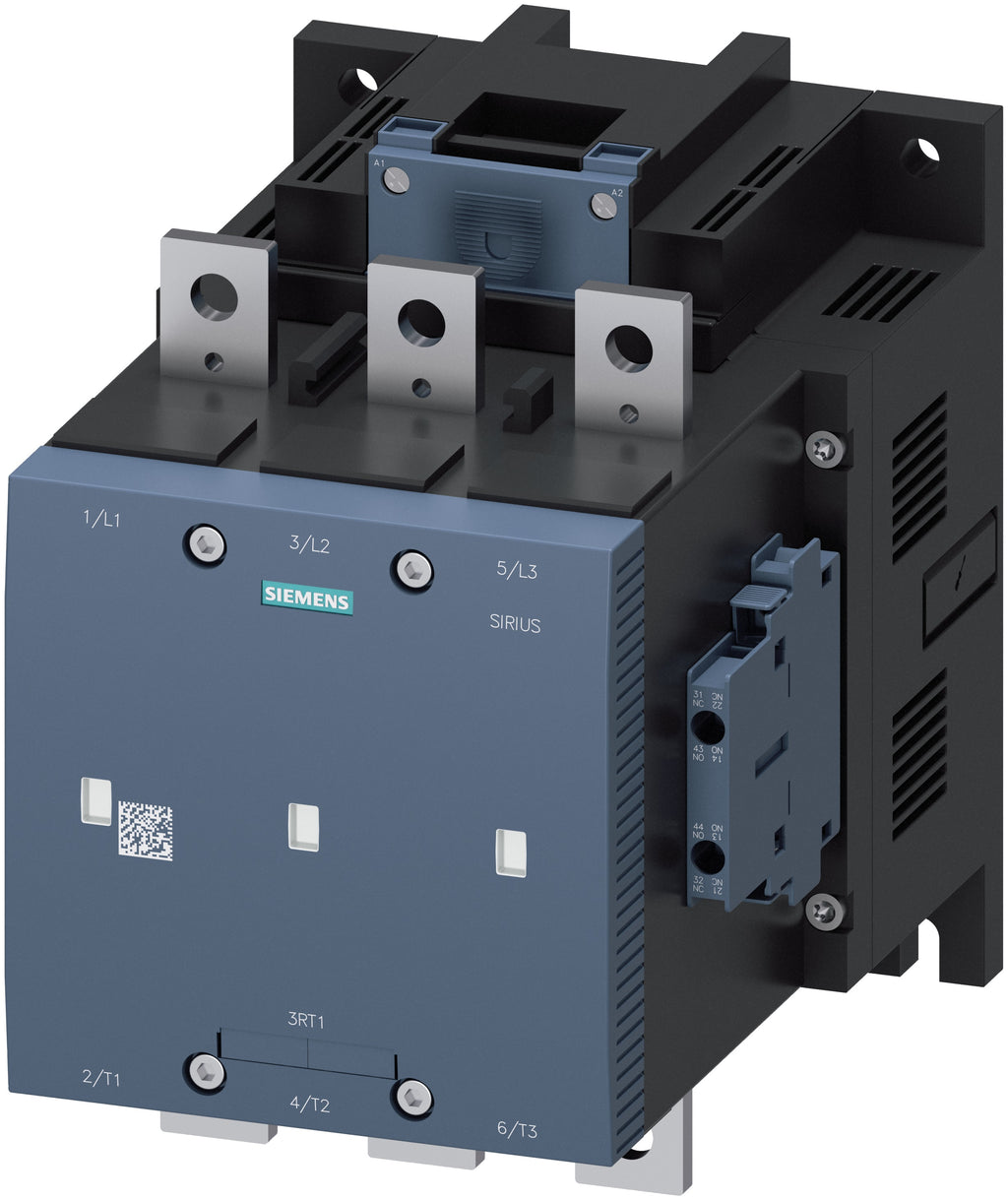

3RT1275-6AS36 is a Siemens vacuum contactor designed for heavy-duty motor control and switching applications with AC-3e/AC-3 duty ratings. This 3-pole contactor delivers 400 A switching capacity at 200 kW / 400 V AC (50-60 Hz) with coil voltage rated 500-550 V AC/DC. The unit features conventional auxiliary contacts (2 NO + 2 NC) for flexible control logic integration and is rated for 1 kV maximum switching voltage. Operating temperature range is -25 degrees C to 60 degrees C with an operate time of 100 ms, ensuring reliable performance in demanding industrial environments. The vacuum technology provides superior arc suppression and extended contact life compared to conventional contactors.
- Part Number: 3RT1275-6AS36
- Manufacturer: Siemens
- Type: Vacuum Contactor
- Poles: 3-Pole
- Amperage: 400 A
- Power Rating: 200 kW at 400 V
- Coil Voltage: 500-550 V AC/DC
- Duty Rating: AC-3e/AC-3
- Auxiliary Contacts: 2 NO + 2 NC
- Maximum Switching Voltage: 1000 VAC
- Operating Temperature: -25 degrees C to 60 degrees C
- Operate Time: 100 ms
Specifications
- Part Number: 3RT1275-6AS36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 550
- Coil Voltage Minimum : 500
Product Data
- UPC : 754554773216
- GTIN : 00754554773216
- Weight : 25
