Description
3RT1275-6AP36

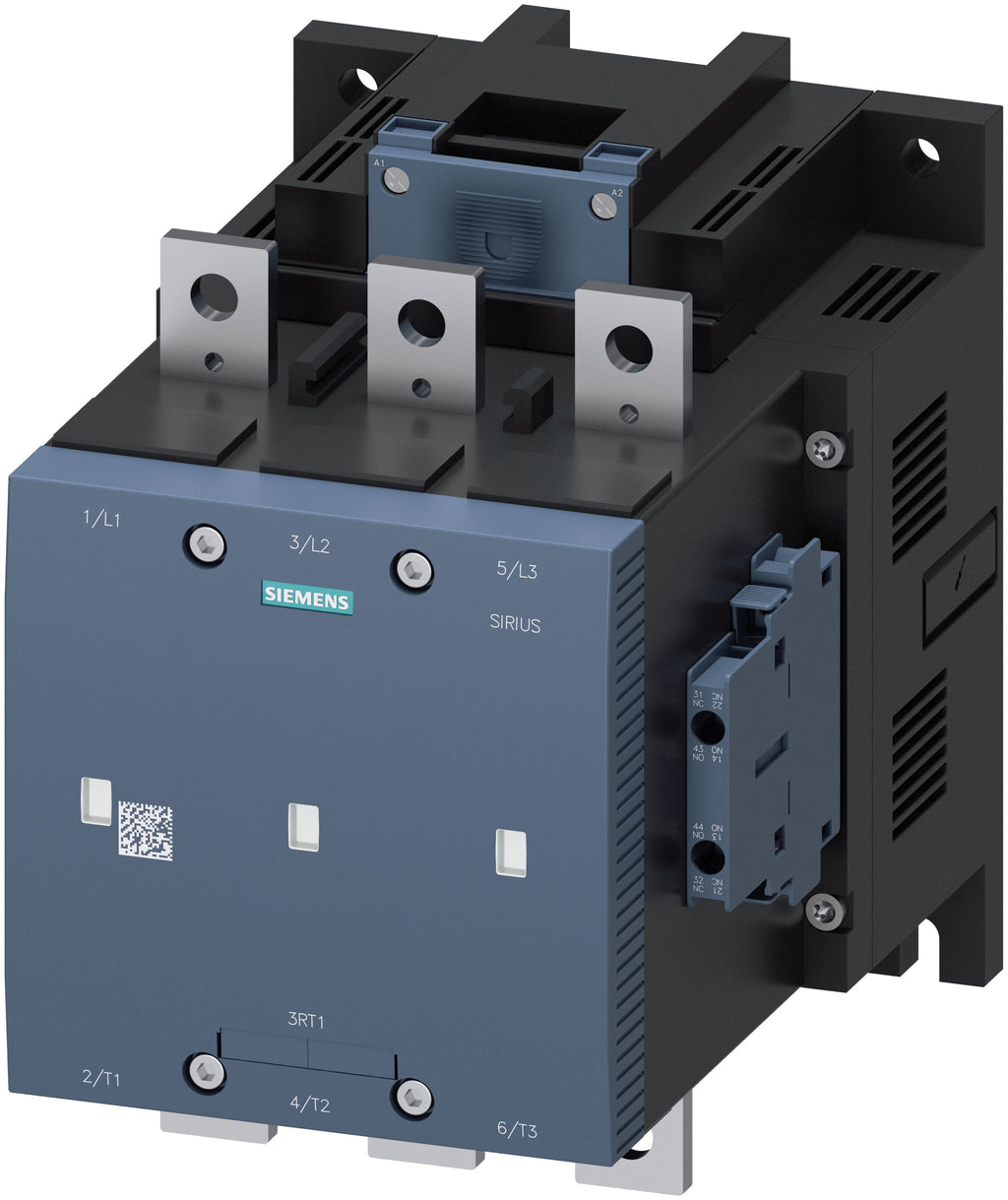

3RT1275-6AP36 is a Siemens 3-pole vacuum contactor designed for motor control applications with a 400A rating and 220-240V coil voltage.3RT1275-6AP36 features a robust vacuum contactor mechanism suitable for AC-3e/AC-3 utilization categories, supporting motor loads up to 200 kW at 400 V. It includes conventional auxiliary contacts (2 NO + 2 NC) and is sized S12 for compact installation. The contactor supports busbar and screw terminal connections with vertical screw fixing mounting.
- Rated operational current: 400 A
- Number of poles: 3
- Rated operational voltage: up to 600 V
- Coil voltage: 220-240 V AC/DC, 50-60 Hz
- Motor power rating: 200 kW at 400 V
- Auxiliary contacts: 2 NO + 2 NC
- Mounting type: Screw fixing, vertical mount
- Connection type: Screw terminal and busbar
- Size/frame: S12
- Utilization category: AC-3e/AC-3
Specifications
- Part Number: 3RT1275-6AP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Vacuum Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
Product Data
- UPC : 754554773179
- GTIN : 00754554773179
- Weight : 25
