Description
3RT1264-6AV36

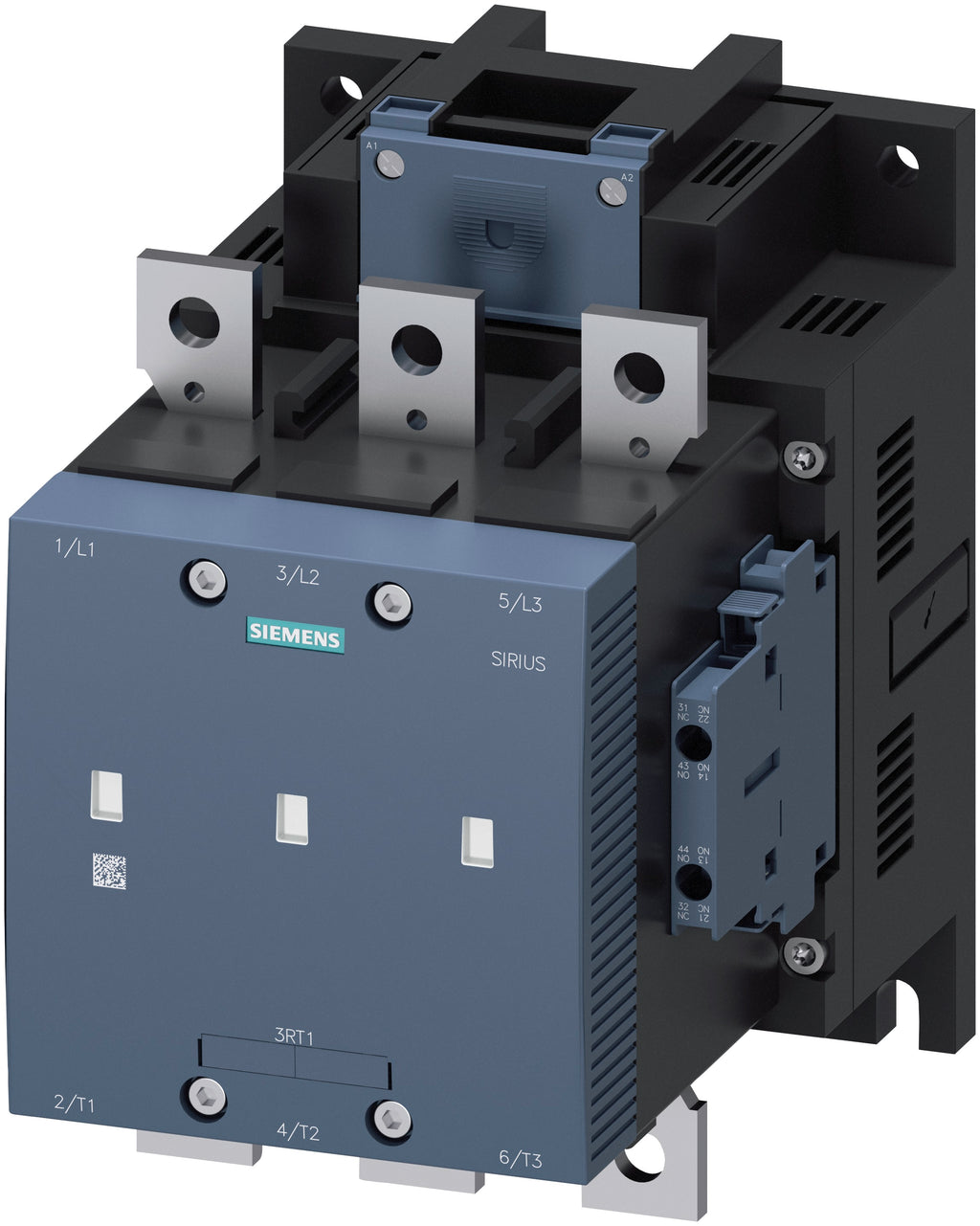

3RT1264-6AV36 is a Siemens SIRIUS 3RT12 Series vacuum contactor designed for motor control applications.This vacuum contactor features a 3-pole configuration with a rated current of 225 amperes and is suitable for AC-3 duty at 110 kW / 400 V. It operates with a control supply voltage range of 380-420 V AC (50-60 Hz) and DC, supporting both AC and DC drives. The contactor includes conventional auxiliary contacts with 2 normally open (NO) and 2 normally closed (NC) contacts and uses conventional bar/screw terminal connections. It is sized S10 within the SIRIUS 3RT12 product line.
- Key Specifications
- Manufacturer: Siemens
- Series: SIRIUS 3RT12
- Type: Vacuum Contactor
- Poles: 3
- Rated Current: 225 A
- Rated Voltage: 380-420 V AC/DC
- Power Rating: 110 kW at 400 V (AC-3)
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: Conventional bar/screw terminal
- Size: S10
- Part Number: 3RT1264-6AV36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Vacuum Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 420
- Coil Voltage Minimum : 380
- UPC : 075455477289
- GTIN : 00754554772899
- Weight : 17
