Description

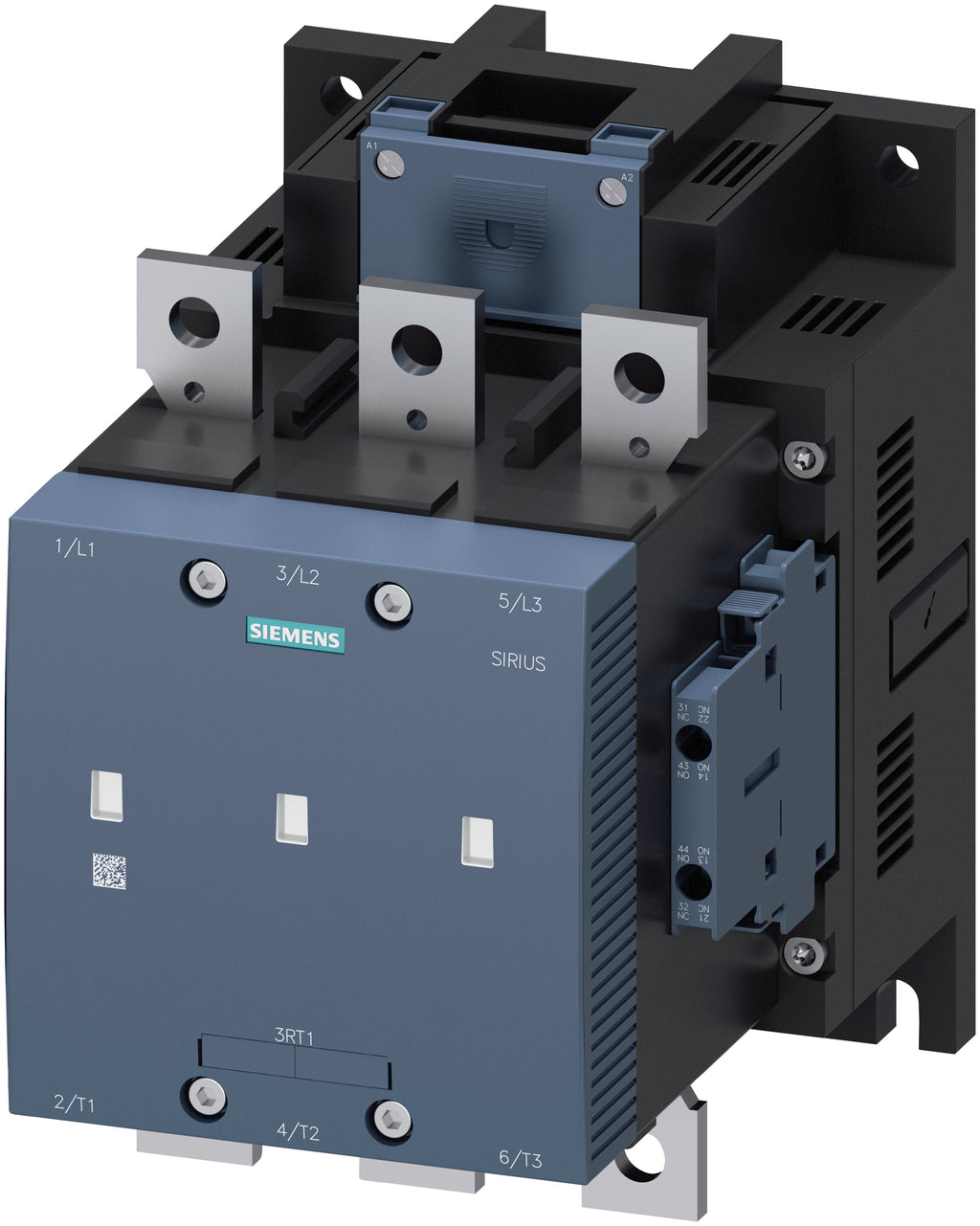

3RT1264-6AR36
3RT1264-6AR36 is a Siemens SIRIUS 3RT12 vacuum contactor designed for reliable motor control applications. This 3-pole device is rated for 225A at 440-480V and features a conventional auxiliary contact configuration of 2 NO + 2 NC. It is suitable for switching motorized loads and is built to meet demanding industrial requirements. The 3RT1264-6AR36 vacuum contactor is engineered for efficient and safe operation in motor control circuits. It supports both AC and DC control voltages and is compatible with a wide range of industrial environments. The device is designed for easy integration into control panels and offers robust performance for continuous duty cycles.
- Part Number: 3RT1264-6AR36
- Manufacturer: Siemens
- Series: SIRIUS 3RT12
- Rated Current: 225A
- Rated Voltage: 440-480V AC (50-60 Hz) / DC
- Number of Poles: 3
- Main Circuit: Vacuum Contactor
- Application: Motor Control
- Auxiliary Contacts: 2 NO + 2 NC
- Power Rating: 110 kW at 400V
- Mounting Type: Panel Mount
- Standards: IE3 / IE4 ready
Specifications
- Part Number: 3RT1264-6AR36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Vacuum Contactor
- Family : Sirius
- Type : 3RT12
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
Product Data
- UPC : 075455477290
- GTIN : 00754554772905
- Weight : 17
