Description

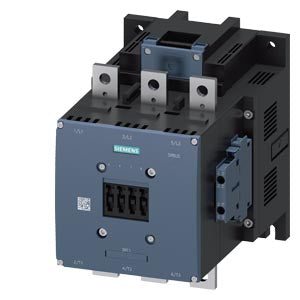

3RT1076-6AF36
3RT1076-6AF36 is a 3-pole IEC rated power contactor from Siemens SIRIUS series designed for motor control applications. This contactor is rated for 500 amperes AC-3 and 610 amperes AC-1, with horsepower ratings of 200 HP at 230V and 400 HP at 460V three-phase. The unit features a 110 to 127 volt AC/DC coil voltage operating at 50-60 Hz and includes 2 normally open and 2 normally closed auxiliary contacts for signaling and control functions. The contactor is frame size S12 and conforms to IEC 60947-4-1 standards for industrial motor control.
- Amperage Rating: 500A AC-3, 610A AC-1
- Coil Voltage: 110-127V AC/DC 50-60Hz
- Horsepower: 200 HP @ 230V, 400 HP @ 460V 3-Phase
- Poles: 3-Pole Configuration
- Frame Size: S12
- Auxiliary Contacts: 2 NO + 2 NC
- Terminal Type: Screw Connection (Bolt-on Lugs)
- Mounting: Vertical Mount with Base Panel Mounting
- Power Rating: 250 kW at 400V
- Standards: IEC 60947-4-1 Compliant
- Coil Power Consumption: 830 VA (pick-up), 9.2 VA (holding) at 50 Hz AC
- Shock Resistance: 8.5g / 5ms, 4.2g / 10ms
Specifications
- Part Number: 3RT1076-6AF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 075455476672
- GTIN : 00754554766720
- Weight : 25
