Description

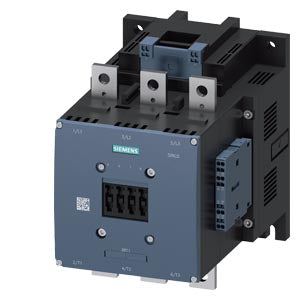

3RT1076-2AF36
3RT1076-2AF36 is a heavy-duty power contactor from Siemens engineered for high-power motor control and switching applications. This AC-3e/AC-3 rated contactor handles currents up to 500 A and power ratings of 250 kW at 400 V AC (50-60 Hz), making it ideal for demanding industrial motor control systems. The contactor features a size S12 frame with 3-pole main contacts and includes 2 NO (normally open) plus 2 NC (normally closed) auxiliary contacts for flexible control logic integration. The control supply voltage is rated at 110-127 V DC or AC (50-60 Hz), providing compatibility with standard industrial control systems. Busbar connections ensure reliable power distribution in panel-mounted installations.
- Rated Current: 500 A
- Power Rating: 250 kW
- Main Supply Voltage: 400 V AC (50-60 Hz)
- Control Supply Voltage: 110-127 V DC or AC
- Duty Rating: AC-3e/AC-3
- Poles: 3-pole
- Auxiliary Contacts: 2 NO + 2 NC
- Frame Size: S12
- Series: SIRIUS 3RT1
- Main Circuit: Conventional
- Connection Type: Busbar connections
Specifications
- Part Number: 3RT1076-2AF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 004089281629
- GTIN : 00040892816297
- Weight : 25
