Description

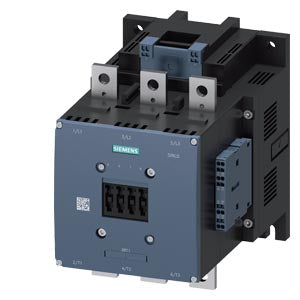

3RT1076-2AM36
3RT1076-2AM36 is a Siemens SIRIUS power contactor designed for three-phase motor control applications. This AC-3 rated contactor delivers reliable performance in industrial motor switching and control circuits. 3RT1076-2AM36 features a compact S12 frame size with 3-pole configuration and 2 NO + 2 NC auxiliary contacts for flexible control logic integration. The contactor is rated for 500A at AC-3 duty with 250 kW power handling at 400V AC (50-60 Hz). Control supply voltage options include DC 200-220V or AC 200-220V at 50-60 Hz, providing flexibility for various control system designs. Busbar connections ensure secure and reliable main circuit termination. This contactor conforms to IEC 60947-4-1 standards and is suitable for demanding industrial environments requiring robust motor control.
- Rated Current: 500A AC-3
- Power Rating: 250 kW at 400V AC
- Poles: 3-pole
- Auxiliary Contacts: 2 NO + 2 NC
- Control Supply Voltage: DC 200-220V or AC 200-220V (50-60 Hz)
- Frame Size: S12
- Main Circuit Voltage: 1 kV
- Duty Category: AC-3e/AC-3
- Standards: IEC 60947-4-1
- Connection Type: Busbar connections
Specifications
- Part Number: 3RT1076-2AM36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 220
- Coil Voltage Minimum : 200
Product Data
- Weight : 25
