Description

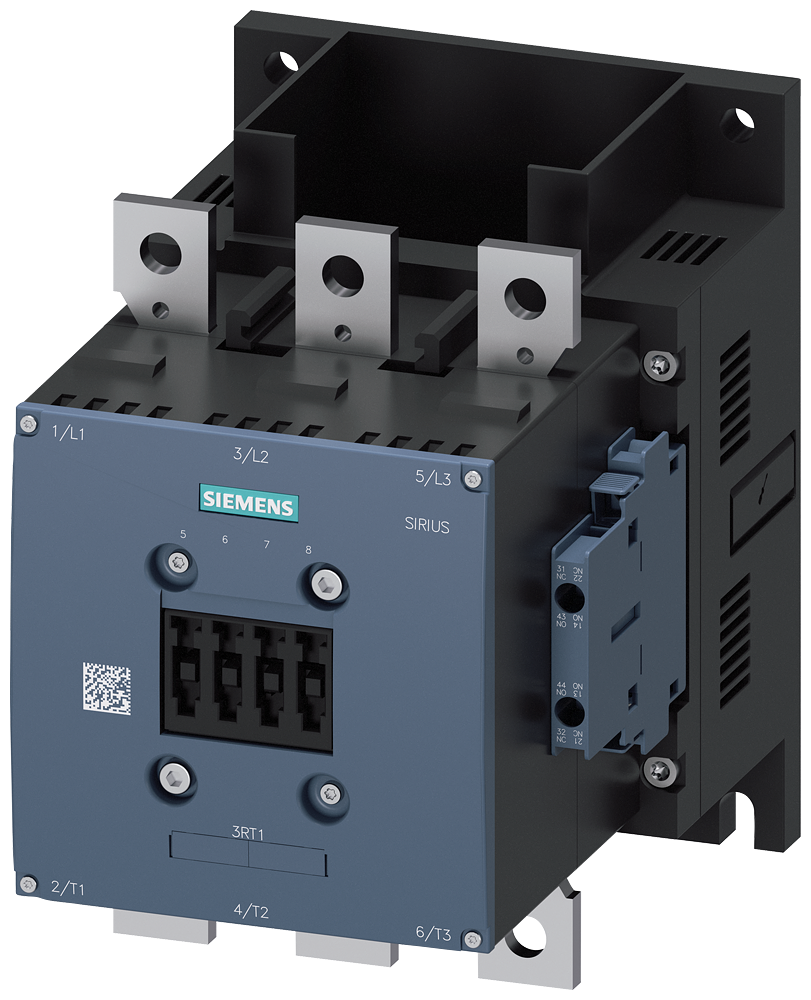

3RT1064-6NF36
3RT1064-6NF36 is a Siemens SIRIUS power contactor designed for reliable motor control and switching applications in industrial environments. This 3-pole IEC-rated contactor delivers 225 A switching capacity at 110 kW / 400 V AC (50-60 Hz) with DC coil operation at 96-127 V AC/DC. The contactor features a compact Size S10 frame with screw terminal and busbar connection options, making it suitable for both vertical and horizontal mounting configurations. It includes 2 NO (normally open) and 2 NC (normally closed) auxiliary contacts for enhanced control flexibility and integration with PLC systems via 24 V DC input. The electronic drive mechanism ensures precise and repeatable switching performance for AC-3e/AC-3 duty cycle applications.
- Rated Current: 225 A
- Rated Power: 110 kW at 400 V
- Supply Voltage: 400 V AC (50-60 Hz)
- Coil Voltage: 96-127 V AC/DC
- Poles: 3-pole
- Auxiliary Contacts: 2 NO + 2 NC
- Frame Size: S10
- Connection Type: Screw Terminal / Busbar
- Mounting: Screw Fixing / Vertical Mount
- Drive Type: Electronic
- Duty Cycle: AC-3e/AC-3
- PLC Input: 24 V DC
Specifications
- Part Number: 3RT1064-6NF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 754554773711
- GTIN : 00754554773711
- Weight : 16
