Description
3RT1064-2AV36

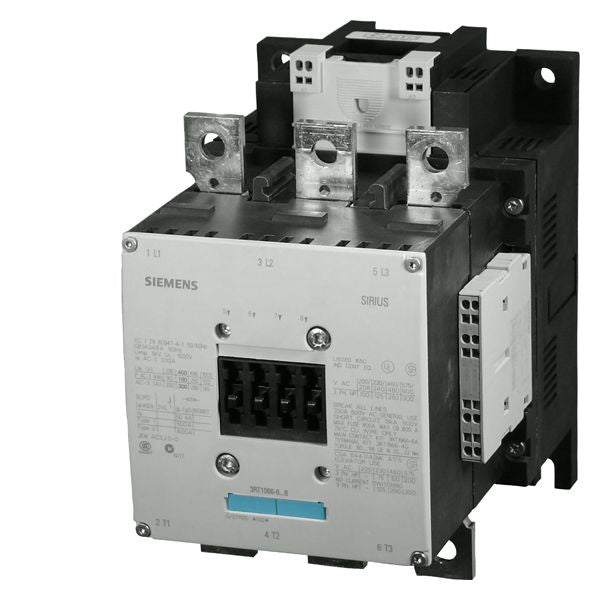

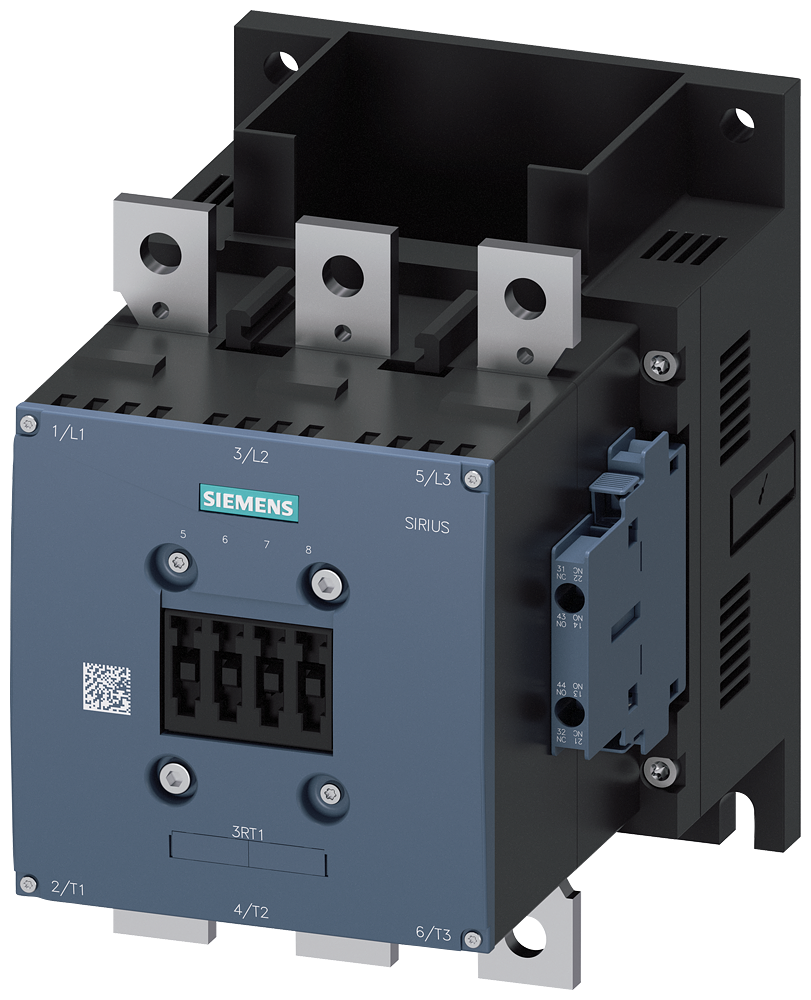

3RT1064-2AV36 is a Siemens SIRIUS power contactor designed for reliable motor control and switching applications in industrial environments. This 3-pole contactor delivers 225A rated current at 400V AC (50-60 Hz) with a maximum power rating of 110 kW, making it suitable for medium to large motor control circuits. The unit features a 380-420V AC/DC control coil for flexible voltage compatibility and includes 2 NO (normally open) and 2 NC (normally closed) auxiliary contacts for enhanced control logic integration. The contactor employs a conventional drive mechanism with busbar main circuit connections and spring terminal options for secure installation. Size S10 frame provides compact integration into control panels and motor starter assemblies.
- Rated Current: 225A
- Poles: 3-Pole
- Main Voltage: 400V AC (50-60 Hz)
- Control Coil Voltage: 380-420V AC/DC
- Power Rating: 110 kW
- Auxiliary Contacts: 2 NO + 2 NC
- Frame Size: S10
- Connection Type: Busbar and Spring Terminal
- Mounting: Screw Fixing / Vertical Mount
- Application: AC-3e/AC-3 Motor Control
Specifications
- Part Number: 3RT1064-2AV36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 420
- Coil Voltage Minimum : 380
Product Data
- UPC : 004089265216
- GTIN : 00040892652161
- Weight : 16
