Description

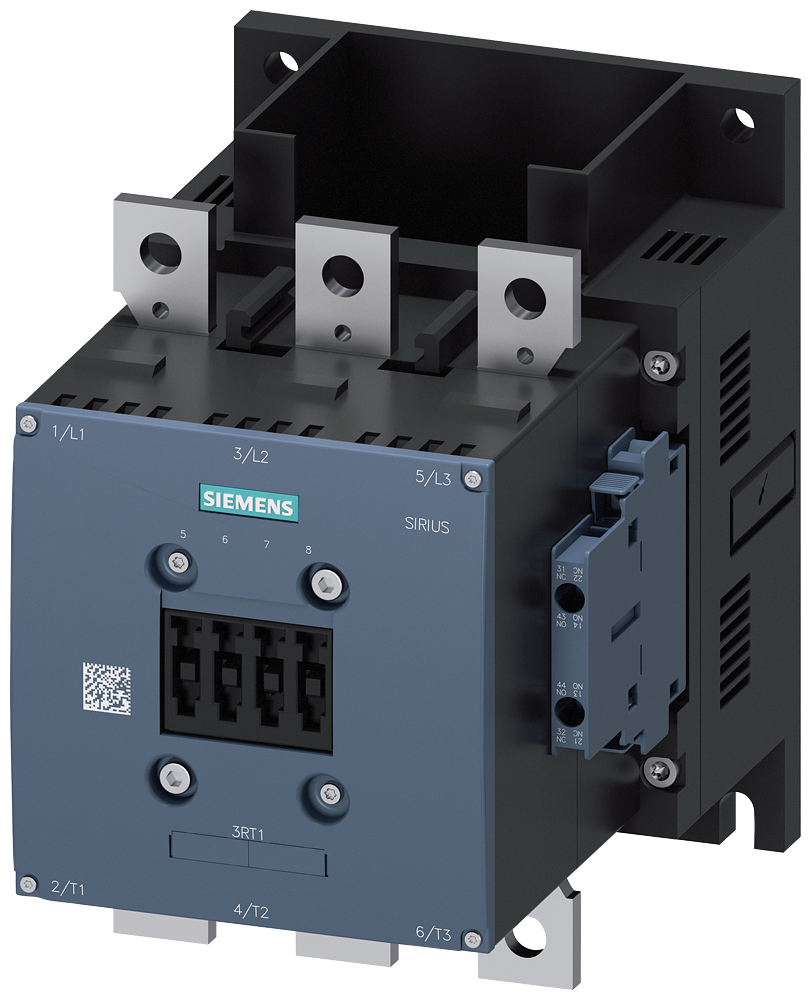

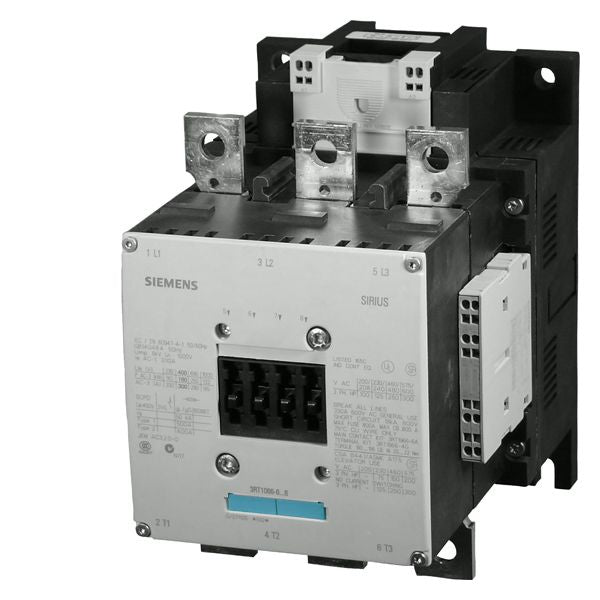

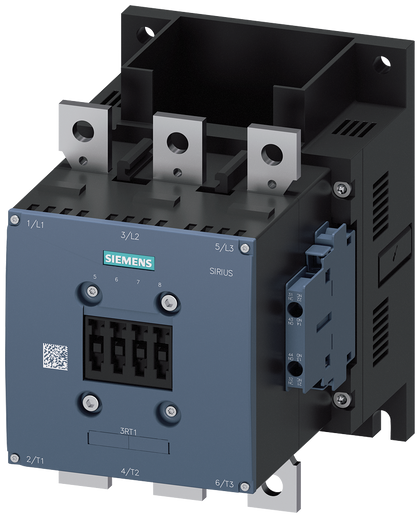

3RT1064-2AB36
3RT1064-2AB36 is a Siemens SIRIUS power contactor designed for high-power motor control applications.This 3-pole contactor is rated for 225 amps and supports motor loads up to 110 kW at 400 V AC-3 operation. It features a size S10 frame, screw fixing with vertical mounting, and spring terminal/busbar connections. The coil operates at 23 to 26 VAC/VDC at 50/60 Hz, suitable for flexible control voltage applications. This contactor is engineered for reliable switching in demanding industrial environments.
- Amperage: 225 A
- Poles: 3
- Rated motor power: 110 kW at 400 V
- Frame size: S10
- Coil voltage: 23 to 26 VAC/VDC, 50/60 Hz
- Mounting type: Screw fixing, vertical mount
- Terminal type: Spring terminal and busbar
- Operation type: AC-3 motor switching
Specifications
- Part Number: 3RT1064-2AB36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 26
- Coil Voltage Minimum : 23
Product Data
- UPC : 786679250358
- GTIN : 00786679250358
- Weight : 16
