3RT1064-6LA06 - Siemens 3RT10 Sirius 3-Pole Power Contactor 225A 600V AC-3 110kW

3RT1064-6LA06

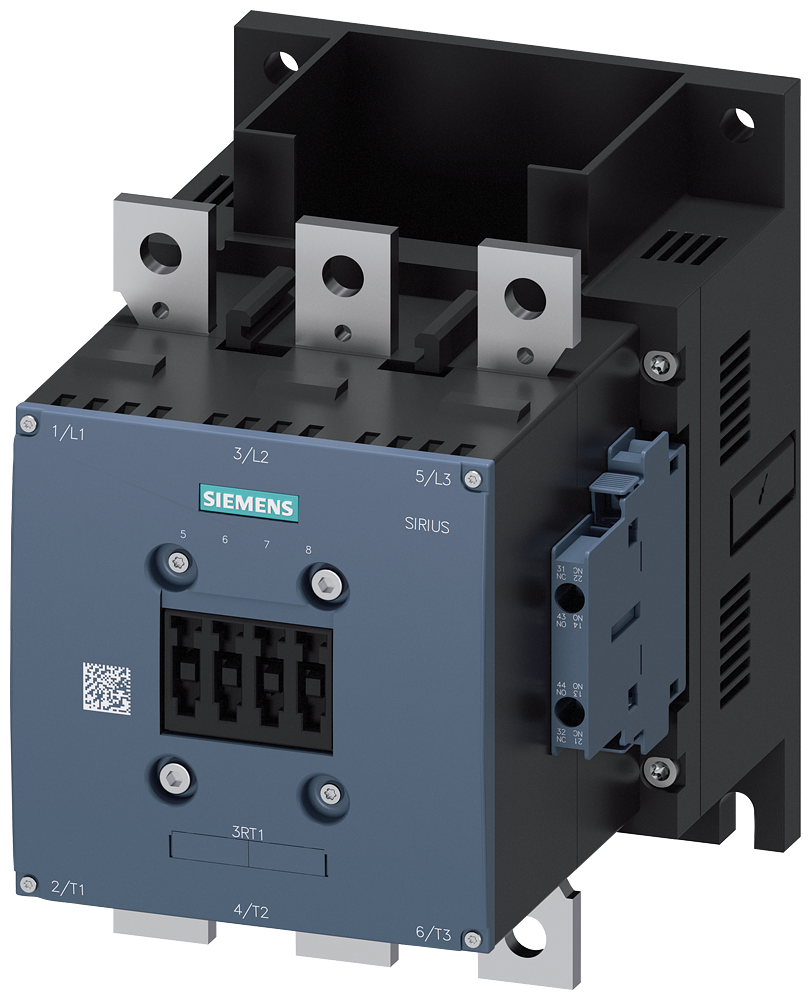

3RT1064-6LA06 is a Siemens Sirius 3-pole power contactor designed for motor control applications with a 225 ampere rating and 600 volt AC-3 utilization voltage.

This contactor supports a power rating of 110 kW at 400 V and is suitable for high-power motor switching without an operating coil included. It features auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC) contacts. The device is part of the Siemens 3RT10 series and is designed for busbar connection in the main circuit. It offers a surge voltage resistance of 8 kV in the main circuit and 6 kV in the auxiliary circuit, with a maximum permissible voltage of 690 V for protective separation between coil and main contacts. The contactor is rated for AC-3 utilization with a maximum current of 225 A and supports motor power up to 150 hp at 460/480 V and 200 hp at 575/600 V.

• Manufacturer: Siemens
• Series: Sirius 3RT10
• Poles: 3
• Rated Current: 225 A (AC-3)
• Rated Voltage: 600 V AC
• Motor Power: 110 kW at 400 V
• Auxiliary Contacts: 2 NO + 2 NC
• Surge Voltage Resistance: 8 kV main circuit, 6 kV auxiliary circuit
• Mounting: Busbar connection
• Power Rating: 150 hp at 460/480 V, 200 hp at 575/600 V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT1064-6LA06
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT10
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3

Product Data

• GTIN : 00195125360303
• Weight : 17
