Description
3RT1064-2AP36

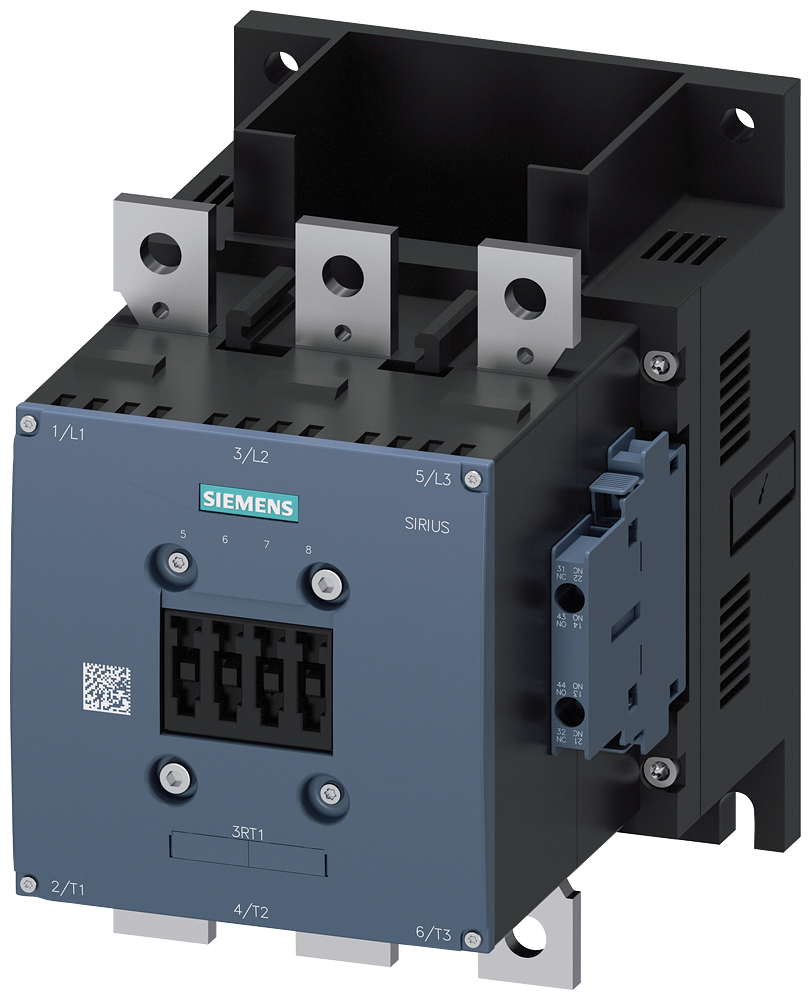

3RT1064-2AP36 is a Siemens SIRIUS power contactor designed for reliable motor control applications with a rated capacity of 110 kW at 400 V AC. This 3-pole contactor delivers a maximum operational current of 225 A and is suitable for AC-3/AC-3e duty cycle applications at 50-60 Hz frequencies. The unit features a compact Size S10 frame with conventional drive mechanism and includes 2 NO (normally open) plus 2 NC (normally closed) auxiliary contacts for flexible control logic integration. The contactor operates with a DC coil rated at 220-240 V UC and supports both screw fixing and spring terminal/busbar connection options for versatile installation configurations.
- Part Number: 3RT1064-2AP36
- Manufacturer: Siemens
- Series: SIRIUS 3RT1
- Frame Size: S10
- Poles: 3-Pole
- Rated Current: 225 A
- Power Rating: 110 kW at 400 V AC
- Voltage: 400 V AC (50-60 Hz)
- Coil Voltage: 220-240 V DC
- Auxiliary Contacts: 2 NO + 2 NC
- Duty Cycle: AC-3/AC-3e
- Connection Type: Screw Fixing / Spring Terminal / Busbar
Specifications
- Part Number: 3RT1064-2AP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
Product Data
- UPC : 754554957005
- Weight : 16
