Description
3RT1054-3NP36

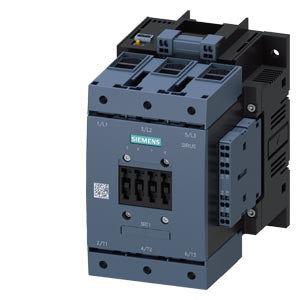

3RT1054-3NP36 is a Siemens SIRIUS power contactor designed for AC-3e/AC-3 motor control applications with a rated capacity of 115 A and 55 kW at 400 V. This 3-pole contactor operates on AC (50-60 Hz) and DC supply with a control voltage range of 200-277 V AC/DC, making it suitable for heavy-duty industrial automation and motor starting applications. The unit features auxiliary contacts configured as 2 NO + 2 NC (2 normally open and 2 normally closed) for flexible control logic integration. Box terminal connections provide secure and reliable electrical termination. The contactor is classified as Size S6 and includes optional PLC input capability at 24 V DC for advanced control system integration.
- Amperage: 115 A
- Power Rating: 55 kW
- Voltage: 400 V AC (50-60 Hz) and DC operation
- Control Voltage: 200-277 V AC/DC
- Poles: 3-pole
- Auxiliary Contacts: 2 NO + 2 NC
- Duty: AC-3e/AC-3
- Terminal Type: Box terminals
- Frame Size: S6
- Optional Features: PLC input at 24 V DC
Specifications
- Part Number: 3RT1054-3NP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 200
Product Data
- UPC : 019512548089
- GTIN : 00195125480896
- Weight : 8
