Description
3RT1054-1AB36

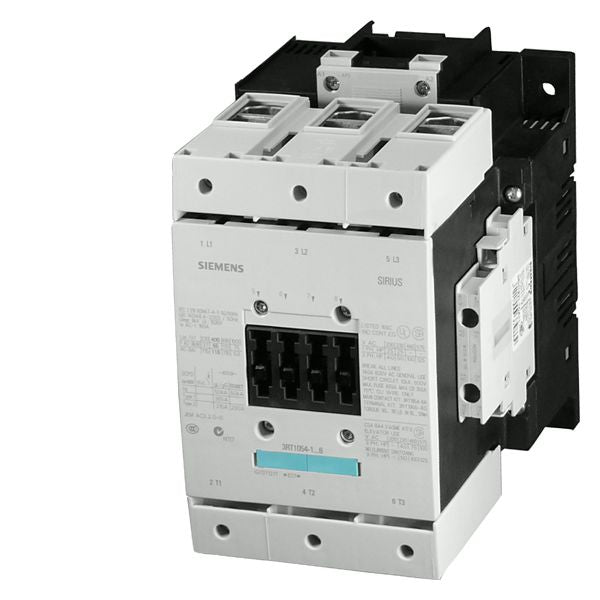

3RT1054-1AB36 is a Siemens 3-pole motor contactor designed for reliable motor control applications.This contactor features a 115 ampere rating with a power capacity of 55 kW at 400 V AC, suitable for AC-3e/AC-3 utilization categories. It operates with a coil voltage range of 23 to 26 VAC/VDC at 50/60 Hz. The device includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts and uses screw terminals for secure wiring connections. It is built on the S6 frame size and designed for fixed/threaded vertical mounting.
- Key Specifications
- Amperage: 115 A
- Voltage Rating: 400 V AC
- Power Rating: 55 kW at 400 V
- Coil Voltage: 23-26 VAC/VDC, 50/60 Hz
- Poles: 3
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Type: Fixed/Threaded, Vertical Mount
- Terminal Type: Screw Terminal
- Frame Size: S6
- Part Number: 3RT1054-1AB36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 26
- Coil Voltage Minimum : 23
- UPC : 75455494237
- GTIN : 00754554942377
- Weight : 8 lb
