Description
3RT1054-1AD36

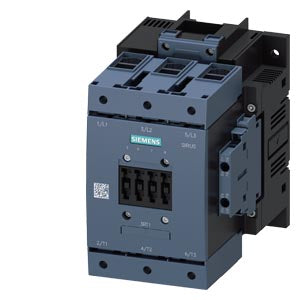

3RT1054-1AD36 is a Siemens SIRIUS 3-pole power contactor designed for motor control applications requiring reliable switching up to 115A at 600V. This contactor is suitable for AC-3e/AC-3 duty and features a robust design for demanding industrial environments. The Siemens 3RT1054-1AD36 contactor is engineered for efficient motor starting and control, with a main circuit rated for 115A and 55kW at 400V. It supports both AC (50-60 Hz) and DC coil operation, with a coil voltage range of 42-48V. The device includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing flexibility for control circuit integration. Its compact size and screw terminal design facilitate easy installation and maintenance.
- 115A rated current (AC-3e/AC-3)
- 600V maximum voltage
- 3-pole configuration
- 2 NO + 2 NC auxiliary contacts
- AC (50-60 Hz) / DC coil operation
- Coil voltage: 42-48V
- 55kW at 400V
- Screw terminal mounting
- Conventional main circuit
- Operating temperature: -25 to 60°C
- IP00/IP20 enclosure
- 10,000,000 operating cycles
Specifications
- Part Number: 3RT1054-1AD36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 48
- Coil Voltage Minimum : 42
Product Data
- Weight : 8
