Description

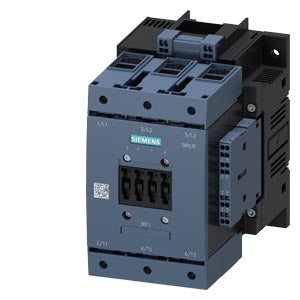

3RT1054-3AR36
3RT1054-3AR36 is a Siemens 3-pole motor contactor designed for heavy-duty motor control applications.This contactor supports a rated operational current of 115A and is suitable for 3-phase motors up to 600V AC. It features a coil voltage of 440V AC and is capable of switching loads up to 55 kW at 400V AC. The device includes auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC) contacts for additional control circuit flexibility. It is built to operate reliably in AC and DC control circuits with a frequency range of 40-60 Hz.
- Rated operational current: 115A
- Voltage rating: 600V AC
- Power rating: 55 kW at 400V AC
- Number of poles: 3
- Coil voltage: 440V AC
- Auxiliary contacts: 2 NO + 2 NC
- Suitable for 3-phase motor control
- Frequency range: 40-60 Hz
Specifications
- Part Number: 3RT1054-3AR36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
Product Data
- Weight : 8
